SVC-HD8820-DSY-SN7310 20x Optical Zoom HD-SDI DVI-I Output 1080p@60fps HOV 59.5 degree video conference system camera
HD Video Conference Camera
Model No.:SVC-HD8820-DSY-SN7310
20x Optical Zoom |HD-SDI DVI-I Output | 1080p@60fps | HOV 59.5 degree

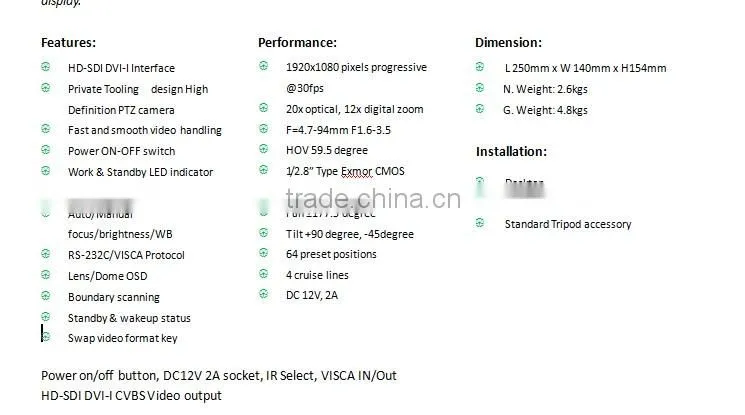

2.38 Megapixel Full HD Camera experience 1080P@60 vivid images, equipped with original SONY brand which is 20x optical zoom lens, enhancing your video conferencing, distance learning, training meeting or courtrooms with natural and smooth video images. The HD-SDI, DVI-I CVBS Video output available at model SVC-HD8820-DSY multi-interface only, and DVI-I connector is suited for DVI-D analog component which provide high-quality video display.
Multi-interface rear image
Power on/off button, DC12V 2A socket, IR Select, VISCA IN/Out
HD-SDI DVI-I CVBS Video output
IR R/C
Specification sheet
Model No. |
SVC-HD8820-DSY-SN7310 |
|
Image |
Image Sensor |
1/2.8" Type Exmor CMOS |
Effective Pix |
2.38 Megapixel |
|
Min. Illumination |
0.4Lux at F1.6 |
|
White balance |
Auto/Manual |
|
Gain control |
Auto/Manual |
|
Backlight compensation |
On/Off |
|
Shutter speed |
1/1 - 1/10,000S |
|
S/N ratio |
>50db |
|
Lens |
Focus |
f=4.7-94mm F1.6-3.5 |
Iris |
Auto/Manual |
|
Lens |
20 Optical x 12 digital zoom |
|
Horizontal view angle |
59.5-3.3 degree |
|
Video output |
HD-SDI DVI-I CVBS |
|
Signal system |
1080P@60,1080P@50,1080p@30,1080p@25,1080i@60,1080i@50 |
|
Control terminal |
EIA/RS232C,EIA/RS485(Bidirectional) |
|
Control Protocol |
VISCA,PELCO-D |
|
baud rate |
9600/38400bps |
|
patrol line |
4 cruise sequence |
|
preset position |
64 preset positions |
|
Speed Match |
Pan/Tilt movement speed depends on camera module zoom in/out |
|
OSD Menu |
Access to OSD Menu and adjust camera module parameters |
|
Image auto flp |
Support Horizontal/Vertical image flip |
|
Pan movement speed |
1-200°/Second |
|
Tilt movement speed |
1-150°/Second |
|
Pan movement range |
Pan: 0-355° |
|
Tilt movement range |
Up: 90°, Down: 45° |
|
Pan scanning automatically |
Support Pan scanning automatically |
|
Boundary scanning |
0-355°(programmable) |
|
Remote controller |
IR Wireless Remote controller P/T/Z |
|
Power supply |
DC12V,2A |
|
Work Temperature |
0-50℃ |
|
Humidity |
0-95%RH |
|
LxWxH |
250mm x 140mm x 154mm |
|
Weight |
1380g |
|
Accessories kits in package:
1x SVC-HD8820-DSY-SN7310 Video Camera
1x DC 12V/2A Power Adaptor
1x User’s manual
1x Installation brackets & screws
1x IR Remote Controller
| SMTSEC Video conference camera FAQ | ||
| Symptom | Cause | Remedy |
| The power of the camera is not turned on. | The supplied AC power adaptor is not connected to the DC IN 12V jack firmly, or the AC power cord is not inserted firmly into the AC power adaptor or the AC outlet. | Insert the power cord firmly as far as it will go. |
| Not Turn On the Power switch as “ON”. | Turn On the Power switch as “ON”. | |
| Insufficient frame rate detected | Cannot recognize USB 3.0 connection, but the USB 2.0 speed. | Make sure you connected USB 3.0 Cable, USB 3.0 connect, and firmly connect to USB 3.0 interface. |
| Pan,tilt or zoom cannot be operated. | Any menu is displayed on the monitor screen. | Press the “Dome OSD” OR “Lens OSD” on the Camera remote control Unit to turn off the menu from the monitor screen. |
| The panning or tilting range is limited | Pan/Tilt movement range is ± 45 degree. | |
| The Remote Commander does not work. | The Camera Select button you pressed on the Remote Commander does not match the number set with the IR SELECT switch on the camera. | Press the Camera Select button corresponding to the IR SELECT SWITCH setting on the Camera. |
| Used out of battery | Change new battery (AA x 2) | |
| The VISCA control is not available with a computer connected to the camera. | The computer is not correctly connected to the camera. | Make sure the connection between the computer and camera is made correctly. |
| Check that the VISCA control setting (RS-232C or RS-422) and the baud rate setting (9600 bps or 38,400 bps) are properly made with the BOTTOM switch on the bottom of camera and the COM Port which configured in your computer. | ||
| The camera cannot be operated at all. | Pull out the plug of the power cord from the AC outlet, then reinsert it into the AC outlet after a while. | |
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
