Help CenterCV-DS008 ISO 228 Brass Check Valve With Filter
Related Products
-
BV-DS122 EN 598 Double Eccentric Butterfly Valve Dn800US$ 1 - 1,500MOQ: 1 Piece -
BV-DS 124 ISO EN Double Flange Large Size Valve Dn1200US$ 1 - 1,500MOQ: 1 Piece
-
GV-DS014 BS EN Non-rising Stem Underground Installation ValveUS$ 1 - 500MOQ: 1 Set
-
BV-DS129 PN16 PN10 Eccentric BS 5155 Butterfly ValveUS$ 1 - 1,500MOQ: 1 Piece
-
BV-DS132 8 Inch Standard Gearbox Rubber-liner ValveUS$ 1 - 1,500MOQ: 1 Piece

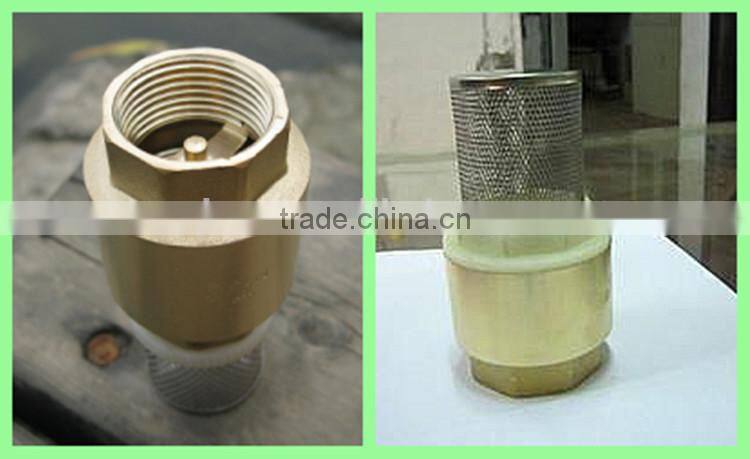

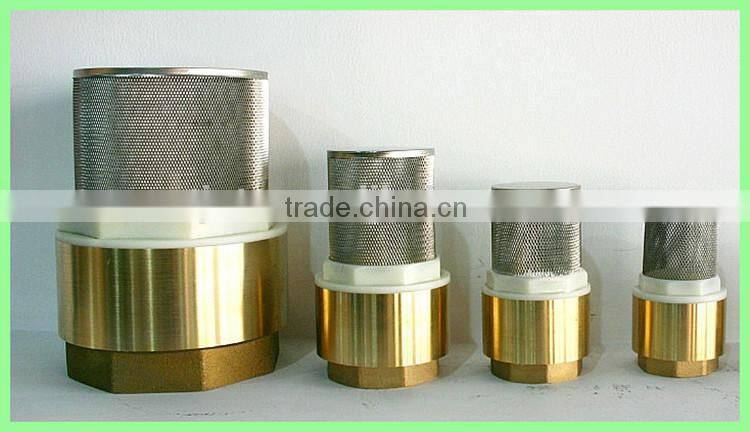

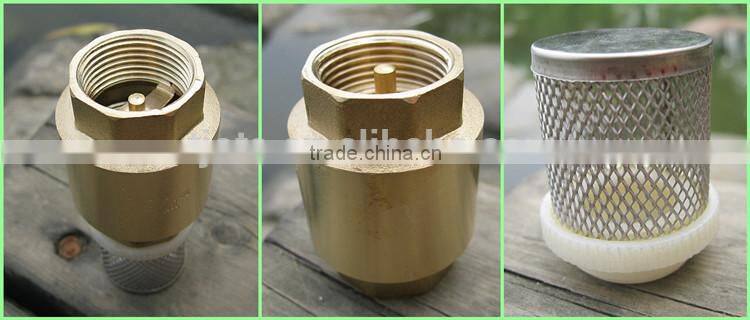

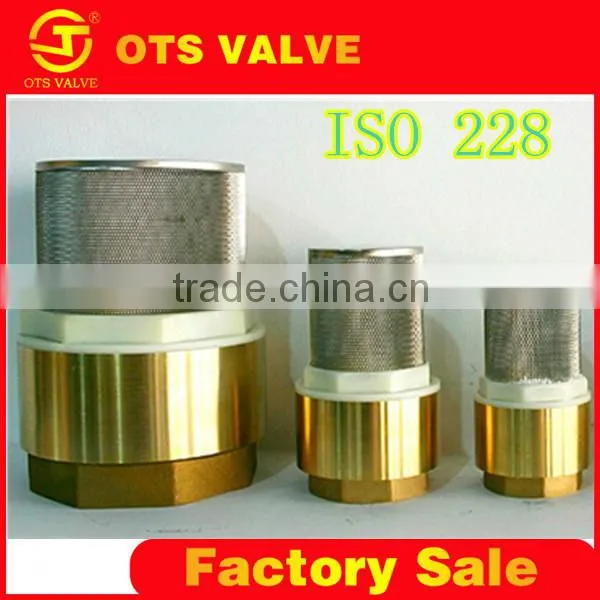

brass check valve with filter
Description of brass check valve with filter:
1.swing Check Valve: Swing check valve disc is cylindrical disk-shape, around the seat channel axis to do rotational movement, due to inner channel is the streamline, the flow resistance is smaller than the lift check valve, apply to the low flow rate and seldom flow changes large-caliber occasions, but it should not be used for pulsatile flow, its sealing performance is less than lift type. Swing Check Valve is devided into single disc, double disc, multi disc. These three types are mainly according to valve diameter, for the purpose to prevent the media stopping flow or reflux, reducing the hydraulic compact
2.lift Check Valve: disc slides along the body vertical axis, lift check valve can only be installed in horizontal pipelines, the high-pressure small-diameter check valve upper disc uses ball. Lift-type check valve body shape is the same with globe valve (commonly used to the globe valve), so its flow resistant coefficient is larger. its structure is similar to globe valves, body and disc are the same with globe valve. upper disc and lower bonnet have guided sleeve, the disc guided sleeve can freely lift, when the medium downstream, the disc opens by media thrust, when the media stopped-flow, the disc relies on self-vertical landing on the seat, affected as preventing media backwash. Straight-through lift check valve inlet and outlet media channel direction is perpendicular to seat channels; vertical lift-type check valve, its media inlet and outlet channel direction is the same with the valve seat passage, its flow resistance is smaller than the straight-through type
Technical data of brass check valve with filter:
1.Nominal pressure:1.6MPa
2.Working medium: water,gas ,oil,etc.
3.Working temperature:0°C~120°C
4.Pipe thread to ISO 228
5.Size:1/2”~4”
Characteristics of brass check valve with filter:
PROCESS: Check valve is the valve relies on media flow to automatically open and close the disc, is used to prevent the media backflow, also known as check valve, one-way valve, reflux valve, and back pressure valve.
FUNCTION: Check Valve is an automatic valve, its main function is to prevent the media backflow, prevent pump and drive motor reverse, and discharge the container medium. Check valve can also be used in pipelines that its pressure which may rise to exceed the system pressure auxiliary supply.

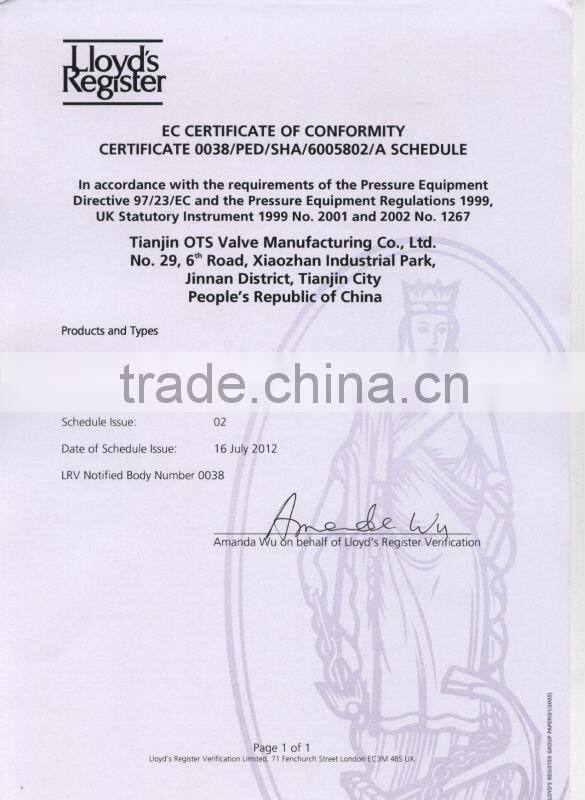

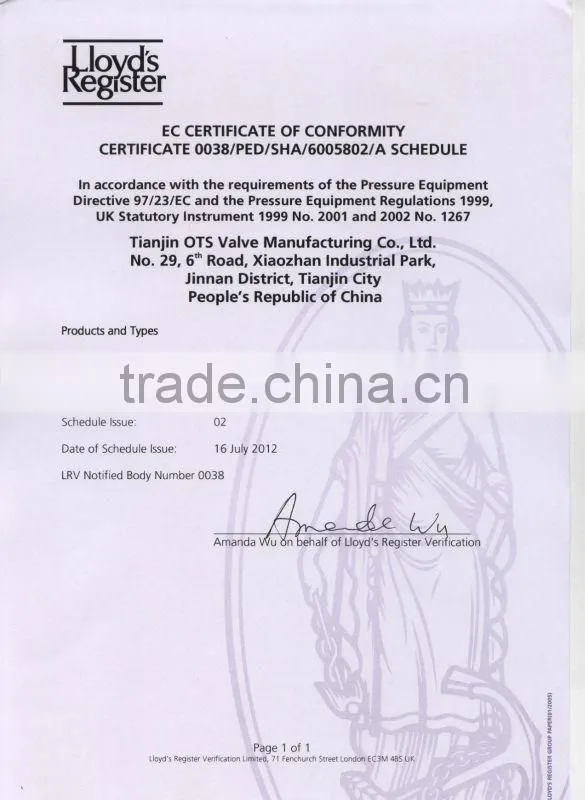

Our certifications:
Quality Management System Certification
---CE 0038 Certification
---ISO 9001: 2008 Certification
---Registration Certificate of Consignors and Consignees of Imports and Exports
---Certificate of approval
---PED Certification
---SHA Certification
---60055802 Certification
---KS Certification
---TS Certification
---Business license
---Organization Code Certificate

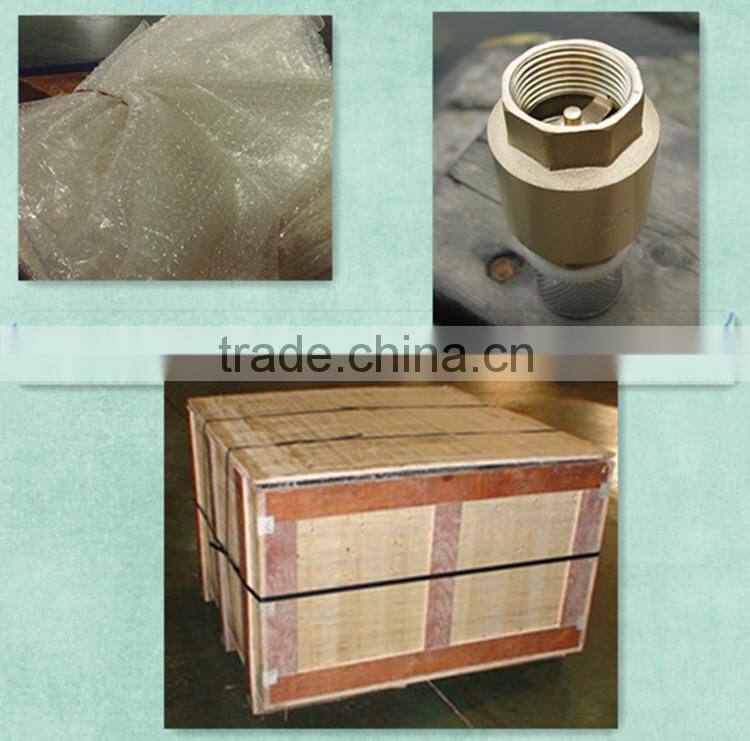

Packaging of brass check valve with filter:
1.First,putting the valve into a plastic bag.
2.Second,putting the plastic bag into a wooden box.

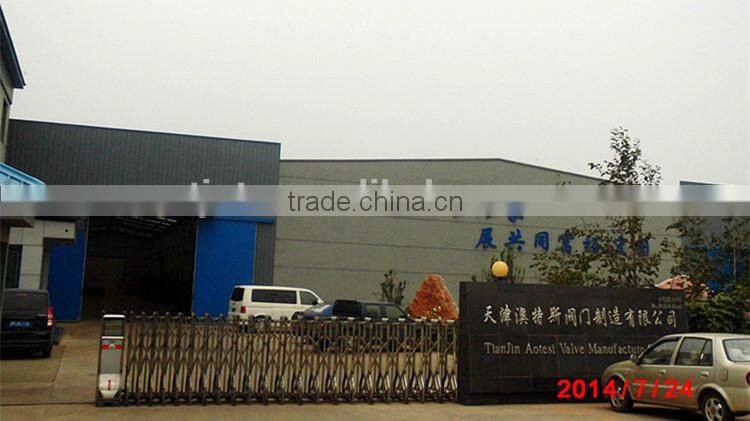

Company introduction
Tianjin Ots Valve Manufacturing Co.,Ltd, A jointed company, which is one of the valve producers in tianjin, among these valve proucers OTS specialized in all kinds of industrial butterfly valves, it has 13 years experiences in producing valves. It with fix assets of RMB 20 millions as well as some advanced processing equipments, with 120 staffs, 15 technicians, We can provide strong ability of design, processing ,assembling and testing from all butterfly valves.
.
.
l
.
Our service tips :
1. Customer always firs,customer satisfaction is our goal.
2. 18 months of quality assurance, let customers buy at ease.
3. We are the real factory sales, we will provide you the best quality products with reasonable price .
If you have any inquiry or any problems about the products, please feel free to contact me, and I am pleased to supply service for you:
