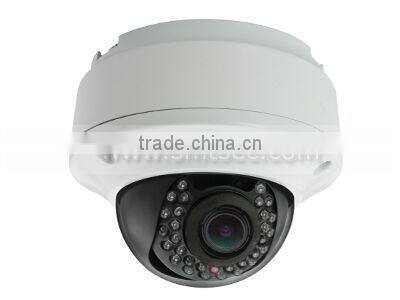

RS485,USB,BNC,TF Card Slot, Reset. DWDR H.265 4.0mp IP 66 Vandal-proof IR IP CCTV Dome Camera(SIP-E02-400WA)

Shenzhen Smart Technology Co., Ltd.
RS485,USB,BNC,TF Card Slot, Reset. DWDR H.265 4.0mp IP 66 Vandal-proof IR IP CCTV Dome Camera(SIP-E02-400WA) thumbnail-1
RS485,USB,BNC,TF Card Slot, Reset. DWDR H.265 4.0mp IP 66 Vandal-proof IR IP CCTV Dome Camera(SIP-E02-400WA) photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SMTSEC
Model Number:
SIP-E02-400WA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SMTSEC
Model Number SIP-E02-400WA
Type IP Camera
Style Dome Camera
Sensor CMOS
Technology NetWork
Special Features Vandal-proof



Product Description

RS485,USB,BNC,TF Card Slot, Reset. DWDR H.265 4.0mp IP 66 Vandal-proof IR IP CCTV dome Camera(SIP-E02-400WA)



ModelSIP-E02-400WA
Camera TypeDWDR H.265 4.0mp Vandal-proof IR IP Camera
Camera
Image Sensor1/3” 4.0 megapixels Progressive OV 4689 CMOS
DSPHisilicon 3516A
Effective Pixels2688(H)x1520(V)
Scanning SystemProgressive
Electronic ShutterAuto (1/25 ~ 1/100000s)
Min. Illumination0. 05Lux/F1.2 (Color)
S/N Ratio≥50db(AGC OFF)
IR-CutSupport
Day/NightSupport
WDRAuto(ICR)/Color/B/W
White Balance≥120dB (Digital WDR)
Gain ControlAuto
Noise Reduction3D-DNR
Privacy MaskingUp to 4 areas
Image parameterBir/Con/Hue/Sat/Acu/Gamma
Image basicMirror/Flip/LSC/CTB/AntiFogging
LensStandard 4mm Megapixel Lens  (Optional:6/2.8/2.8-12mm)
Lens MountCS Mount
IR-LED30 pcs LED
Illuminate Distance25m
Video/Audio
Video CompressionH.265/H.264/MJPEG
ResolutionMain Stream: 2592X1520, 2048X1520, 1920X1080, 1280X720  (1 ~ 25/30fps)
Sub Stream:D1,VGA,CIF,  (1 ~ 25/30fps)
Frame Rate1 ~ 25/30fps (H.264 1080p mode, support 50/60fps)
Bit Rate30~16384Kb/S, support VBR, CBR
Text OverlayChannel, Date & Time, Bit Rate
Audio CompressionG.726/G.711A/G.711U
Audio bit rate16000
Sampling rate8K
Network
Data StorageVideo record, Picture format
TriggerManual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmissionFTP, E-mail, Browser, CMS
ProtocolTCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
ONVIFONVIF 2.4
Max. User Access10 users, IE, Google, Firefox
Smart PhoneWindows Mobile, iPhone, iPad, Android
P2P ServerSupport
Interface
AudioSupport 1ch input, 1ch output
BNC Video out1ch
RS422/RS4851ch
USB1ch (Support 64G USB flash/WIFI/3G)
Alarm1ch input, 1ch output
IO InterfaceReset(Optional)
Memory CardSupport Max 64G TF Card
General
POEPOE IEEE 802.3af (Optional)
Power SupplyDC12V
Power Consumption<8W
Working Environment-20°C~+55°C , Less than 90% RH Dimensions
Product Size150X150X130mm
Package Size270X160X180mm
Net Weight2KG






 RS485,USB,BNC,TF Card Slot, Reset. DWDR H.265 4.0mp IP 66 Vandal-proof IR IP CCTV dome Camera(SIP-E02-400WA)







Packaging & Shipping



China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)



•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.





Our Services





•All products have been checked and packaged in good condition before dispatch.

•All products have 1 year warranty.
