Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > HD 5MP 25/30fps H.265 IP Camera With TF Memory Card Slot IR 50M Outdoor OV5658 OV CMOS Hi3516A Audio USB Alarm (SIP-E04-5658AT)

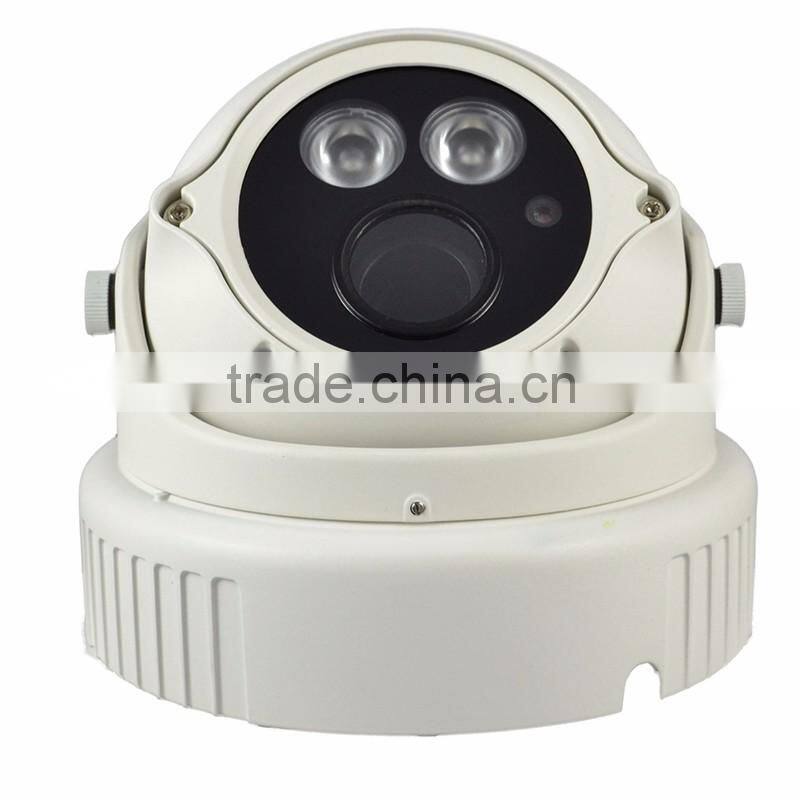

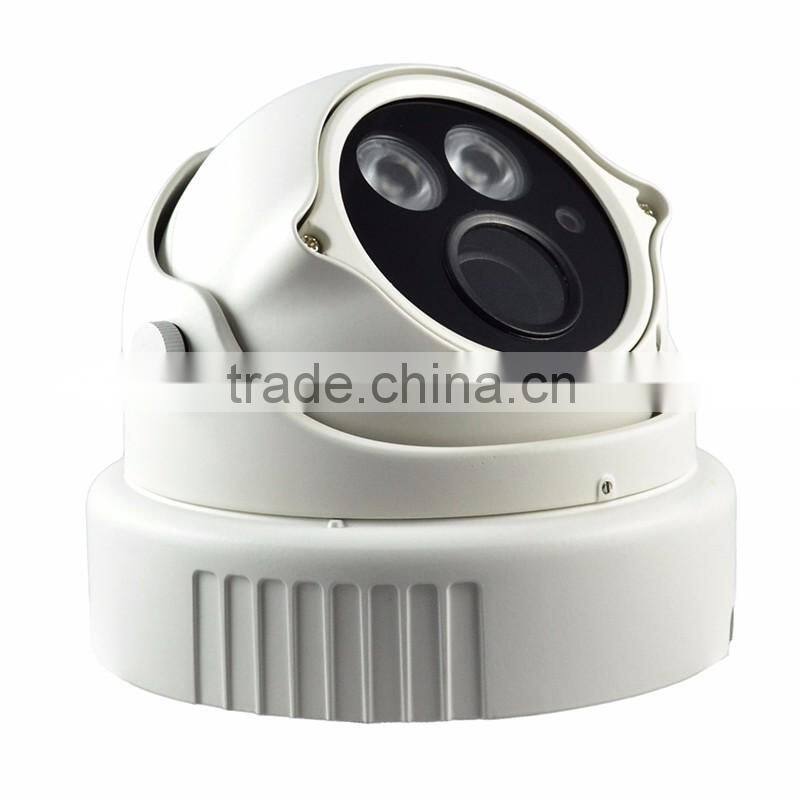

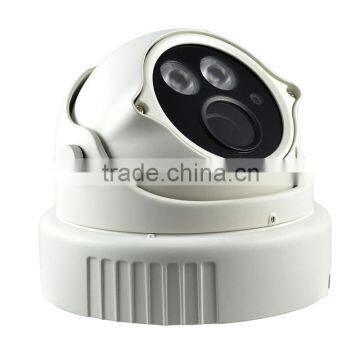

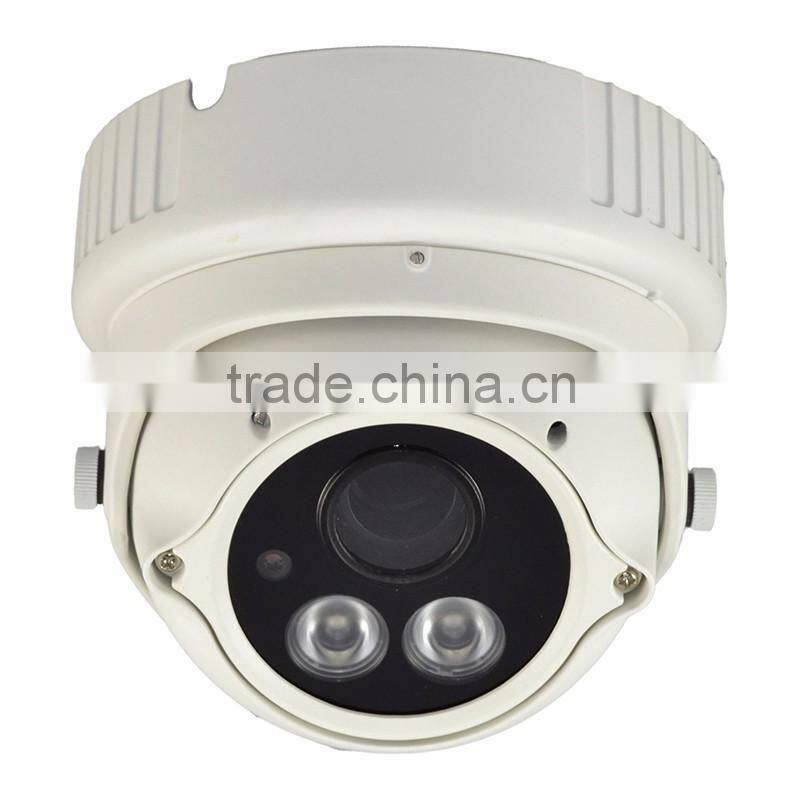

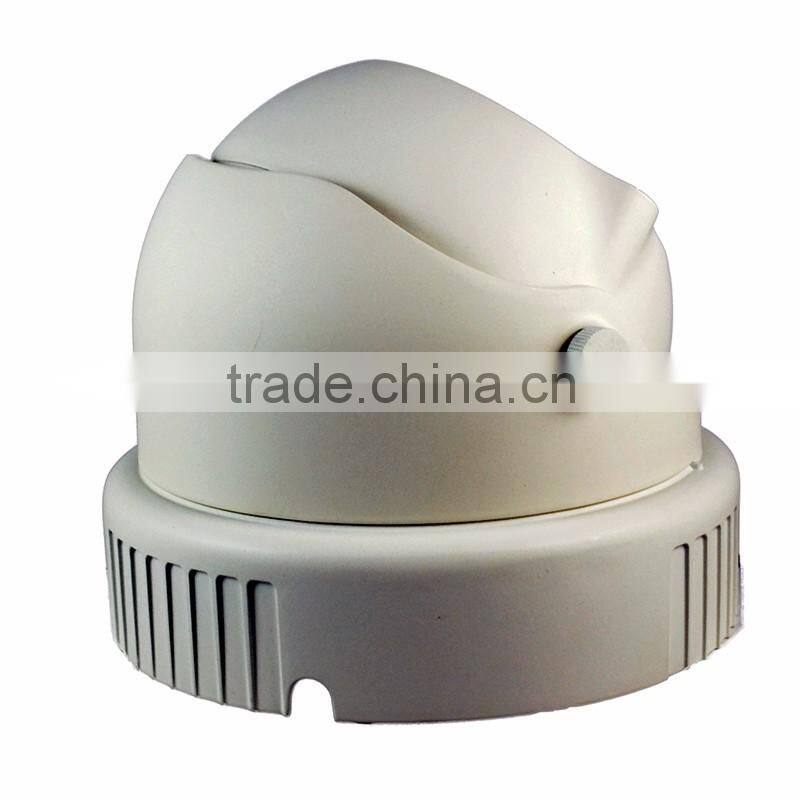

HD 5MP 25/30fps H.265 IP Camera With TF Memory Card Slot IR 50M Outdoor OV5658 OV CMOS Hi3516A Audio USB Alarm (SIP-E04-5658AT)
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SMTSEC
Model Number:
SIP-E04-5658AT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5.0MP H.265 IP Network Camera Outdoor Security Camera HD IP66 TF Card Slot IR Night Sony Sensor IMX178 Hi3516D (SIP-E04-178DT)NegotiableMOQ: 1 Piece -
120db WDR 2MP 1080P H.26 IP Camera TF Network 2.8-12mm Motorized Zoom Panasonic 34229 CMOS Hi3516A Outdoor (SIP-E07-229AMTP)NegotiableMOQ: 1 Piece
-
WDR Security 1080P 2MP IP Camera Network H.265 2.8-12mm Motorized Zoom Lens Sony Sensor IMX290 Hi3516D Outdoor (SIP-E07-290DM)NegotiableMOQ: 1 Piece
-
Starlight H.265 2.0MP 1080P 3.6-10mm Motorized Remote Control Zoom IP Camera Outdoor Security IMX185 Hi3516D (SIP-E07-185DM)NegotiableMOQ: 1 Piece
-
5.0mp 2560X1920 25/30fps 3516A+SONY IMX178 H.265 IP IR Camera(SIP-E01-500LA)NegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
SMTSEC
Model Number
SIP-E04-5658AT
Type
IP Camera
Style
Dome Camera
Sensor
CMOS
Technology
Infrared
Special Features
Waterproof / Weatherproof
Product Description
HD 5MP 25/30fps H.265 IP Camera With TF Memory Card Slot IR 50M Outdoor OV5658 OV CMOS Hi3516A Audio USB Alarm (SIP-E04-5658AT)
| Model | SIP-E04-5658AT |
| Camera Type | H.265 5.0mp Dome IR HD IP Camera |
| Camera | |
| Image Sensor | 1/3.2" 5.0mp OV5658 CMOS |
| DSP | Hisilicon 3516A |
| Effective Pixels | 2592x1944 |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) |
| Min. Illumination | Color 0.6Lux/F1.2,B/W 0.08Lux/F1.2 |
| S/N Ratio | ≥50dB(AGC OFF) |
| Lens Mount | Default CS Mount (Optional M12 Mount) |
| IR-Cut | Support |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | Digital WDR >80db |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D-DNR |
| Privacy Masking | Up to 4 areas |
| Image parameter | Bir/Con/Hue/Sat/Acu/Gamma |
| Image basic | Mirror/Flip/LSC/CTB/AntiFogging |
| Lens | Standard 6mm Megapixel Lens |
| IR-LED | 2 pcs LED Arrays |
| Illuminate Distance | 50m |
| Video/Audio | |
| Video Compression | H.264/MJPEG/H.265 |
| Resolution | Main Stream: 2592X1944,2048X1536,1920X1080 (1~25/30fps) |
| Sub Stream:D1,VGA,CIF, (1~25/30fps) | |
| Frame Rate | 1~25/30fps |
| Bit Rate | 30Kbps~16Mbps, support VBR, CBR |
| Text Overlay | Channel, Date & Time, Bit Rate |
| Audio Compression | G.726/G.711A/G.711U |
| Audio bit rate | 16000 |
| Sampling rate | 8K |
| Network | |
| Data Storage | Video record, Picture format |
| Trigger | Manual, Automatic(motion detection, alarm, schedule, cycle ) |
| Alarm data transmission | FTP, E-mail, Browser, CMS |
| Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
| ONVIF | ONVIF V2.4 |
| Max. User Access | 8 users, IE, Google, Firefox |
| Smart Phone | iPhone, iPad, Android |
| Interface | |
| Audio | 1ch input, 1ch output |
| BNC Video out | 1ch |
| RS485 | 1ch |
| USB | 1ch (Support 32G USB flash/WIFI/3G Extended) |
| Alarm | 1ch input |
| Reset | Support |
| Memory Card Slot | Support Max 32G TF Card |
| General | |
| POE | IEEE802.3af |
| Power Supply | DC12V |
| Power Consumption | <9W |
| Working Environment | -20°C~+55°C , Less than 90% RH Dimensions |
| Product Size | 150X150X130mm |
| Package Size | 160X160X150mm |
| Net Weight | 1.6KG |
Packaging & Shipping
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
Our Services
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
iPhone 5S photo
SIP-1080L SONY 222 2.0mp Day
SIP-1080L SONY 222 2.0mp Night
SIP-E 200ST SONY 185 2.0mp day
SIP-E 200ST SONY 185 2.0mp Night
SIP-E500L SONY 178 5.0mp Day
SIP-E500L SONY 178 5.0mp Night
