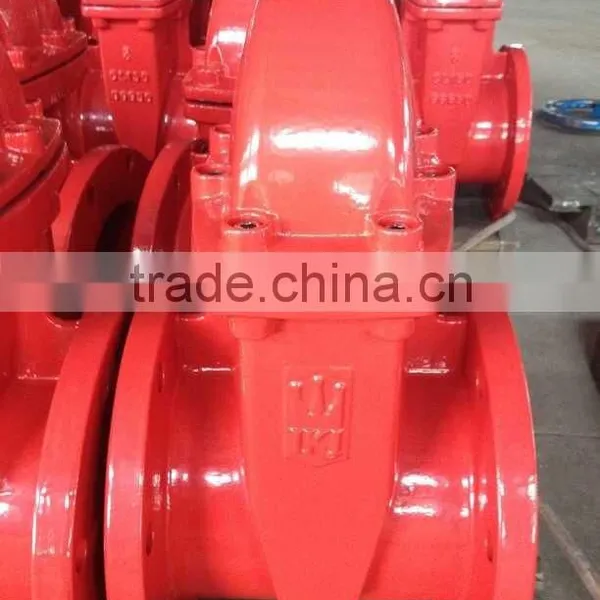

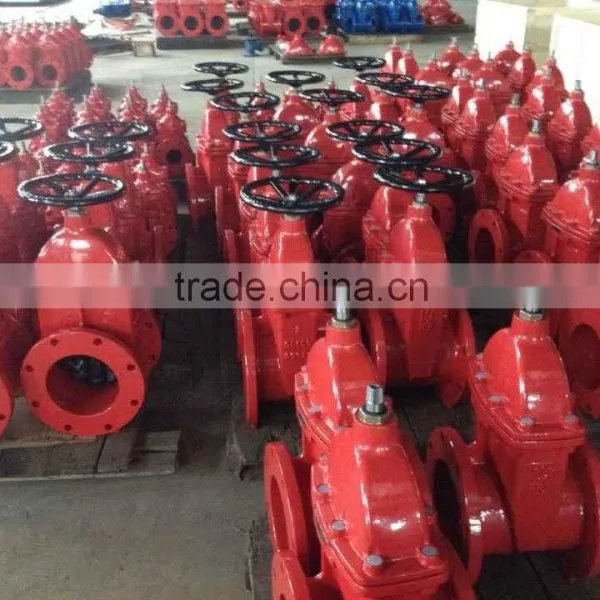

Help CenterAWWA C515 FLANGE DUCTILE IRON GATE VALVE
Related Products
-
Z41W-16P/R 25P/R 40P/R DN100-600 Flange Hard Seal Stainless Steel Gate Valve Quality ChoiceUS$ 150 - 1,200MOQ: 1 Set -
8 Inch Ductile Iron Flanged Industrial Gate ValvesUS$ 1 - 800MOQ: 1 Set
-
API Casting Steel Marine Industrial Gate ValveUS$ 1 - 800MOQ: 1 Set
-
150LB Flanged Stainless Steel Gate Valves Industrial ValvesUS$ 1 - 800MOQ: 1 Set
-
150LB High Quality Industrial Cast Steel Pipeline Gate ValveUS$ 1 - 800MOQ: 1 Set
API Cast Steel Flanged Gate Valve
Technical Data:
Normal Pressure: 1.0MPa/1.6MPa
Shell Test Pressure: 1.5MPa/2.4MPa
Sealing Test Pressure: 1.1MPa/1.76MPa
Applicable Medium: Oil Gas Water
Technical Specifications:
Design: DIN3352
Face to face: DIN3202-F4
Flange drilling: DIN2531 / DIN2532 /
DIN2533 / EN1092-2
Main Parts and Material:
| 1 | Body | Cast iron or Ductile iron |
| 2 | Seatring | Cast bronze or stainless steel |
| 3 | Disc | Cast iron or Ductile iron |
| 4 | Bonnet | Cast iron or Ductile iron |
| 5 | Packing | Not asbestos |
| 6 | Gland | Ductile iron |
| 7 | Stem | Stainless steel |
| 8 | Handwheel | Cast iron or Ductile iron |
| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| DN | 1.5" | 2" | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" | 12" |
| L | 165 | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 |
| H | 254 | 267 | 279 | 305 | 406 | 457 | 559 | 711 | 889 | 1117 |
| D | 127 | 152 | 178 | 191 | 229 | 254 | 279 | 343 | 406 | 483 |
Wooden Box with Plastic and Bubble Bat Bags Covering the Valves
Tianjin OTS Valve Manufacturing Co., Ltd., a jointed company, established during the time of China Reform and Open to the World. specializing in all kinds industrial butterfly valves with 13340 meters, including 8600m work shop, fixed finance of USD 400, 000 as well as some advanced design, processing, assembling and testing for all butterfly valves. Further we are rich in the experience of producing butterfly valves over more than 10 years, all of the butterfly valves we produced come up to the advanced standard home and abroad.
Best services: ---18 month quality gurantee, 10000 times turn on/off
Quality Management System Certification
---CE 0038 Certification
---ISO 9001: 2008 Certification
---Registration Certificate of Consignors and Consignees of Imports and Exports
---Certificate of approval
---PED Certification
---SHA Certification
---60055802 Certification
---KS Certification
---TS Certification
---Business license
---Organization Code Certificate
Exhibition:
Attend the fair 2-3 times every year.
