Rising stem knife gate valve with handwheel or actuator
Technic data:
size:dn50mm to dn600mm
pressure:PN10 PN16
suitable tempersure:less than 600 degree
suitable medium:paper pulp,coal-slurry,sewage,dust,mixture of water,Ash residue
Material:
valve body/bonnet:carbon steel,stainless steel
disc/stem:stainless steel
sealing surface:hard alloy,stainless steel

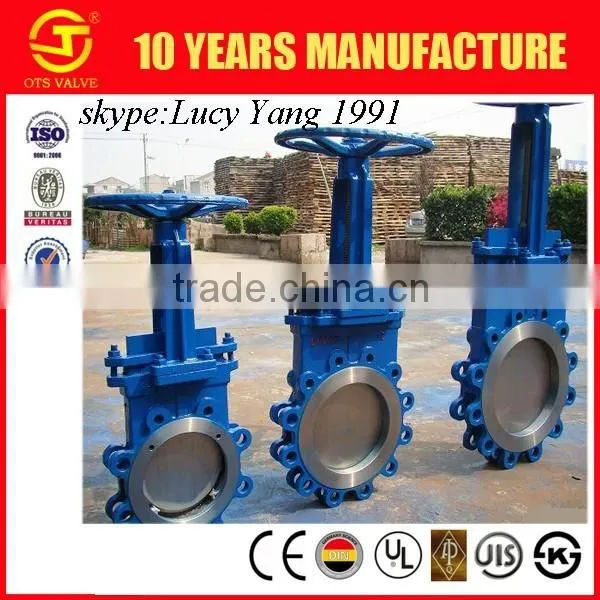

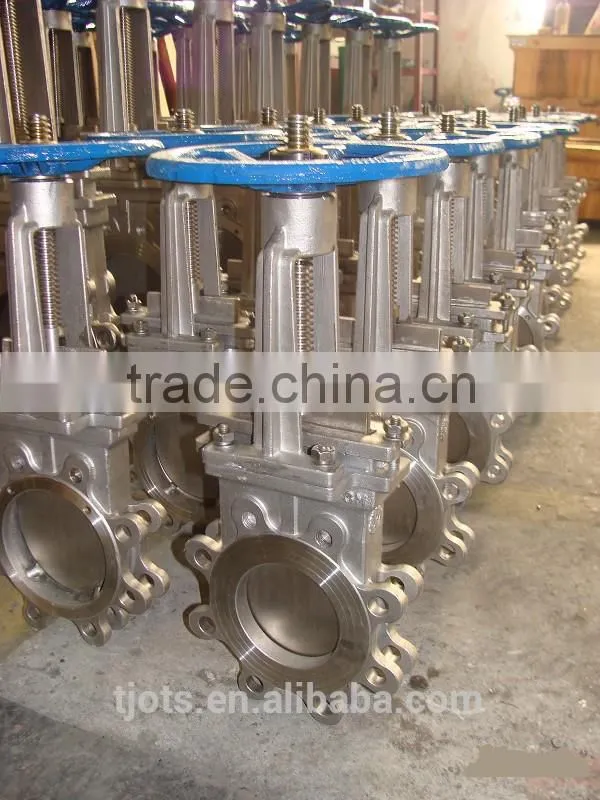

Picture:
Principle:
knife gate valve for opening and closing parts, the direction of movement of the fluid direction perpendicular to the gate, the manual knife gate valve can only be fully open and fully closed, can not be adjusted and the throttle.
Characters:
Manual knife gate valve has a simple and compact structure, reasonable design, lightweight materials, sealing, reliable, light and flexible operation, small size, channel flow, flow resistance, light weight, easy to install, easy to disassemble, etc., can work pressure 1.0MPa -2.5MPa, -29-650 ℃ operating temperature under normal working conditions. Knife gate valve has cut its function, can scrape the sealing surface of the adhesive material, the debris is cleared automatically seal leakage, stainless steel gate to prevent corrosion. This type valve in the pipe should generally be installed horizontally.
Application Place:
Its use extended from the ordinary to the broader field of industries. From mine coal preparation plant, discharge refuse, slag. The development of urban sewage treatment, the development pipeline from general industrial to food, health, medicine and other professional pipeline system.
Packing:

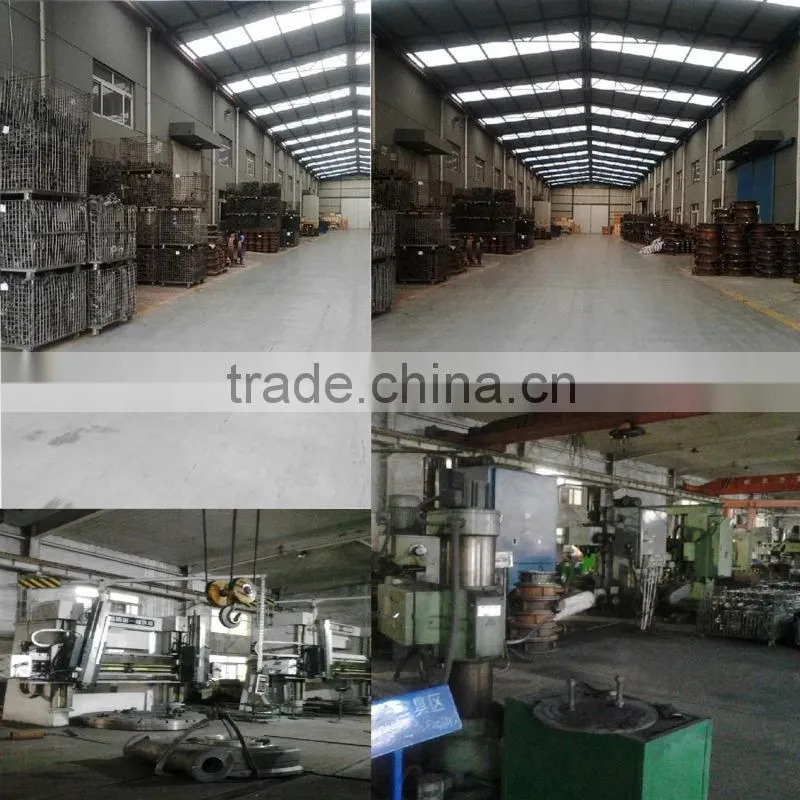

Company picture :
We specializing in industrial valve with 10 years history ,welcome to inquiry with me .i am of service all the time !
