Help CenterGV-DS013 CI/DI Dn80 Non-rising Stem Underground Gate Valve
Related Products
-
GV-DS012 ANSI/DIN CI/DI Dn100 Handwheel Gate ValveUS$ 1 - 500MOQ: 1 Set -
GV-DS011 ANSI/DIN Non-rising Stem Cast Iron Gate Valve Dn80US$ 1 - 500MOQ: 1 Set
-
GV-DS010 ANSI/DIN Resilient Soft Seated Non-rising Stem Gate ValveUS$ 1 - 500MOQ: 1 Set
-
GV-DS021 DIN WCB PN25 Gate ValveUS$ 1 - 500MOQ: 1 Set
-
GV-DS020 ASME Class 150 WCB Gate Valve DN80US$ 1 - 500MOQ: 1 Set
Specifications
1.underground gate valve2.long life
3.opening easy
4.10 years manufacture

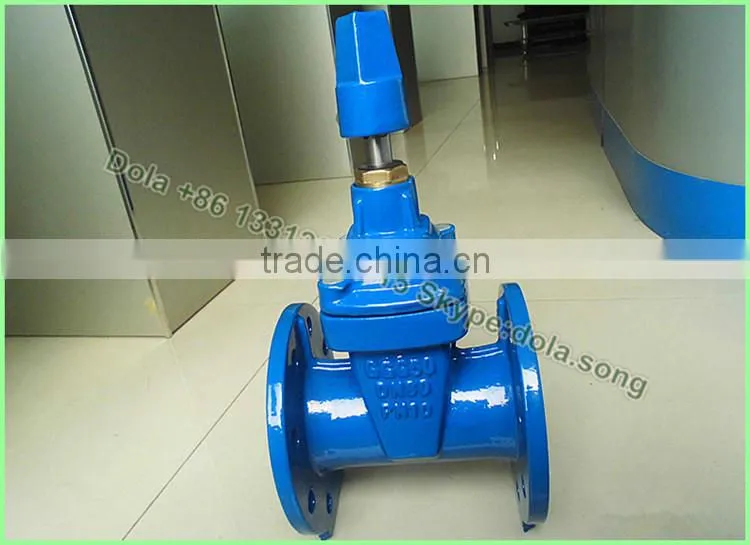

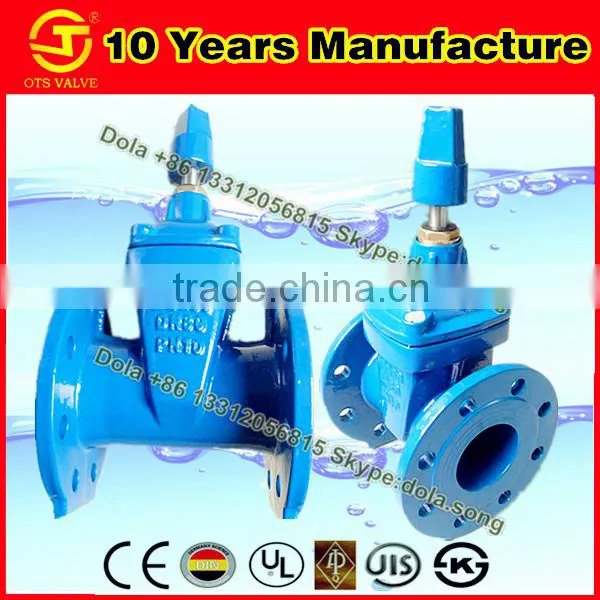

CI/DI dn80 non-rising stem underground gate valve
Description of underground gate valve :
underground gate valve , also called rotating lever gate valve (also called non-rising stem wedge gate valve).Stem nut in ram, hand wheel rotate to drive the stem, and make the damper to ascend, usually at the bottom of the valve stem has a trapezoidal thread, through the valve at the bottom of the thread and the guide groove on the disc, the rotary motion to linear motion, which is the operating torque thrust into operation.Non-rising stem gate valve open-close part is ram, ram movement direction perpendicular to the direction of flow and the valve can only be fully open and close, not to adjust and throttling.
Technical data of underground gate valve :
Working pressure: PN10/16 ,Class 125/150
Working temperature: NBR 0-80℃ EPDM 0-100℃
Design standard: MSS SP-70,EN1171:2002,DIN3352-F5,DIN3352-F4
Face to face is according to: EN558,ASME B 16.10
Flange drilled is according to: EN1092,ASME B 16.1-16.5
Material of Main Parts:
Our certifications:
Quality Management System Certification
---CE 0038 Certification
---ISO 9001: 2008 Certification
---PED Certification
---SHA Certification
---60055802 Certification
---KS Certification
---TS Certification
Company introduction:
Tianjin Ots Valve Manufacturing Co.,Ltd, A jointed company, which is one of the valve producers in tianjin, among these valve proucers OTS specialized in all kinds of industrial butterfly valves, it has 13 years experiences in producing valves. It with fix assets of RMB 20 millions as well as some advanced processing equipments, with 120 staffs, 15 technicians, We can provide strong ability of design, processing ,assembling and testing from all butterfly valves.
Our service tips :
1. Customer always firs,customer satisfaction is our goal.
2. 18 months of quality assurance, let customers buy at ease.
3. We are the real factory sales, we will provide you the best quality products with reasonable price .
If you have any inquiry or any problems about the products, please feel free to contact me, and I am pleased to supply service for you:
