Auto IRIS WDR IP Board Camera Module PCB 1080P 2.0MP Panasonic Sensor Hi3516A ONVIF P2P Network Audio USB RS485 (SIP-E229AI)
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SMTSEC
Model Number:
SIP-E229AI
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4.0mp 25/30fps IP Camera Module Main PCB Board OV4689 Hisilicon 3516A Audio USB TF Card Slot Onvif 2.4 P2P Network (SIP-E4689AT)NegotiableMOQ: 1 Piece -
OV4689 Hi3516A Auto IRIS 4.0mp Real Time IP Camera Module USB Audio TF Card Slot PCB Board P2P Network Onvif 2.4 (SIP-E4689AIT)NegotiableMOQ: 1 Piece
-
Lightning Protection TF Card Expansion Module FOR IP CCTV Surveillance Camera (EA)NegotiableMOQ: 1 Piece
-
Starlight 3.0MP Real Time 25/30fps 2048X1536 H.265 IP Camera Module PCB Board SONY IMX124 Hi3516D USB, Audio,Alarm (SIP-E124D)NegotiableMOQ: 1 Piece
-
Motorized Zoom WDR IP Camera Module With TF Card Slot 1080P 2.0MP SONY IMX290 Sensor Hi3516A DSP Network PCB Board (SIP-E290AM)NegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
SMTSEC
Model Number
SIP-E229AI
Type
IP Camera
Sensor
CMOS
Technology
NetWork
Special Features
Other, Board camera
Product Description

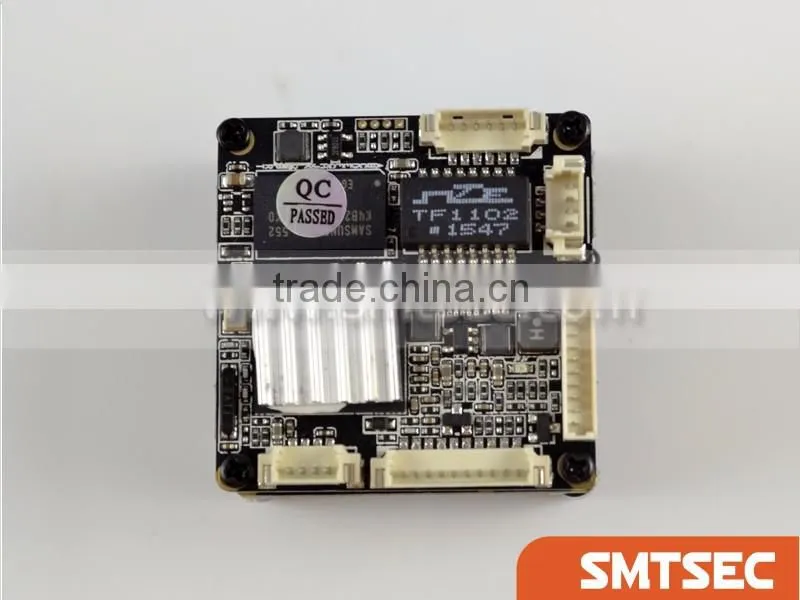

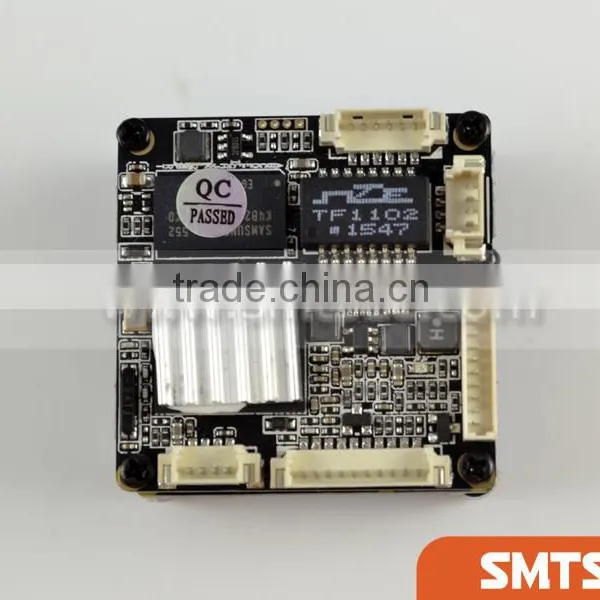

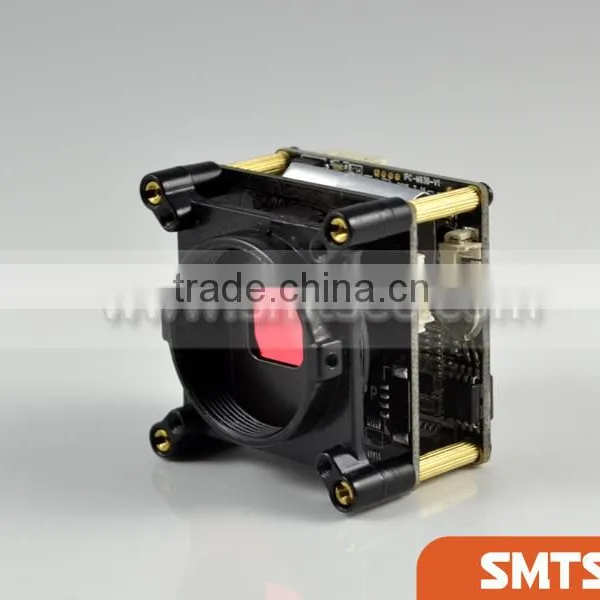

Auto IRIS WDR IP Board Camera Module PCB 1080P 2.0MP Panasonic Sensor Hi3516A ONVIF P2P Network Audio USB RS485 (SIP-E229AI)
| Model | SIP-E229AI |
| Camera Type | H.265 2.0mp WDR IP Camera Module |
| Camera | |
| Image Sensor | 1/3" 2.12 megapixels Progressive Panasonic 34229 CMOS |
| DSP | Hisilicon 3516A |
| Effective Pixels | 1944 (H) x 1092 (V) Approx. 2.1M pixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) |
| Min. Illumination | Color 0.05Lux/F1.2,B/W 0.01Lux/F1.2 |
| S/N Ratio | ≥50dB(AGC OFF) |
| Lens Mount | Default CS Mount (Optional M12 Mount) |
| IR-Cut | Support |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | WDR >120db |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D-DNR |
| Privacy Masking | Up to 4 areas |
| Image parameter | Bir/Con/Hue/Sat/Acu/Gamma |
| Image basic | Mirror/Flip/LSC/CTB/AntiFogging |
| Video/Audio | |
| Video Compression | H.264/MJPEG/H.265 |
| Resolution | Main Stream:1920X1080, 1280X720 (1~25/30fps) |
| Sub Stream:D1,VGA,CIF, (1~25/30fps) | |
| Frame Rate | 1~25/30fps (H.264 non-WDR 60fps) |
| Bit Rate | 30Kbps~16Mbps, support VBR, CBR |
| Text Overlay | Channel, Date & Time, Bit Rate |
| Audio Compression | G.726/G.711A/G.711U |
| Audio bit rate | 16000 |
| Sampling rate | 8K |
| Network | |
| Data Storage | Video record, Picture format |
| Trigger | Manual, Automatic(motion detection, alarm, schedule, cycle ) |
| Alarm data transmission | FTP, E-mail, Browser, CMS |
| Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
| ONVIF | ONVIF V2.4 |
| Max. User Access | 8 users, IE, Google, Firefox |
| Smart Phone | iPhone, iPad, Android |
| Interface | |
| Audio | 1ch input, 1ch output |
| BNC Video out | 1ch |
| RS485 | 1ch |
| USB | 1ch (Support 32G USB flash/WIFI/3G Extended) |
| Alarm | 1ch input |
| Reset | Support |
| Auto IRIS | Support DC drive auto iris lens |
| General | |
| Power Supply | DC12V |
| Power Consumption | <3W |
| Working Environment | -20°C~+55°C , Less than 90% RH |
| Product Size | 38 x 38 x 25mm |
| Net Weight | 0.2kg |
Packaging & Shipping
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
Our Services
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
