Specifications
We can supply all type Circular Loom
Model: S-YZJ-850/6S

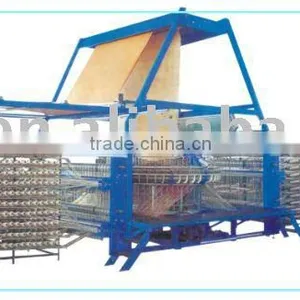

The machine is a kind of equipment to produce circular cylinder woven of PP or PE plastic flat yarn. The 4-shuttle and 6-shuttle circular loom can weave woven bags of all specification.
In comparison with others, our circular loom is with wonderful performance such as high speed, low energy consumption, smooth running, low noise, reasonable structure, advanced design, long working life, easy operation and convenient maintenance, high production efficiency, etc. It has high precise warp and weft breakage detecting system and can make smooth looking of the cloth product.
The machine can weave flat yarn of different quality, even 100% recycled material flat yarn.
Model |
S-YZJ-850/4S |
S-YZJ-850/6S |
S-YZJ-6/750A |
Number of shuttle |
4 |
6 |
6 |
Weaving folding width |
350-750mm |
350-850mm |
350-850mm |
Max. number of warp |
720 |
720 |
720 |
Revolution of main motor |
100-180r/min |
100-170r/min |
100-160r/min |
Production capability (10×10) |
1000-1800mm |
1800-2550mm |
1500-2400mm |
Total power |
2.7kw |
3.5kw |
4.5kw |
Noise |
<85db |
<75db |
<85db |
Weight (About) |
3000kg |
3200kg |
3000kg |
Overall dimension (L×W×H) |
9000×2400×2730mm |
8500×2300×2800mm |
9000×2400×2730mm |
We can supply all the type circular Loom such as Plastic woven bag Circular Loom, 4-shuttle Circular Loom, 6-shuttle Circular Loom, 8-shuttle Circular Loom, Leno woven Bag Circular Loom, Mesh Bag Circular Loom, cement bag Circular Loom, rice bag circular loom, flour bag circular loom, sugar woven bag circular loom, fertilizer bag circular loom, grain bag circular loom, Jumbo bag circular loom, container bag circular loom, wheat bag circular loom, corn bag circular loom, vegetable leno bag circular loom, vegetable mesh woven bag circular loom, fruit leno bag circular loom, fruit mesh woven bag circular loom.
