WDR IP Camera Module 1/3" Panasonic 34229 CMOS 2.0MP 1080P Hi3516D DSP CCTV Security PCB Board Functions DIY (SIP-E229D)
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SMTSEC
Model Number:
SIP-E229D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Starlight 2.0MP 1080P H.265 IP Board Camera SONY IMX291 Sensor Hi3516D DSP USB, Audio CCTV Security (SIP-E291D)NegotiableMOQ: 1 Piece -
1/1.8" SONY IMX178 Hisilicon 3516A 2592X1944 25/30fp Real Time H.265 5.0mp IP Camera Module PCB Board Audio USB (SIP-E178A)NegotiableMOQ: 1 Piece
-
Starlight 2.0MP 1080P IMX323 H.265 IP Camera Module PCB Board USB, Audio,RS485,Alarm,TF Slot,POE,WiFi,Motoried,,DIY (SIP-E323D)NegotiableMOQ: 1 Piece
-
Auto IRIS WDR H.265 IP Camera Module With TF Card Slot 1080P 2.0MP SONY IMX290 Hi3516A Network PCB Board Camera (SIP-E290AIT)NegotiableMOQ: 1 Piece
-
5.0mp 2592x1944 Real Time 25/30fps IP Camera Module PCB Board OV CMOS Hi3516A H.265 USB Audio POE Wifi Auto IRIS DIY(SIP-E5658A)NegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
SMTSEC
Model Number
SIP-E229D
Type
IP Camera
Sensor
CMOS
Technology
NetWork
Special Features
Other, Board camera
Product Description
WDR IP Camera Module 1/3" Panasonic 34229 CMOS 2.0MP 1080P Hi3516D DSP CCTV Security PCB Board Functions DIY (SIP-E229D)
| Model | SIP-E229D |
| Camera Type | H.265 2.0mp WDR IP Camera Module |
| Camera | |
| Image Sensor | 1/3" 2.12 megapixels Progressive Panasonic 34229 CMOS |
| DSP | Hisilicon 3516D |
| Effective Pixels | 1944 (H) x 1092 (V) Approx. 2.1M pixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) |
| Min. Illumination | Color 0.05Lux/F1.2,B/W 0.01Lux/F1.2 |
| S/N Ratio | ≥50dB(AGC OFF) |
| Lens Mount | Default CS Mount (Optional M12 Mount) |
| IR-Cut | Support |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | WDR >120db |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D-DNR |
| Privacy Masking | Up to 4 areas |
| Image parameter | Bir/Con/Hue/Sat/Acu/Gamma |
| Image basic | Mirror/Flip/LSC/CTB/AntiFogging |
| Video/Audio | |
| Video Compression | H.264/MJPEG/H.265 |
| Resolution | Main Stream:1920X1080, 1280X720 (1~25/30fps) |
| Sub Stream:D1,VGA,CIF, (1~25/30fps) | |
| Frame Rate | 1~25/30fps |
| Bit Rate | 30Kbps~16Mbps, support VBR, CBR |
| Text Overlay | Channel, Date & Time, Bit Rate |
| Audio Compression | G.726/G.711A/G.711U |
| Audio bit rate | 16000 |
| Sampling rate | 8K |
| Network | |
| Data Storage | Video record, Picture format |
| Trigger | Manual, Automatic(motion detection, alarm, schedule, cycle ) |
| Alarm data transmission | FTP, E-mail, Browser, CMS |
| Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
| ONVIF | ONVIF V2.4 |
| Max. User Access | 8 users, IE, Google, Firefox |
| Smart Phone | iPhone, iPad, Android |
| Interface | |
| Audio | 1ch input, 1ch output |
| BNC Video out | 1ch |
| RS485 | 1ch |
| USB | 1ch (Support 32G USB flash/WIFI/3G Extended) |
| Alarm | 1ch input |
| Reset | Support |
| Optional function# | |
| Memory Card# | Support Max 32G TF Card |

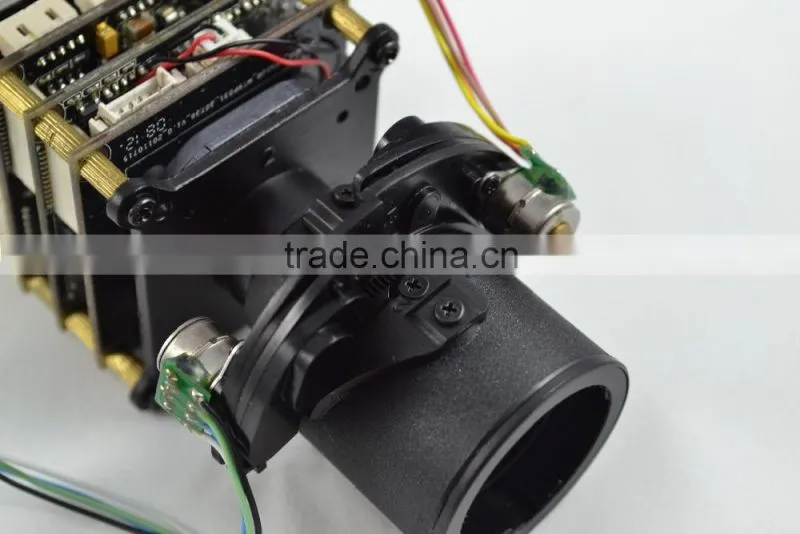

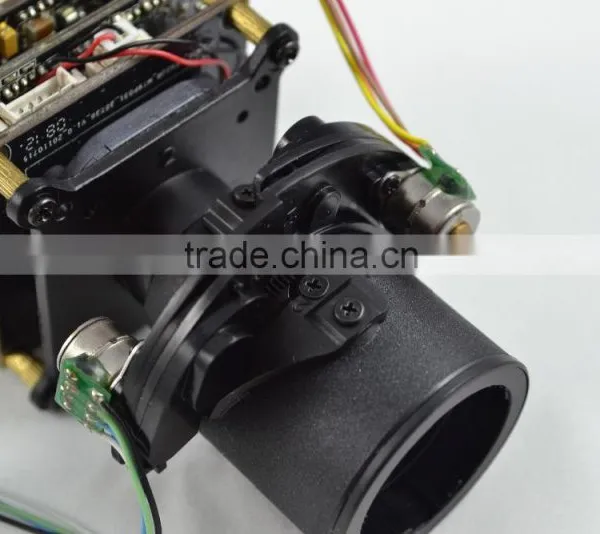

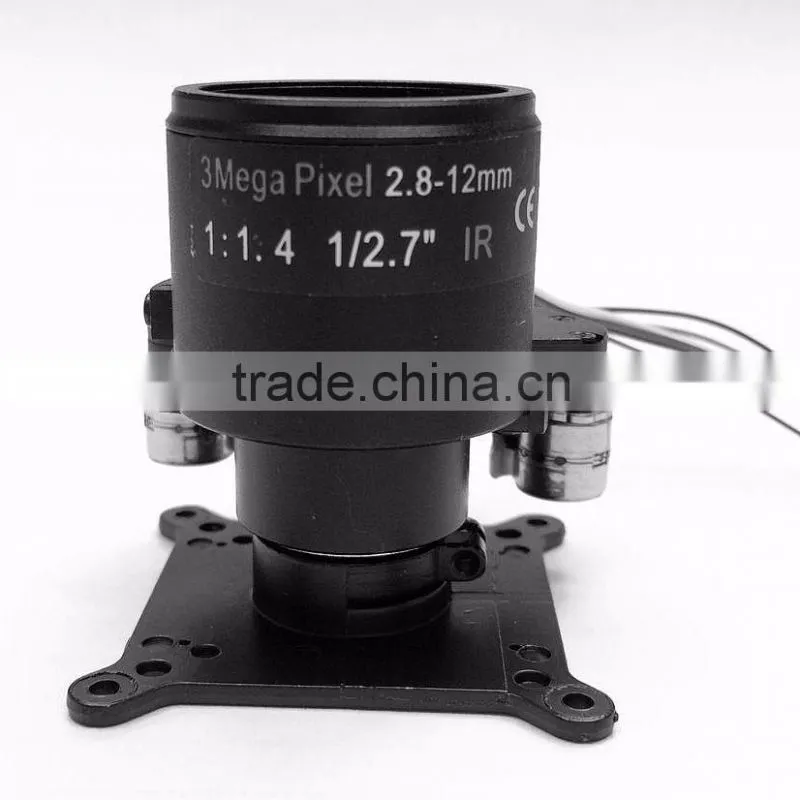

| Motorized Zoom lens# | Auto Zoom, Auto Focus, Auto IRIS |

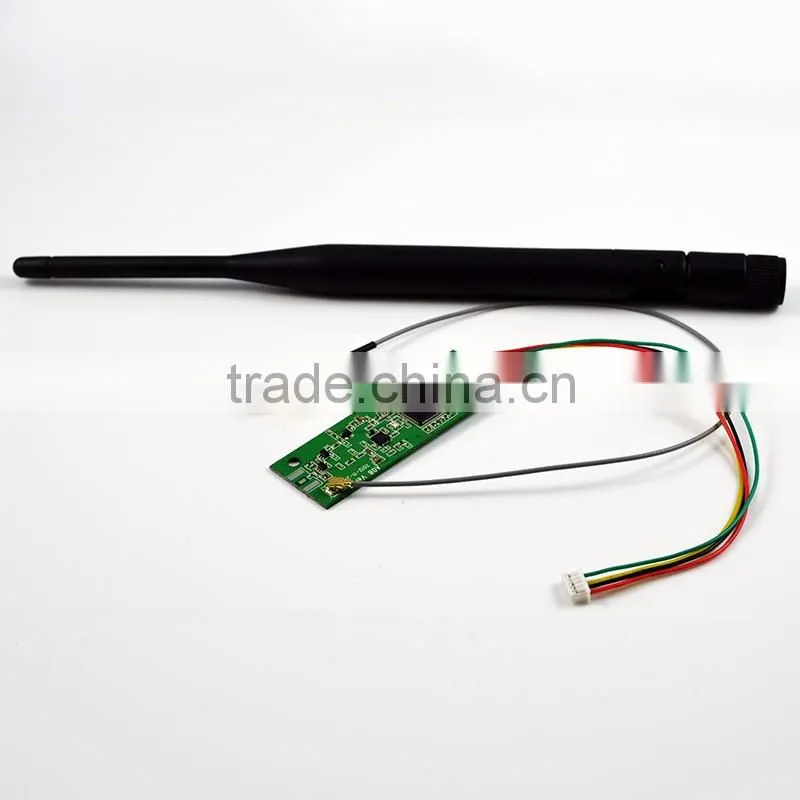

| WIFI # | 802.11b/g/n |
| Auto IRIS# | DC drive auto iris lens |

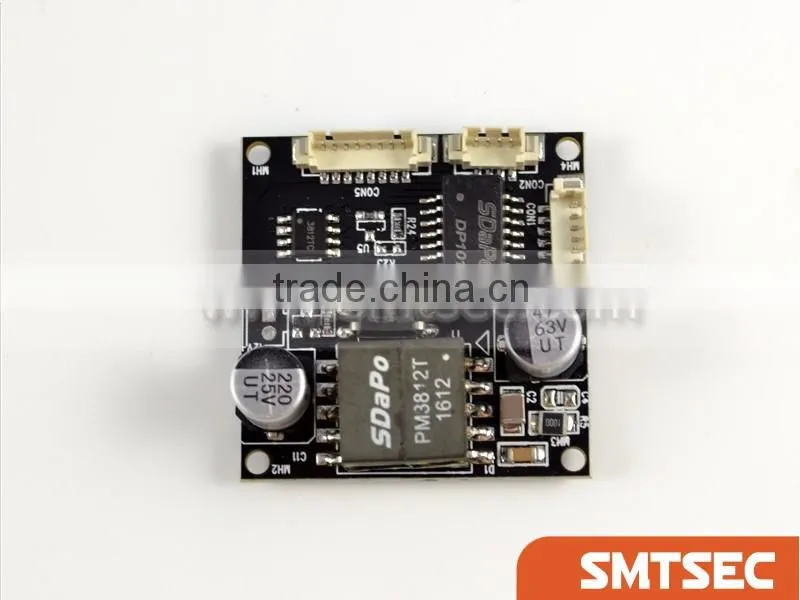

| POE # | IEEE802.3af |
| General | |
| Power Supply | DC12V |
| Power Consumption | <3W |
| Working Environment | -20°C~+55°C , Less than 90% RH |
| Product Size | 38 x 38 x 25mm |
| Net Weight | 0.2kg |
| #Remark: Auto iris,Electric zoom,WIFI,POE,TF Card functions are optional . If you need Auto iris,Electric zoom,WIFI,POE,TF Card functions, please consult with us. | |
Packaging & Shipping
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
Our Services
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
