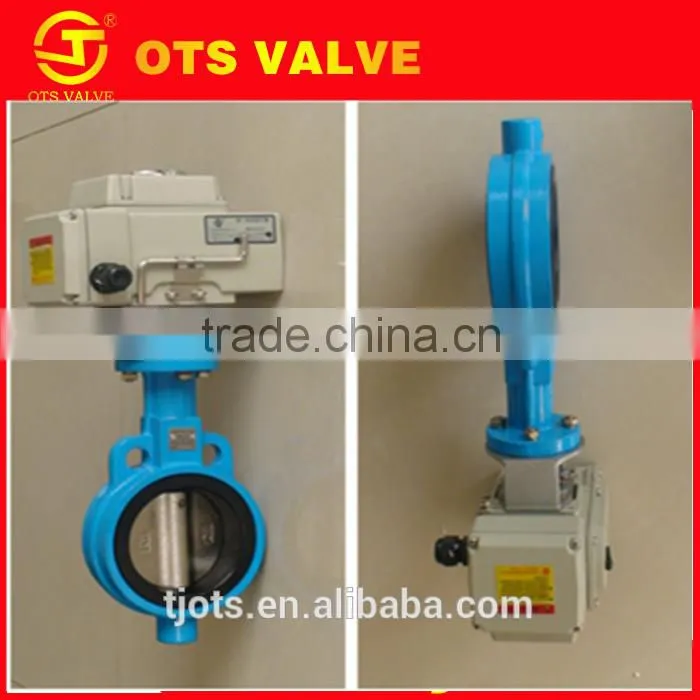

Motorized wafer butterfly valve pn10 description
We are professional butterfly motorized valve manufacturer, ,electrical wafer valve is our one of main valve . high quality electrical wafer butterfly valve is the introduction of similar designing and manufacturing advanced products and a series of new connection butterfly valve types from the United States and Germany. The electro valve types can be installed express, simple, safe, reliable and not subject to restriction on the installation site, facilitating the maintenance of piping and valves. Besides, the butterfly electro valve types can reduce noise and vibration, can overcome poor imitation caused by connecting pipelines to different axises, can solve the expansion caused by heat and contraction caused by cold. Widely used in transmission fluid to the drainage pipes, fire, air-conditioning, gas, petroleum, chemicals, water treatment, municipal, pipeline engineering and shipbuilding role as the control fluid.
Features and advantages of motorized butterfly valve
1. Small in size and light in weight. This electro valve can be installed easily, simple, safely, reliably
2. Not subject to restrictions on the installation site, it is convenient for pipelines and butterfly electro valves types to maintenance
The ball-and-socket valve board path causes the valve rotation to be flexible
The butterfly electro valve types disc is formed according to a complete sphere processing, each part of the packing surface is a spherical surface part, even the axial packing surface place in the top and the bottom of valve board is not exceptional. Although has contacted, when seal, such the packing surface is quite smooth. Therefore, the moment of the force is reduced, the sealing property is improved, especially the axial seal place friction is reduced, and the butterfly motor operated valve types seat life increases three times.
Technical data
As a professional butterfly electric motorized butterfly valve manufacturer, we can provide exact data:
| Product model | D971X |
| Nominal Pressure | PN1.0~1.6MPa |
| Nominal Diameter | DN50~1000mm |
| Suitable Medium | Water, Gas, Oil, etc. |
| Working Temperature | -23~121°c |
| Body | Casting/Ductile Iron/Stainless Steel |
| Stem | Stainless Steel/Carbon Steel |
| Disc | Casting/Ductile Iron/Stainless Steel/Carbon Steel/Titanium Steel |
| Pin | Steel/Iron |
Overall & connection dimensions
electric butterfly valve drawing:
Method of operation
1. Manual valves: handle out of the pipe into a parallel position, the valve in the open position, 90 centigrade angle, the valve in the closed position. Clockwise rotation of the handle is off the valves, and counterclockwise rotation of the handle to open the valve.
2. The valve of the worm gear: accordign to the part of the valve is installed indicating device identification, clockwise rotation of the handwheel off valve counterclockwise rotation of the handwheel to open the pressure reducing valve.
3. Pneumatic, electric, electro-hydraulic valve linkage operation, in accordance with the drive manual.
Our company introduction
Tianjin Ots Valve Manufacturering Co., Ltd., a jointed company, established during the time of China Reform and Open to the World. specializing in all kinds industrial butterfly valves with 13340 meters, including 8600m work shop, fixed finance of RBM 200 millions as well as some advanced design, processing, assembling and testing for all butterfly valves. Further we are rich in the experience of producing butterfly valves over more than 10 years, all of the butterfly valves we produced come up to the advanced standard home and abroad.
Our factory
Our certificate
Quality Management System Certification
---CE 0038 Certification
---ISO 9001: 2008 Certification
---Registration Certificate of Consignors and Consignees of Imports and Exports
---Certificate of approval
---PED Certification
---SHA Certification
---60055802 Certification
---KS Certification
---TS Certification
---Business license
---Organization Code Certificate
welcome to OTS
