High Quality Anti-condensation butterfly valve dn200 with spindle
Product Description
Rubber lined butterfly valve is a kind of valve with thick polymer lining on the body and disc. The lining makes
the body completely isolate from medium and provides excellent anti corrosive performance. It is designed as a device to shutoff or regulate the working medium flow and installed in pipelines or vessels with medium of acid, alkali, salt and oxidant, reducing agent, organic solvent in chemical, petroleum, pharmacy, food, iron and steel smelting, paper making, water power plant etc. It can be served as gate valve, globe valves as well as other shutting off or regulating valves.
Features and benefits
1, Convey slurry, minium liquid left in the pipe, low flow resistance,
rapid open-close, frequent operation.
2, Zero leakage in air test. Good sealing in bi-directional.
3, Easy dismantle and maintenance. Suitable for both vertical and horizontal installation.
4, Simple structure, small volume and light weight. Sensitive and adjustment in 0-90 degree.
5, Various materials suits to various working medium and working conditions.
6, Simple and compact structure, low operation torque, light weight and labor saving, rapid
open-close in 0-90 degree return.
7, Straight line flow characteristics. Optimum regulating performance.
8, The open & close test up to 10 thousands times and provides long service life.
9, A variety of operating mechanisms, such as electric, pneumatic and hydraulic suits to remote and
program control up on request.
10, It can be served as gate valve, globe valve, plug valve, rubber tube valve and diaphragm valve
etc.
Technical Data
DN (mm) Normal Diameter |
50(2’’)~1000(40’’) |
50(2’’)~800(32’’) |
|
PN (MPa) Normal Pressure |
1.0 |
1.6 |
|
Testing Pressure (MPa) |
Shell |
1.5 |
2.4 |
Sealing |
1.1 |
1.76 |
|
Working temperature |
-15 ~ + 150 |
||
Suitable medium |
Fresh water, sewage, sea water, air, steam, food, medicine, oils, acids etc |
||
Design standard |
API609 |
||
Structure length |
API609, EB558, DIN3202 K1, ISO5752 etc |
||
Body flange standards |
DIN2501, PN1.0MPa, PN1.6MPa,ASME125/150, BS4504, JISB2210 etc |
||
Testing standards |
API598 |
||
Top flange |
ISO 5211 |
||
Operating mode: |
bare shaft, worm gear+hand wheel, electric actuator, pneumatic actuator, hydraulic actuator, etc. |
||
Materials of main parts
No. |
Item |
Material |
Standards |
1 |
Body |
Cast iron |
ASTM A126B, GG25, EN-GJS-250, FC200 |
Ductile iron |
ASTM A536, GGG40, EN-GJS-400, FCD450 |
||
Carbon steel |
ASTM A216WCB, GS-C25, GP240, GH+N, SCPH12 |
||
Stainless steel |
ASTM A351 CF8/CF8M,1.4408/1.4301, BS970 304/316/316L, S15, SCS13/14 |
||
Bronze Al-Bronze |
ASTM B148-954, C954, EN1982 CC491K, ABLC2 |
||
2 |
Disc |
Ductile iron |
ASTM A536, GGG40, EN-GJS-400, FCD450 |
Carbon steel |
ASTM A216WCB, GS-C25, GP240, GH+N, SCPH12 |
||
Stainless steel |
ASTM A351 CF8/CF8M,1.4408/1.4301, BS970 304/316 S15, SCS13/14 |
||
Bronze Al-Bronze |
ASTM B148-954, C954, EN1982 CC491K, ABLC2 |
||
Coating |
EPDM, VITON, NYLON, PTFE |
||
3 |
Stem |
Carbon steel |
ASTM A216WCB, GS-C25, GP240, GH+N, SCPH12 |
Stainless steel |
ASTM A351 CF8/CF8M,1.4408/1.4301, BS970 304/316 S15, SCS13/14 |
||
Alloy |
Monel K500 |
||
4 |
Seat |
NBR(Nitrile) -20~80℃; EPDM -25~110℃; Heat resistant EPDM -25~130℃; Neoprene (CR) -25~110℃; Hypalon (CSM) -30~120℃; Viton (FKM) -20~200℃; Natural rubber (NR) -30~70℃; PTFE cover NBR -20~150℃; Full PTFE -205~180℃; Silicon (Q) -60~250℃ |
|
5 |
Bushing |
PTFE |
|
Bronze |
ASTM B62, JIS BC62 |
||
6 |
Pin |
Stainless steel |
ASTM A351 CF8/CF8M,1.4408/1.4301, BS970 304/316 S15, SCS13/14 |
Alloy |
Monel K500 |
||
7 |
O-ring |
NBR; EPDM, Viton |
|

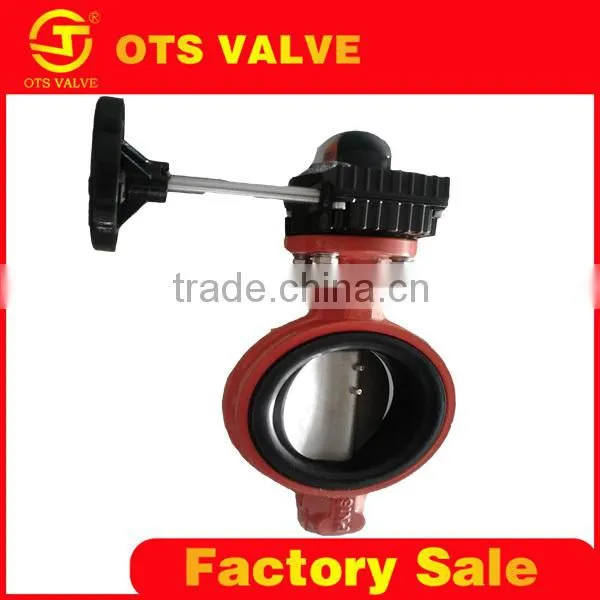

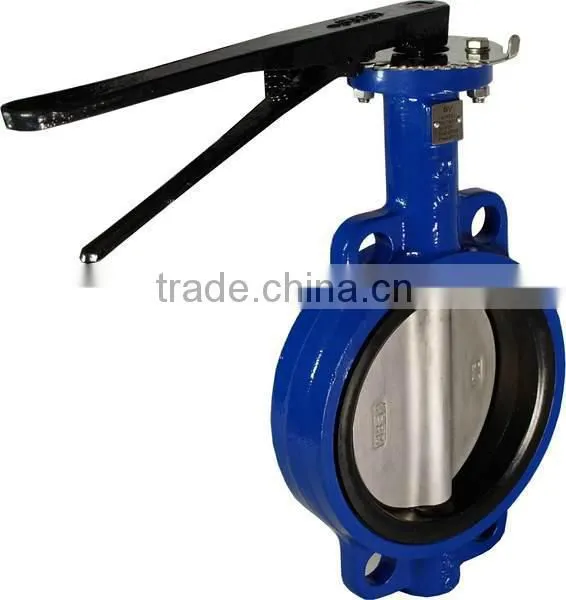

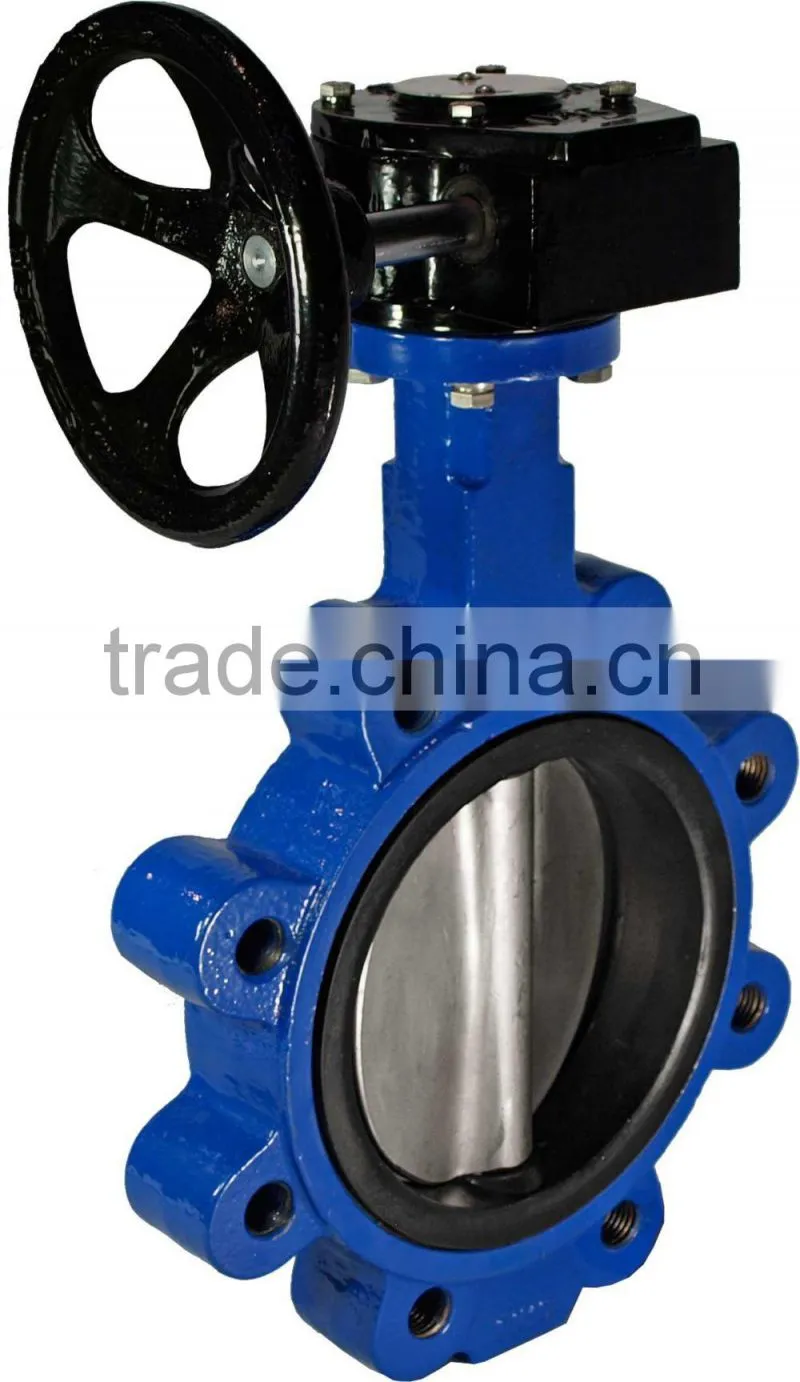

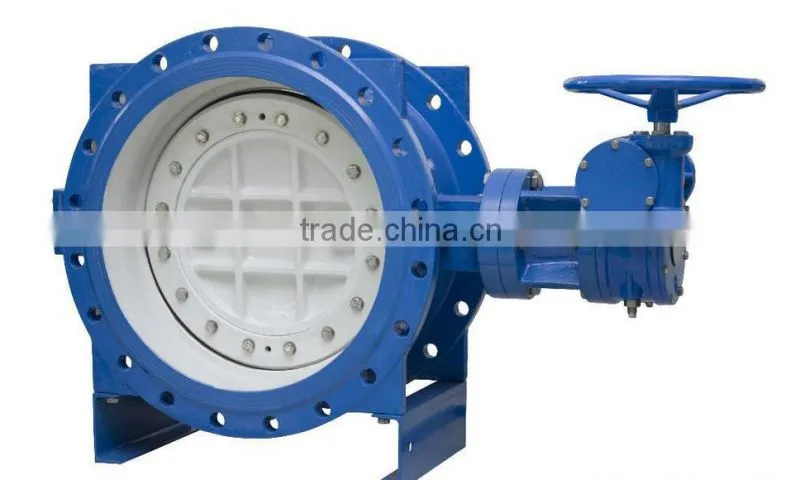

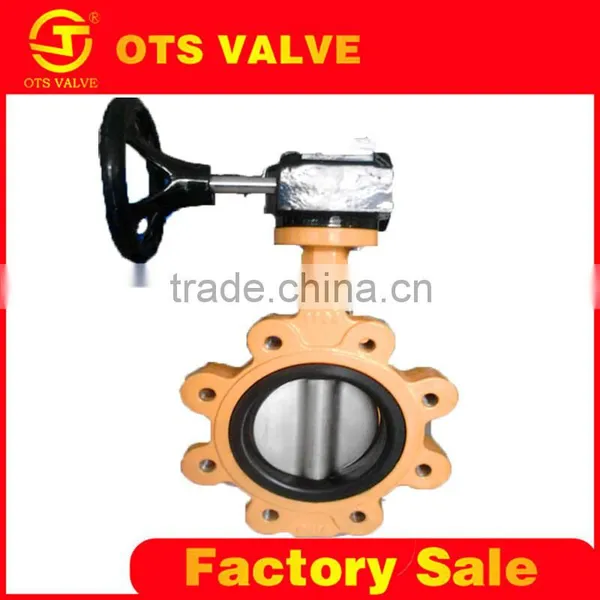

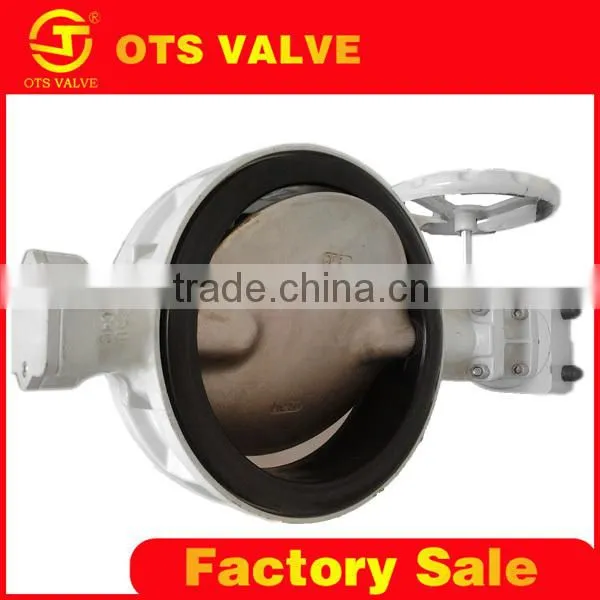

Product Pictures
Company Profile
Tianjin OTS valve manufacturing Co., Ltd is a professional valve manufacturer of butterfly valve, ball
valve, check valve, gate valve, dismanting joints etc. With size from Dn40~DN4000 and different
materials for body, disc, stem, pin, sealing, seat and working pressure 0.25MPa~2.5MPa, which are applied in the water industry, municipal engineering, petroleum & chemical, metallurgy, electric power etc.
OTS Butterfly Valves are available manufactured with various strongest and durable materials, such
as: Stainless Steel, Carbon Steel, Alloy Steel, Aluminum Bronze, and available in different types
Butterfly Valves. To meet your required Butterfly Valve specifications, please contact us to confirm the specifications and other requirements.

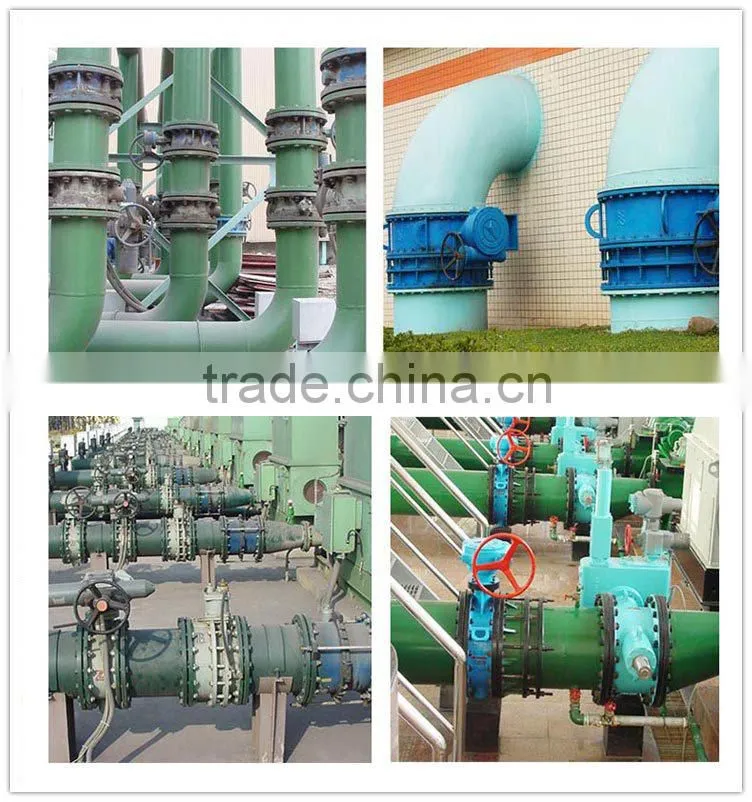

Applications
Certificates
Contact
Peter Fan
Tianjin OTS valve manufacturing Co., Ltd
Mob : +86 159 2219 7471 | QQ:296677030 | Working Skype: fan870819 Email: otsvalve03 at otsvalve dot com
