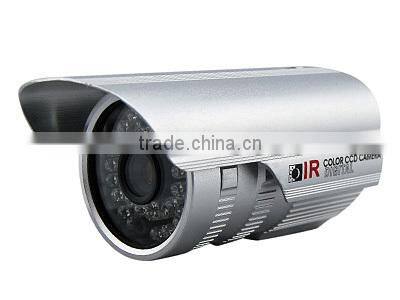

Free Bracket 1/3"CMOS 8510 DSP IP66 Analog 1200TVL CCTV IR Camera (SC-W02K)

Optional Model

Chipset/TVL

SC-W01D

1/4"CMOS 700TVL 0.1Lux/F1.2

SC-W01K

1/3" CMOS 1200TVL 0.01Lux/F1.2 IR-CUT

SC-W01EF

1/3" SONY CCD 700TVL 0.001Lux/F1.2  Effio-E 2DNR DWDR SONY 4140 DSP

SC-W01A10

AHD 720P 1/4"CMOS IR-CUT

SC-W01A13

AHD 960P 1/3"CMOS IR-CUT

SC-W01A20

AHD 1080P 1/2.8"CMOS IR-CUT

SC-W01C13

HD-CVI 960P 1/3"CMOS IR-CUT

SC-W01C20

HD-CVI 1080P 1/3"CMOS IR-CUT

Model

SC-W02D

SC-W02K

SC-W02EF

Camera

Waterproof IR Camera

Image Sensor

1/4"CMOS

1/3" CMOS

1/3" SONY CCD

DSP Technology

8510

8510

SONY 4140 DSP

Signal System

PAL /NTSC

Effective Pixels

720(H)×576(V)

1280(H)×720(V)

NTSC:976(H) X 494(V)
PAL:976(H) X 582(V)

Resolution

700TVL

1200TVL

700TVL

Minimum lllumination

Color(0.1 Lux/F1.2), B/W(0 Lux/F1.2,IR On)

Color(0.01 Lux/F1.2), B/W(0 Lux/F1.2,IR On)

Color(0.001 Lux/F1.2), B/W(0 Lux/F1.2,IR On)

IR CUT

N/C

Support

N/C

Features

AGC

Auto

BLC

Auto

White Balance

Auto

Day&Night

Auto

Shutter

1/50(1/60) ~ 1/100,000 Sec.

S/N Ratio

More Than 48dB (AGC Off)

Lens

Focal Length

3.6mm/F2.0

Lens Type

board Lens

Mount Type

M12X0.5

Option Lens

 3.6/6/8/12mm lens

IR

Infrared Luminary

36 pieces IR-LED

Infrared Wavelength

850 nm

Illuminate Distance

More than 30 M

General

Waterproof Criterion

IP66

Video Output

1.0vp-p 75Ω BNC Connector

Working Environment

-30°C~+60°C / <95%RH

Power supply

DC12V±10%

Operating Current

IR On:500mA max., IR Off:Less than 120mA

Product Size

130X80X80mm

Package Size

200x115x100mm

Net weight

0.4KG
