2015 NEW products 2.4G Wireless Camera, 380TV Line 1/3" CMOS Built-in microphone for audio monitoring(SC-G03)
SC-G03
380 TV Lines of horizontal definition
Easy installation
4 channels available without interference
Built-in microphone for audio monitoring

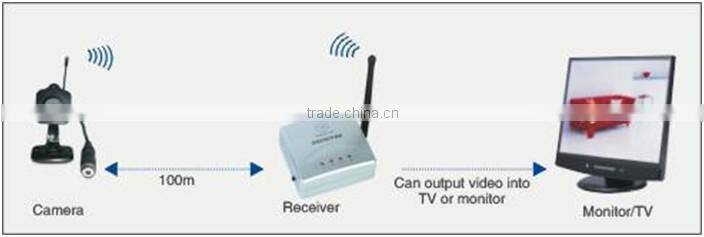

100m transmission distance without block
Item |
Value |
||
Transmission Frequency |
ISM 2,400 MHz~2,483 MHz 4CH |
||
Modulation Mode |
FM |
||
Unobstructed Effective Range |
100m(Without Block) |
||
Operating Temperature |
0℃~ +50℃ / +32℉~ +122℉ |
||
Storage Temperature |
-20℃ ~ +60℃ / -4℉ ~ +140℉ |
||
Operating Humidity |
85%RH |
||
CAMERA |
TV System |
PAL |
NTSC |
Validity Pixel |
628(H) x 582(V) |
510(H) x 492(V) |
|
Image Device |
1/3" OmnVision CMOS |
||
Horizontal Definition |
380TV Line |
||
Angular Field of View |
45° (f=6mm) |
||
Minimum Illumination |
3.0Lux(F1.2) |
||
Scanning Frequency(H) |
15.625KHz |
15.734KHz |
|
Scanning Frequency(V) |
50Hz |
60Hz |
|
Power Adapter |
DC 8V/500mA |
||
Dimension |
35x25x53mm |
||
Weight |
45g |
||
RECEIVER |
Receiving Sensitivity |
≤-85dBm |
|
Video Output |
1Vp-p@75Ω,S/N>38dB |
||
Audio Output |
10KΩ/200mVp-p |
||
Power Adapter |
DC 12V/500mA |
||
Dimension |
96x79x30mm |
||
Weight |
114g |
||
Antenna |
50ohm SMA |
||
Intermediate Frequency |
480MHz |
||
Frequency Stabilization |
± 100MHz |
||
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
