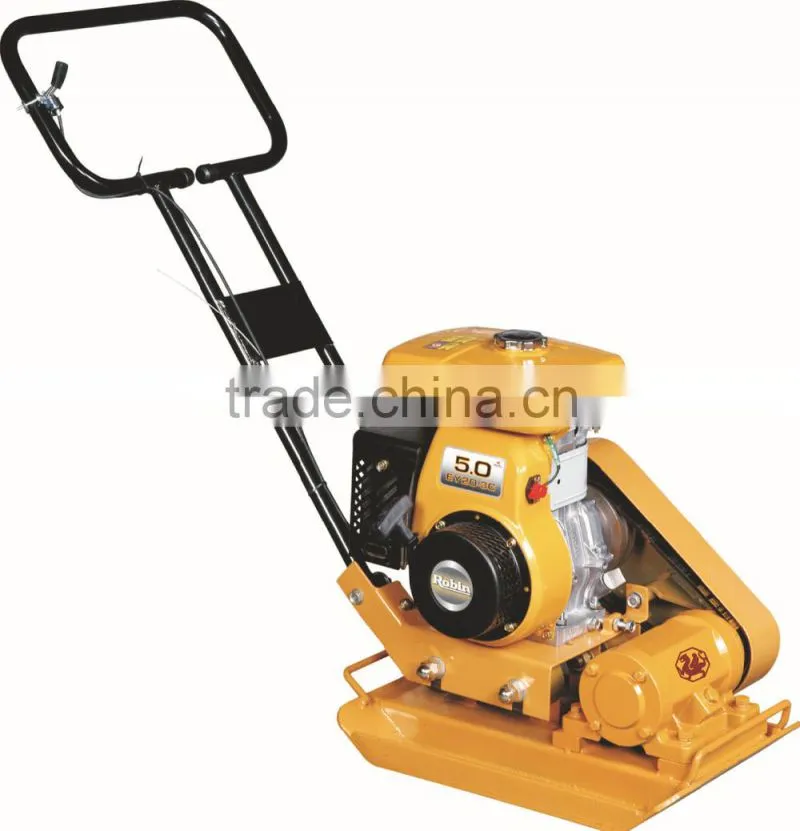

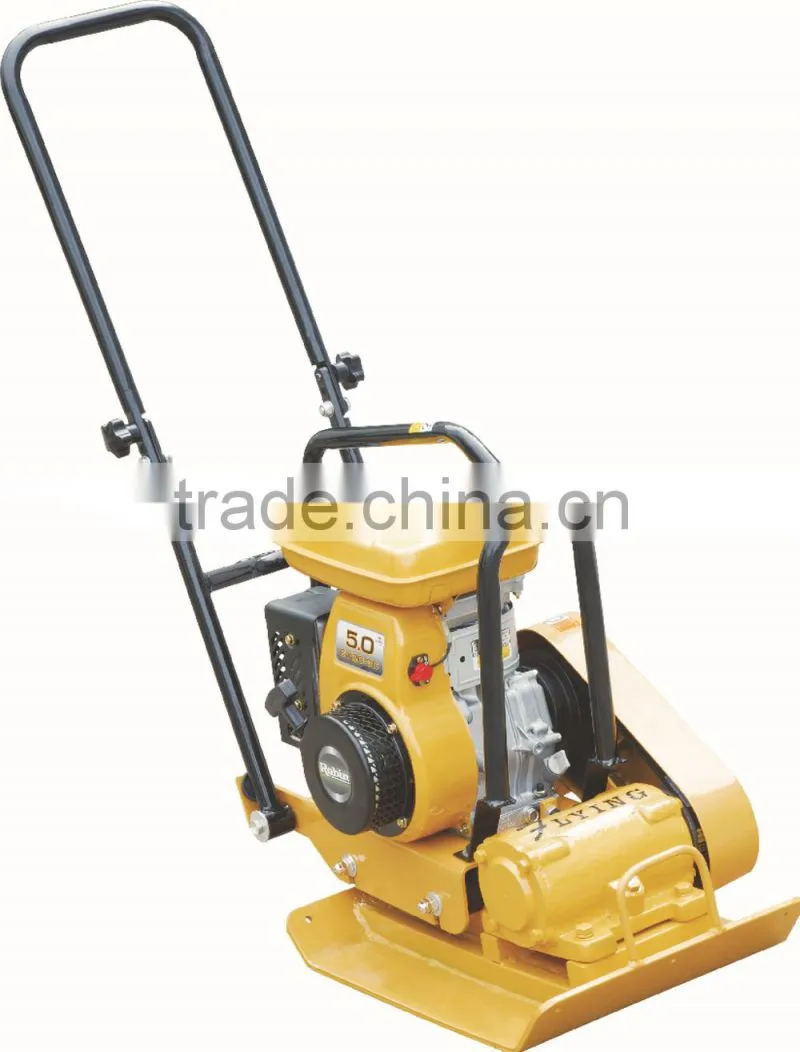

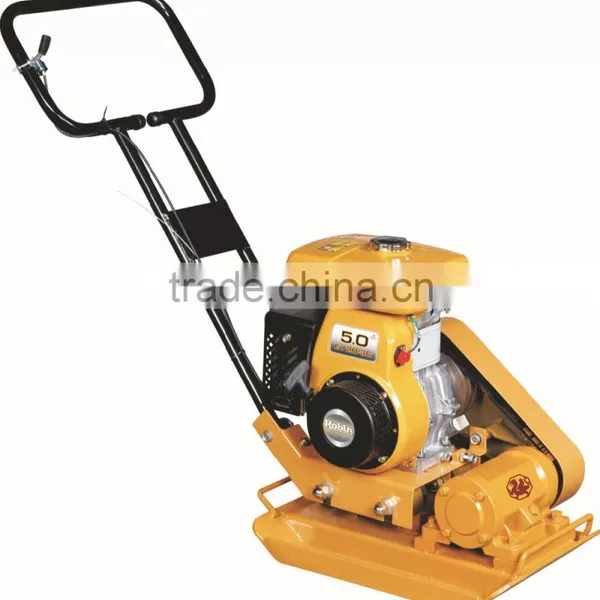

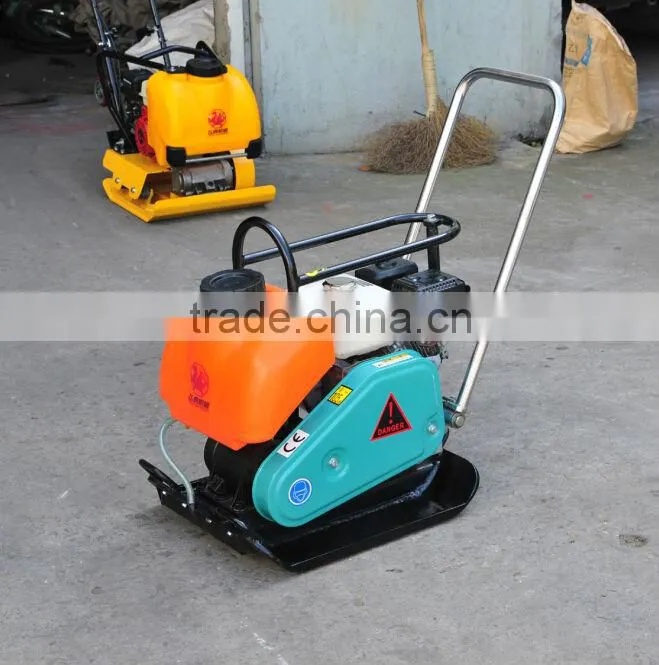

65KG Small Vibration plate compactor
Application:
Mechanical control system reflects a reliabilityk economy with machine and low maintenance design, compaction depths up to 900mm. Sewer trenches, general road-building projects, compacting foundations and backfills are all standard jobs for our heavy-duty plate compators.
Features and Benefits:
*Open plate provides self cleaning
*Complete sealed belt cover to prevent sand and soil in.
*Built-in wheels for easy transport.
*Radius base plate for easy access to corners
*Throttle control for easy holding working speed. (Throttle control is available as optional)
*Heavy-duty shock mounts reduce vibration to the upper engine and handle.
Specifications:
Model |
C60-2 |
C90 |
C160 |
C180 |
Frequency(RPM) |
3600 |
3600 |
3600 |
3600 |
Centrifugal(KN) |
10 |
15 |
18 |
27 |
Brand of engine |
Lifan,Honda or Robin |
Lifan,Honda or Robin |
Lifan,Honda or Robin |
Lifan,Honda or Robin |
Power of engine(HP) |
5-5.5 |
5-5.5 |
5-5.5 |
7.5-9.5 |
Plate size(mm) |
510*350 |
550*420 |
500*585 |
690*480 |
Gradeability degrees |
20 |
20 |
20 |
20 |
|
Working speed (m/min) |
20 |
20 |
20 |
20 |
Net weight (kg) |
65 |
85 |
100 |
140 |
Gross weight |
68 |
90 |
105 |
150 |
Packing way |
Caron |
Caron |
Caron |
Caron |
C-60
C-95
C-100
1. For our MACHINE , we have 12 months warranty
2. Within12 months, if there is some accessory going wrong, we will send you the accessory at once, free of charge or deliver the spare parts in next order
3. No responsibility for man-made destroy
4. If the buyer has any questions from our technical department, we can supply on-line service
Established in 1990, Ningbo Yinzhou Feihu Machinery Co.,Ltd. is one of the earlist professional manufacturers in construction machinery. With the spirit of "Being professional and doing the best", we have gradually developed into a big factory for the 20 years. We are supplying construction machinery such as Concrete Vibrator, Plate Compactor, Power Trowel, Concrete Cutter,
Water Pump, Hand Insertion Vibrator, Rammer, Steel Cutter, Steel Bender, Concrete Mixer, Lifter, Concrete Screed, Vibratory Roller
and so on.
MOQ,Payment,Loading port,price term,OEM
1.Payment : I:100% T/T
II:30% advaced and the balance paid before delivery
III:credit letter at sight
2.MOQ:5Pcs
3.Port of loading: Ningbo Port or Shanghai
4.Price term:FOB Ningbo price
5.OEM:we are pleased to be your OEM factory
Why chose us
1) The specialized production : our factore is professionally engaged in the production of construction machinery for 20 years
2) Excellent geographical location : our factory is close to Ningbo Lishe Airport
3)Lowest prices anywhere:we offer to beat any competitor's delivered price within one year for the date of purchase-event if it's an advertised special
4) Quick time for delivery:The delivery time is 15days after recieve the deposit
