wood chipper / machine for wood chips / chipping machine !
Introduction:

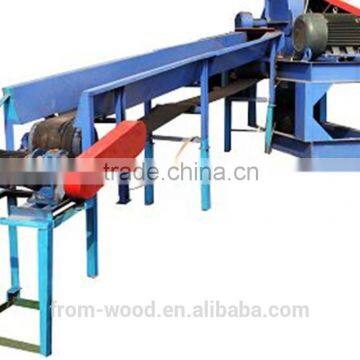

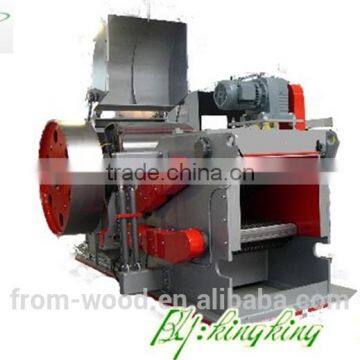

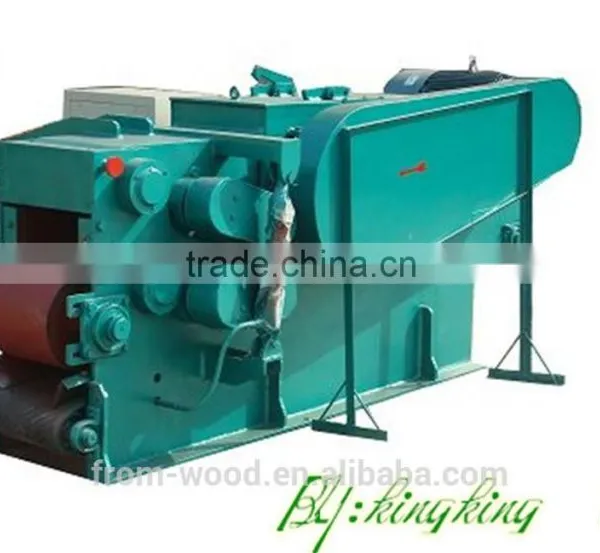

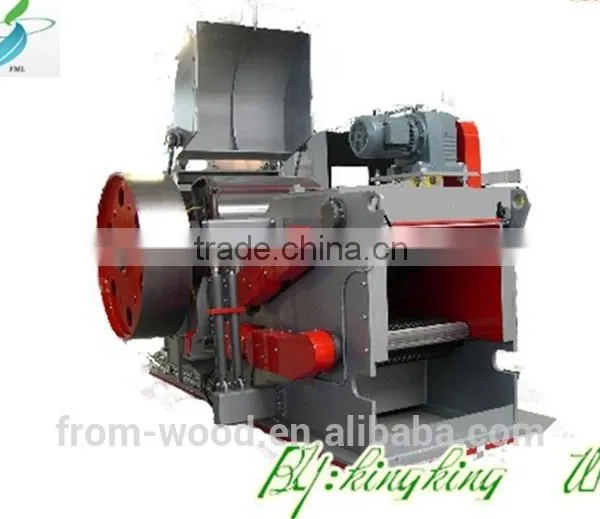

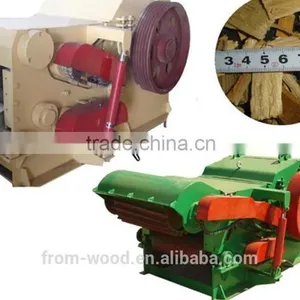

DRUM CHIPPER:
The drum chipper products are special equipment for productiom of wood chips ,the products is widely used in particleboard mill ,high-density fiberboard factory ,stubble plant biomass power plant ,wood chip plant an other industrial and production fctories in the preparation section before preferred equipment.

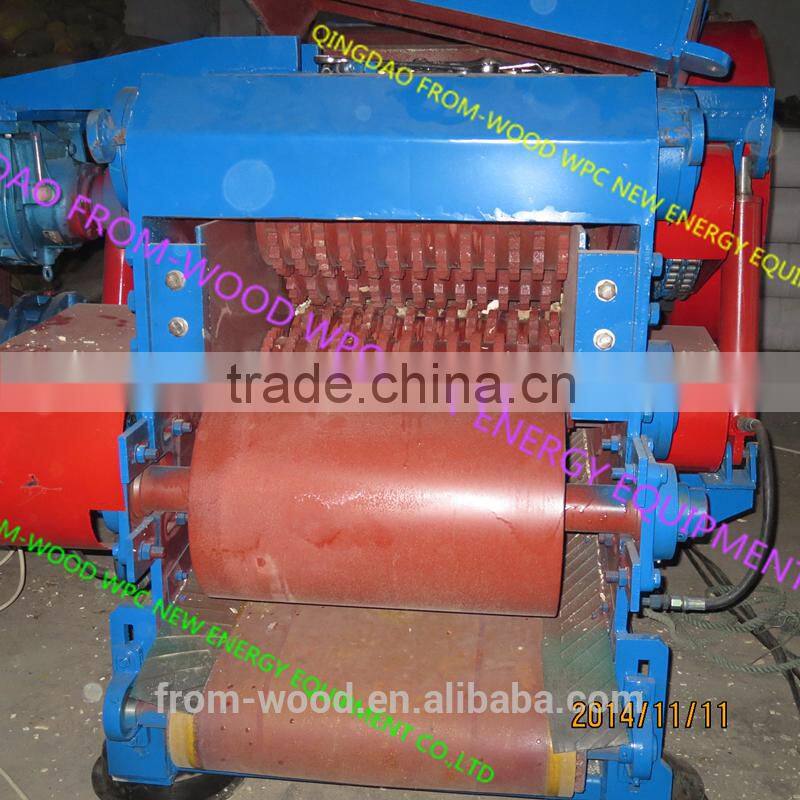

Mchine includes body ,knif rolls ,the upper and lower fed roolers ,conveyor belts,hydraulic system components.
The body is ade of high strength steel plate welded ,which is a supporting foundation of the entire machine.
Scope of application:
The main raw material of the cutting is small diameter wood ,non-wood raw materials ,such as sugar cane ,reed ,bamboo,timber harvesting ,processing reidues and branches ,twigs ,slab ,crates,logs and core ,waste veneer ,etc.can also be used to cut the etc.
Parameters:
| Model | BX213 | BX215 | BX216 | BX218 |
| Q'ty of knives | 2 | 2 | 2 | 2 |
| Size of input | 300*130 | 180*400 | 240*540 | 310*680 |
| Max diameter mm | 120 | 160 | 230 | 350-400 |
| Length of wood chips mm | 20-35 | 35 | 35 | 15-35 |
| Capacity t/h | 2-3 | 5-8 | 8-12 | 10-20 |
| Power kw | 30-37 | 45 | 55 | 110 |
| Feed Roll Motorpower kw | 5.9 | 2.2*2 | 3*1 4*1 | 2*4 |
| Weight t | 1.9 | 2.9 | 4.07 | 7 |
| Size mm | 1600*1000*1400 | 1540*1240*1020 | 1980*1950*1250 | 2300*2150*1500 |

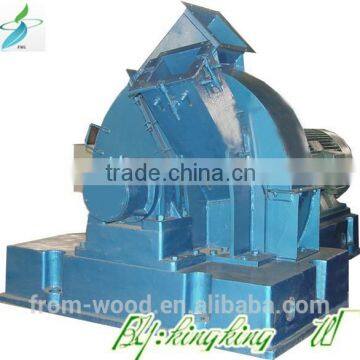

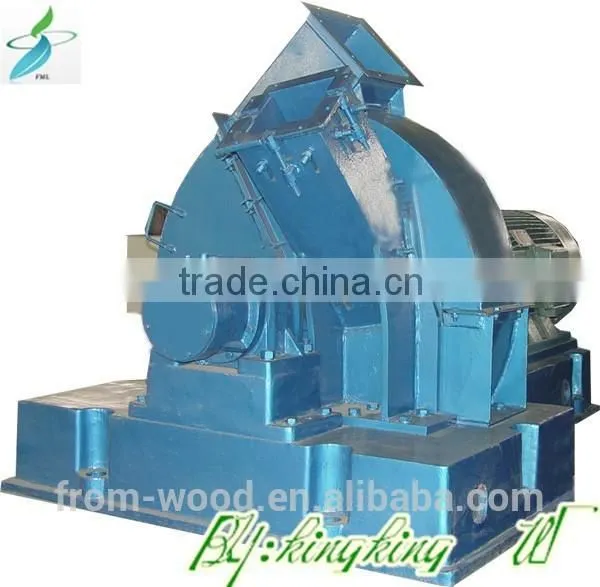

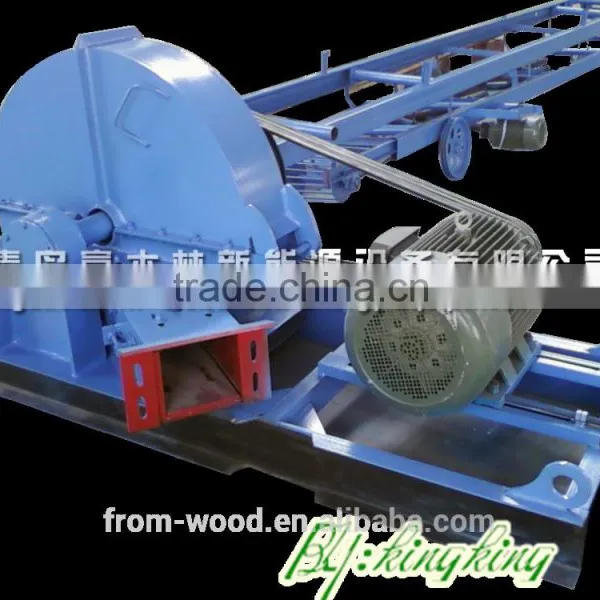

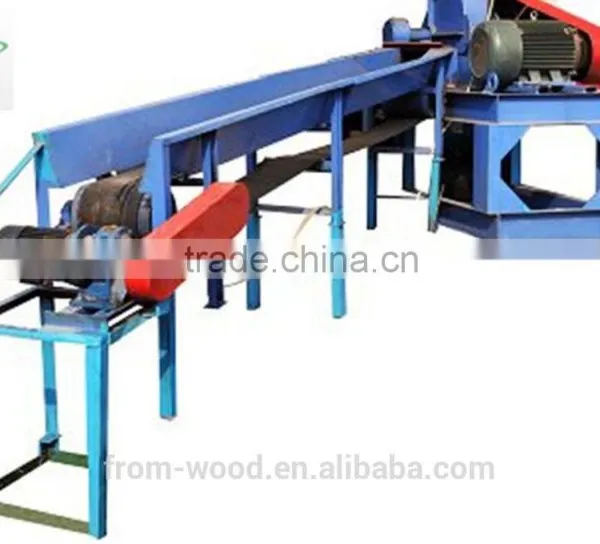

DISK CHIPPER:
Our disk chipper is a special equipment for the production of high-quality wood chips,which is widely used in the industrial production of the paper ,particleboard ,MDF,wood chips preparation section.The main raw material is wood logs.
This series of wood chipper has compact structure ,reasonable layout ,easy installation ,operation and maintenance ,high production capacity ,when cuts logs ,high quality wood chips ,and the chip length can be adjusted freely within the limits prescribed ,advnced disk wood chips machine.
Scope of application:
All kinds of wood logs ,some small branches ,bamboo ,wood slabs and some wood corners.
Parameters:
| Model | BX600 | BX800 | BX950 | BX1710 |
| Q'ty of knives | 3 | 4 | 6 | 6 |
| Max diameter mm | 130 | 150 | 200 | 200 |
| Length of wood chips mm | 20~35 | 20~35 | 20~35 | 20~35 |
| Capacity t/h | 1-3 | 3-6 | 6-10 | 5-8 |
| Power of motor kw | 1.5-22 | 30-37 | 55 | 45-55 |
| Weight t | 0.88 | 1.68 | 2.18 | 2.18 |
| Size mm | 1600*1000*1400 | 1800*1100*1500 | 2500*1180*1250 | 2500*1180*1250 |
