Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > BIS NO.:R-41033928 LED Panel Lights 600x600 36W/40W/48W Led Panels CCT 5700K
BIS NO.:R-41033928 LED Panel Lights 600x600 36W/40W/48W Led Panels CCT 5700K
US$ 1 - 100
MOQ: 500 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Epistar SMD2835
Warranty(Years):
2
Input Voltage(V):
AC85-265
Payment & Shipping
Payment Methods:
Port of Shipment:
Shengzhen/ Guangzhou /Zhongshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LED Panel Lights 600x600 36W/40W/48W Led Panels 2ft x 2ft Led Panel Light CCT 5700KUS$ 1 - 100MOQ: 500 Pieces -
60w LED Panel Lights 600x600 2ft x 2ft Led Panel Light CCT 5700KUS$ 1 - 100MOQ: 500 Pieces
-
48w Led Panel Light 600 600 China Led Panel CCT 4000KUS$ 13.5 - 14.5MOQ: 15 Pieces
-
48w Led Panel Light 600 600 China Led Panel CCT 5700KUS$ 13.5 - 14.5MOQ: 15 Pieces
-
Aluminum Housing 60w Led Panel 600x600 2ft x 2ft Led Panel LightUS$ 11.5 - 14.5MOQ: 15 Pieces
LED Light Source
Epistar SMD2835
Warranty(Years)
2
Input Voltage(V)
AC85-265
Lamp Power(W)
36
Lamp Luminous Flux(lm)
3600
Lamp Luminous Efficiency(lm/w)
100
Color Temperature(CCT)
Cool White
Working Temperature(℃)
-20, 105
Working Lifetime(Hour)
60000
Lamp Body Material
Aluminum Alloy
IP Rating
IP66
Certification
CCC, CE, EMC, Energy Star, FCC, SASO, UL
Place of Origin
Guangdong, China
Brand Name
Faner
Model Number
LED Panel Light

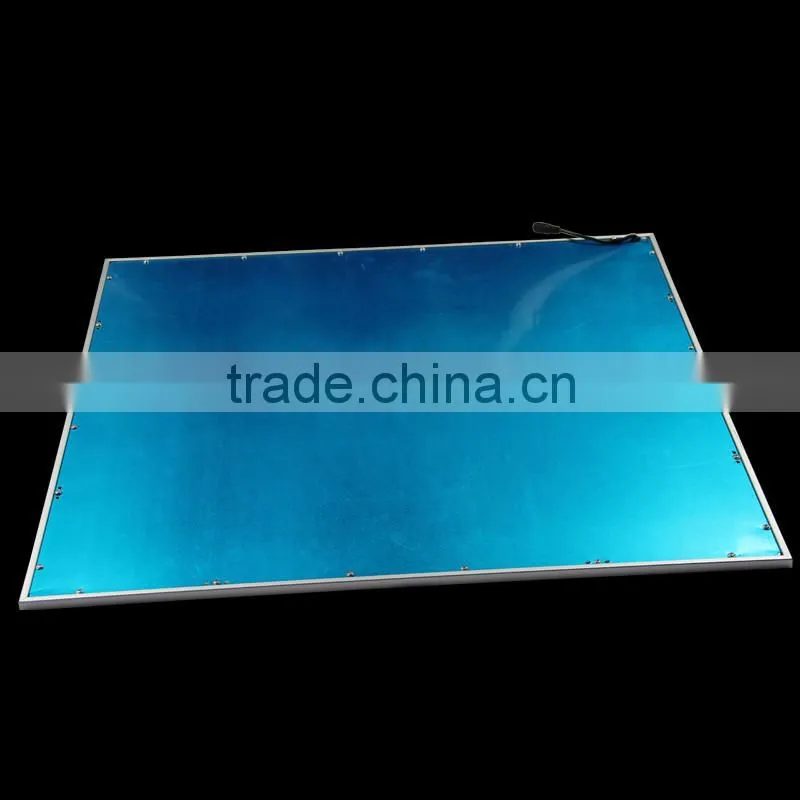

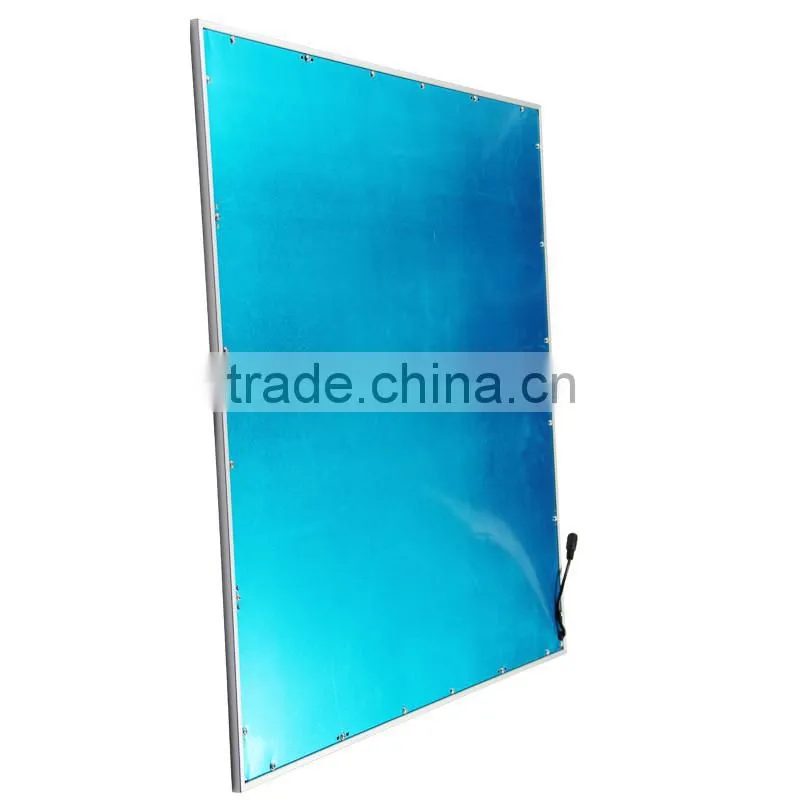

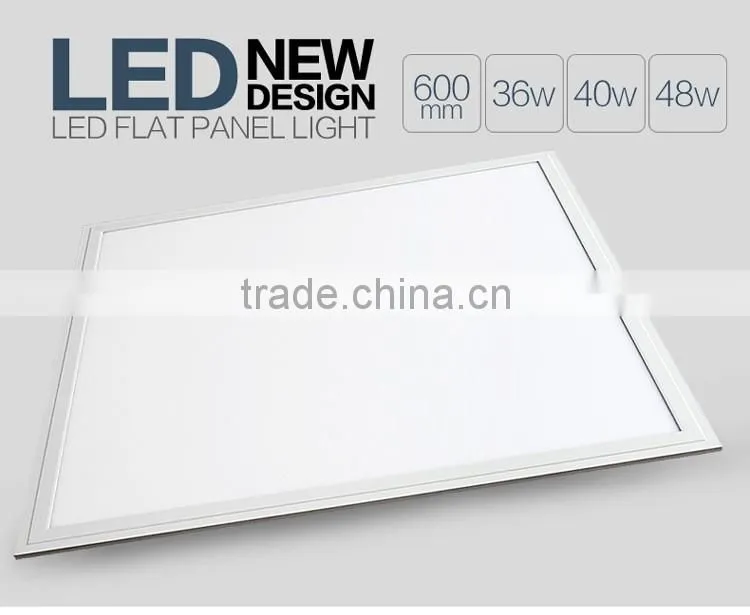

BIS NO.:R-41033928 LED Panel Lights 600x600 36W/40W/48W led panels CCT 5700K
Product Description
led panel light 600x600
| Part No. | Panel Size | LED | Input | Input | Lumen Output (±10%) | PF | RA | Warranty |
| Q'ty | Power | Voltage | 5700-6500K | |||||
| FN3-3318 | 295×295×10mm | 90pcs | 18W | 100-277V | 1450±10%LM | >0.95 | >80 | 3 years |
| FN3-3620 | 295×595×10mm | 100pcs | 20W | 100-277V | 1600±10%LM | >0.95 | >80 | 3 years |
| FN3-3636 | 295×595×10mm | 180pcs | 36W | 100-277V | 3250±10%LM | >0.95 | >80 | 3 years |
| FN3-6636 | 595×595×10mm | 180pcs | 36W | 100-277V | 3250±10%LM | >0.95 | >80 | 3 years |
| FN3-6640 | 595×595×10mm | 200pcs | 40W | 100-277V | 3500±10%LM | >0.95 | >80 | 3 years |
| FN3-6640 | 595×595×10mm | 200pcs | 40W | 100-277V | 4000±10%LM | >0.95 | >80 | 3 years |
| FN3-6648 | 595×595×10mm | 240pcs | 48W | 100-277V | 4320±10%LM | >0.95 | >80 | 3 years |
| FN3-6660 | 595×595×10mm | 300pcs | 60W | 100-277V | 5300±10%LM | >0.95 | >80 | 3 years |
| FN3-6240 | 620×620×10mm | 200pcs | 40W | 100-277V | 3500±10%LM | >0.95 | >80 | 3 years |
| FN3-6260 | 625×625×10mm | 300pcs | 60W | 100-277V | 5300±10%LM | >0.95 | >80 | 3 years |
| FN3-1120 | 145×1195×10mm | 240pcs | 48W | 100-277V | 2000±10%LM | >0.95 | >80 | 3 years |
| FN3-3136 | 295×1195×10mm | 180pcs | 36W | 100-277V | 3250±10%LM | >0.95 | >80 | 3 years |
| FN3-3140 | 295×1195×10mm | 200pcs | 40W | 100-277V | 3500±10%LM | >0.95 | >80 | 3 years |
| FN3-3148 | 295×1195×10mm | 240pcs | 48W | 100-277V | 4320±10%LM | >0.95 | >80 | 3 years |
| FN3-3160 | 295×1195×10mm | 300pcs | 60W | 100-277V | 5300±10%LM | >0.95 | >80 | 3 years |
| FN3-4148 | 445×1195×10mm | 240pcs | 48W | 100-277V | 4320±10%LM | >0.95 | >80 | 3 years |
| FN3-6148 | 595×1195×10mm | 240pcs | 48W | 100-277V | 4320±10%LM | >0.95 | >80 | 3 years |
| FN3-6172 | 595×1195×10mm | 360pcs | 72W | 100-240V | 6300±10%LM | >0.95 | >80 | 3 years |
1. Different size: 300*300 300*600 600*600 600*1200 300*1200 620*620
2. Power Optional :18w 20w 36w 40w 45w 48w 60w 72w
3. LED Chip Details: High brightness SMD 2835 chip, 90-100lm/w , CRI >80.

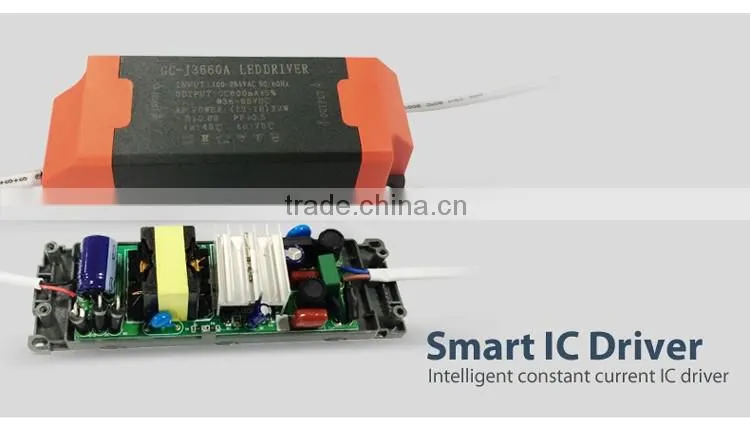

4. Driver: PF > 0.9 Top branded isolated driver.

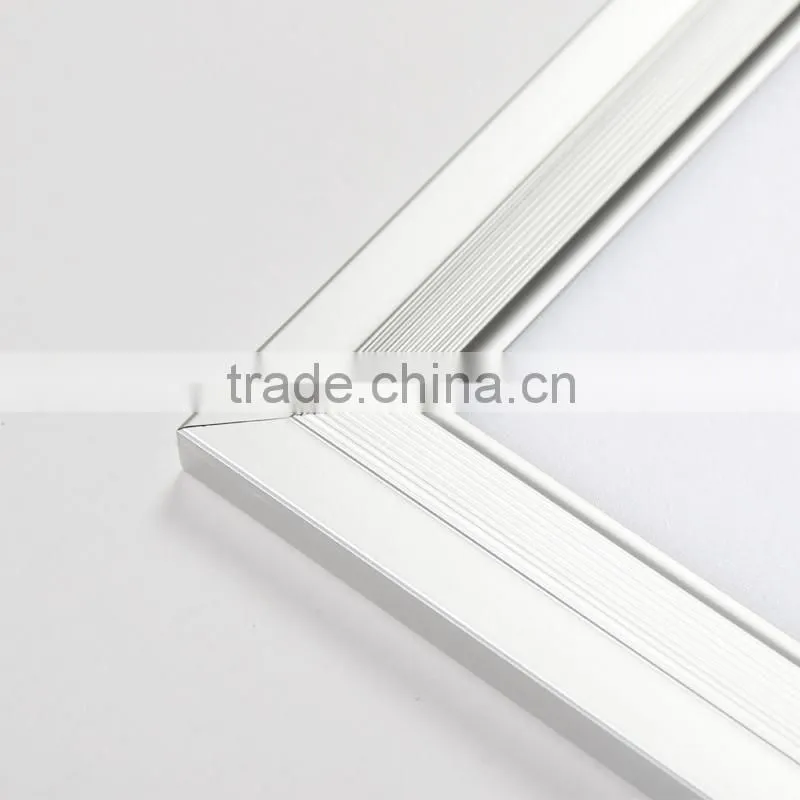

5. LGP Brand: PMMA Diffuser. Mitsubishi laser guide plate + aluminium frame
6. Dimmable: Triac dimmable , Dali dimmable, 0-10v dimmable wide dimming range 0-100%.
7. Certificates: CE ROHS TUV ERP SAA
8. Market Area: 20,000pcs monthly to Different markt, main market are Europe, America, Australia.
9. Offer: Standard package, fast delivery.
LED Panel Light 600x600 - Product Details.:

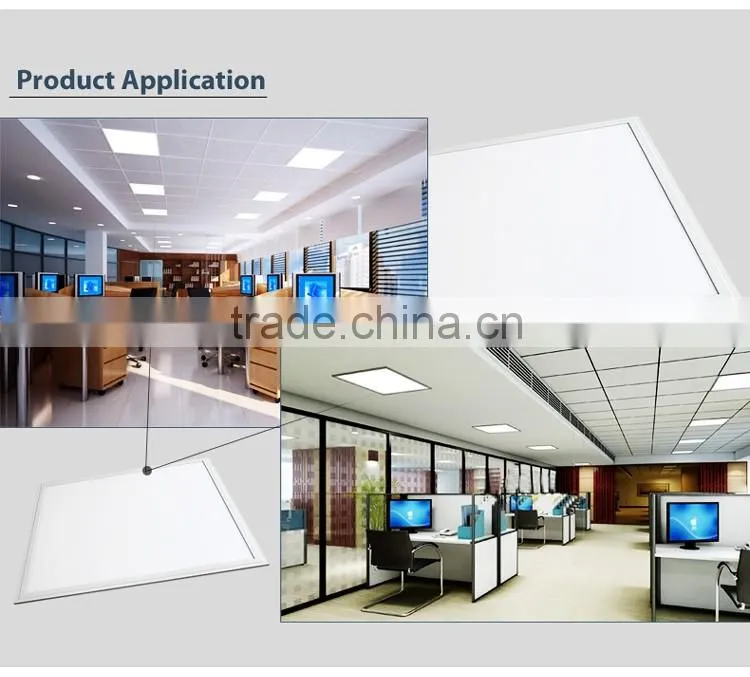

led panel light 600x600 Application:
Bedroom /Living room /Reading room/ Home /Library/Office/Washroom/Bar/
Coffee House/ Supermarket/ Hotel/ Restaurant/ Dining room/ Convenience store
