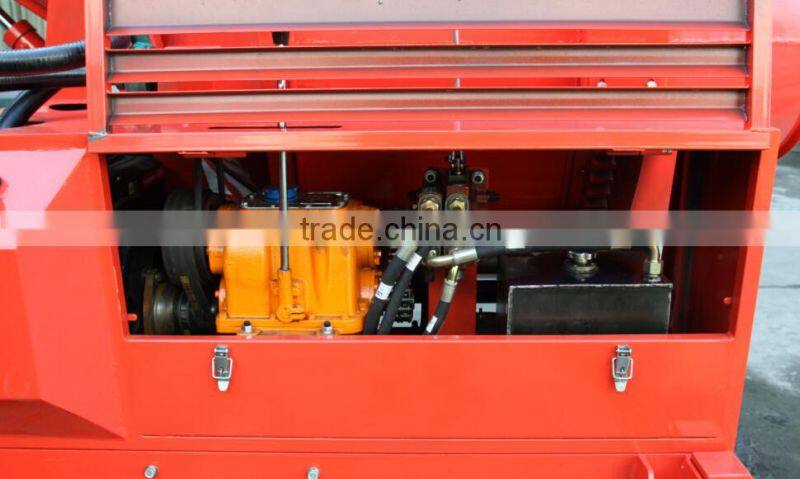

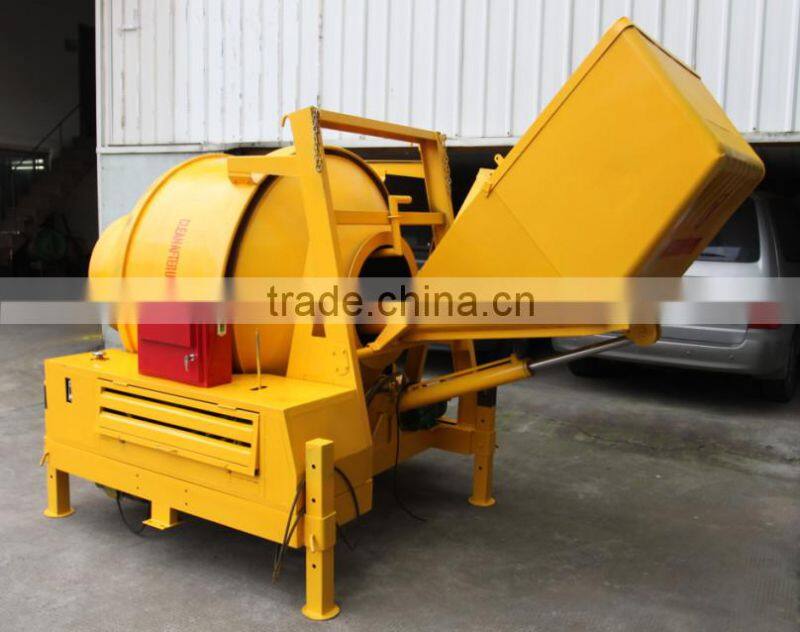

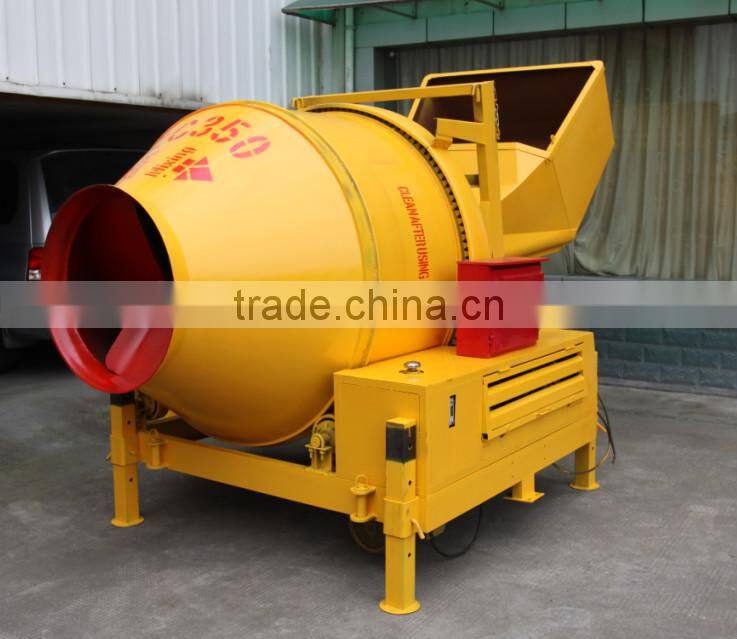

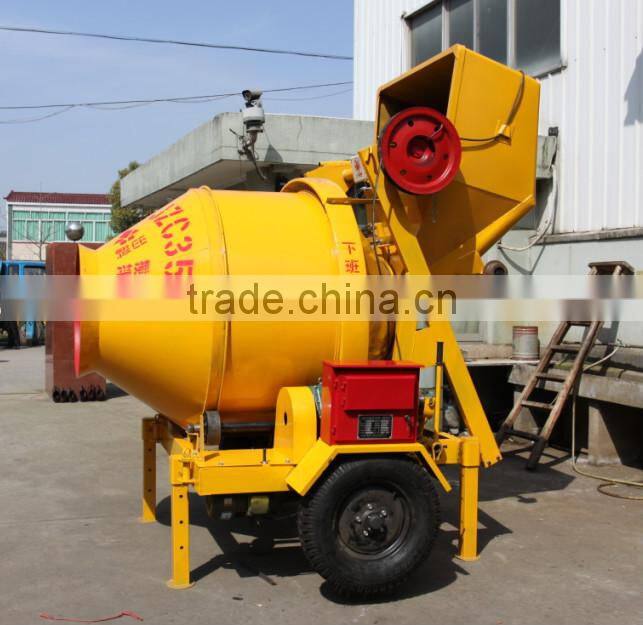

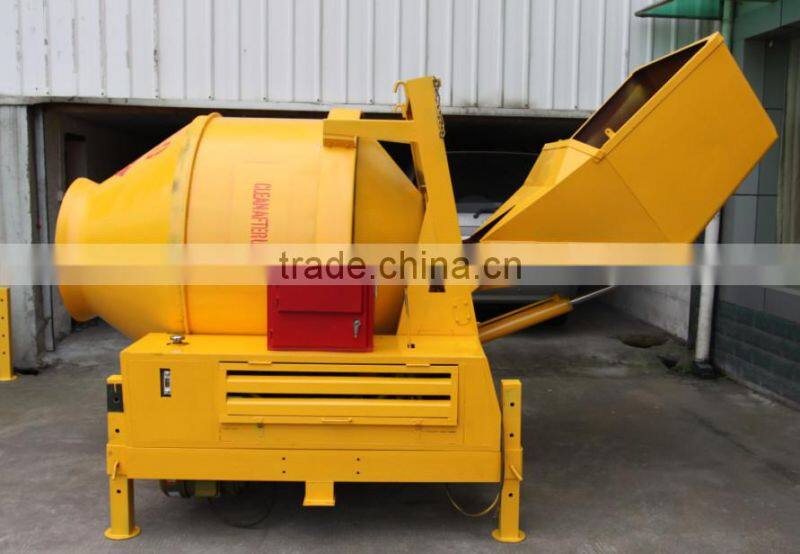

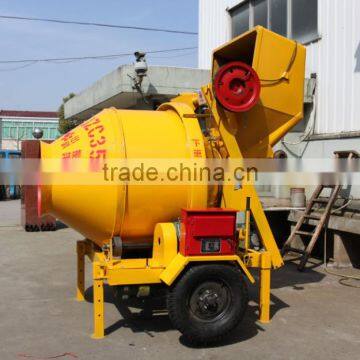

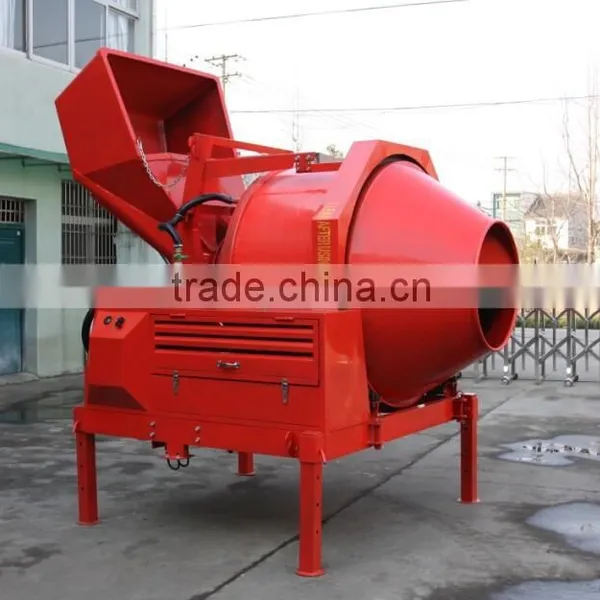

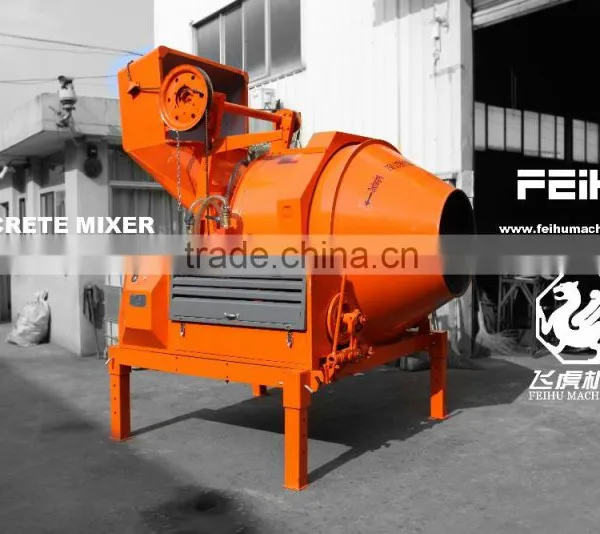

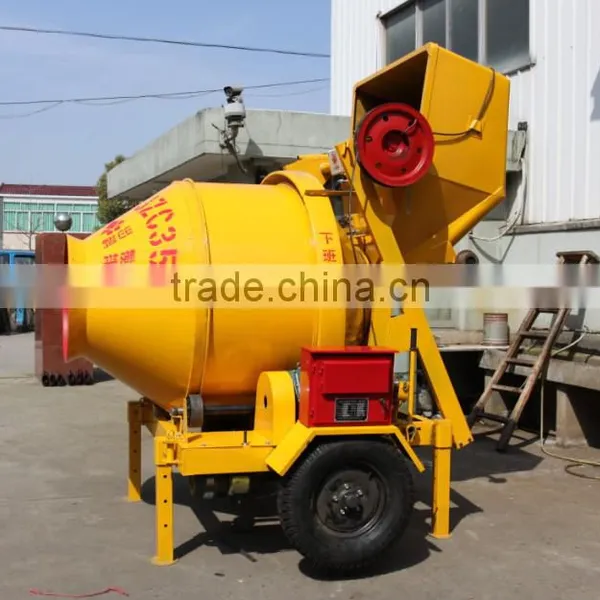

Diesel Yan mar engine Hydraulic Concrete Mixer JZC350DH
JZC350D Diesel Engine Powered Concrete Mixer with is mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
It is featured by diesel engine power, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
Specifications:
| Model | JZC350EH | JZC350EW |
| Weight | 1450KG | 1350KG |
| In capacity | 560L | 560L |
| Out capacity | 350L | 350L |
| Productivity | 14m³/h | 14m³/h |
| Motor Model | Y132S-4-B3 5.5KW | Y132S-4-B3 5.5KW |
| Motor Speed | 1440R.P.M. | 1440R.P.M. |
| Power Supply | Three Phase,380V/50hz | Three Phase,380V/50hz,5.5KW |
| Motor for Mixing | 4KW | 0 |
| Motor for Tipping | 2.2KW | 0 |
| Drum Dimension | 1560*1890MM | 1560*1890MM |
| Drum Rotation Speed | 14.5/MIN | 14.5/MIN |
| Wheel Tyre Size | 6.50-16 | 6.50-16 |
| Max Driving Speed | 20KM/H | 20KM/H |
| Lifting Methods | Hydraulic Tipping Hopper | Machanism Tipping Hopper |
| Model | JZC350DH | JZC350DW |
| Weight | 1600KG | 1600KG |
| In capacity | 560L | 560L |
| Out capacity | 350L | 350L |
| Productivity | 14m³/h | 14m³/h |

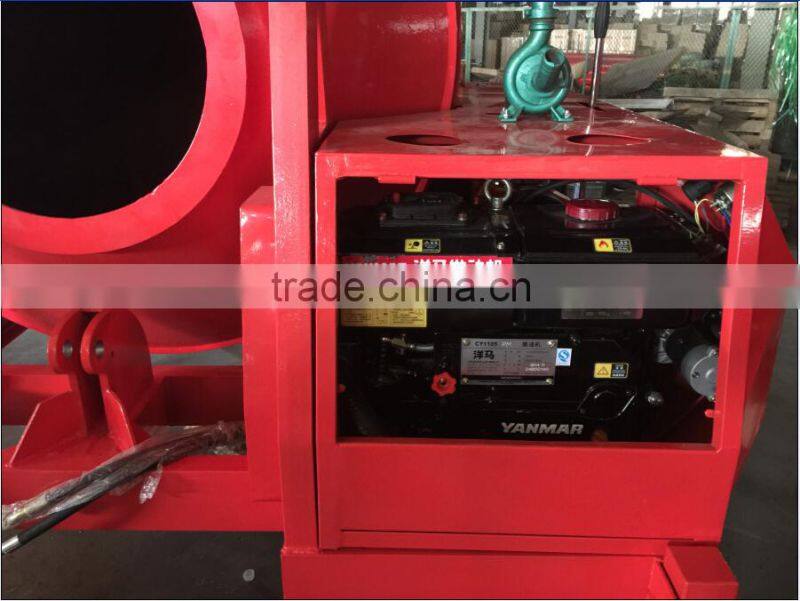

| Engine | Diesel Yanmar 18HP | Diesel Yanmar 18HP |
| Power of Water Pump | 0.75KW | 0.75KW |
| Pressure of Gear Pump | 20Mpa | 20Mpa |
| Accuracy of Water Supply Error | ≤2% | ≤2% |
| Max Trailing Speed | 20Km/h | 20Km/h |
| Speed of Mixing Drum | 14RPM | 14RPM |
| Wheel Tyre Size | 6.50-16 | 6.50-16 |
| Max Driving Speed | 20KM/H | 20KM/H |
| Lifting Methods | Hydraulic Tipping Hopper | Machanism Tipping Hopper |

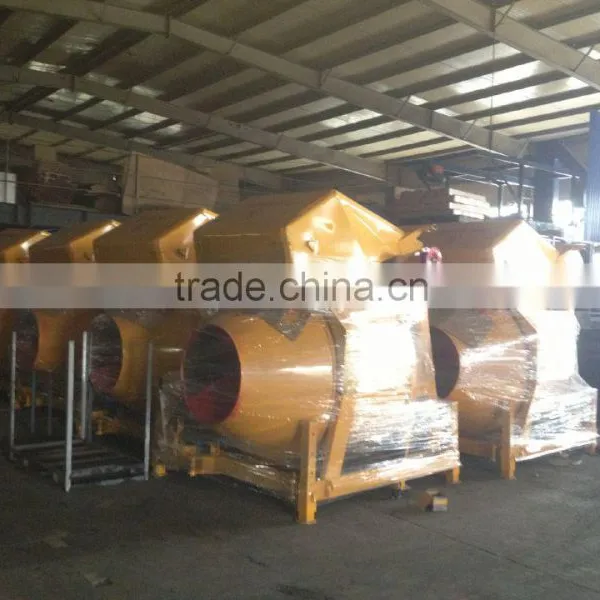

Container Loading: 2 SETS per 20GP, 6SETS per 40HQ
1. For our MACHINE , we have 12 months warranty
2. Within12 months, if there is some accessory going wrong, we will send you the accessory at once, free of charge or deliver the spare parts in next order
3. No responsibility for man-made destroy
4. If the buyer has any questions from our technical department, we can supply on-line service
Established in 1990, Ningbo Yinzhou Feihu Machinery Co.,Ltd. is one of the earlist professional manufacturers in construction machinery. With the spirit of "Being professional and doing the best", we have gradually developed into a big factory for the 20 years. We are supplying construction machinery such as Concrete Vibrator, Plate Compactor, Power Trowel, Concrete Cutter,
Water Pump, Hand Insertion Vibrator, Rammer, Steel Cutter, Steel Bender, Concrete Mixer, Lifter, Concrete Screed, Vibratory Roller
and so on.
MOQ,Payment,Loading port,price term,OEM
1.Payment : I:100% T/T
II:30% advaced and the balance paid before delivery
III:credit letter at sight
2.MOQ:5Pcs
3.Port of loading: Ningbo Port or Shanghai
4.Price term:FOB Ningbo price
5.OEM:we are pleased to be your OEM factory
Why chose us
1) The specialized production : our factore is professionally engaged in the production of construction machinery for 20 years
2) Excellent geographical location : our factory is close to Ningbo Lishe Airport
3)Lowest prices anywhere:we offer to beat any competitor's delivered price within one year for the date of purchase-event if it's an advertised special
4) Quick time for delivery:The delivery time is 15days after recieve the deposit
