Help CenterGasolin Engine13HP, Reinforced Hydraulic Asphalt Road Cutter Machine
Related Products
-
Gasoline Engine Concrete Cutting Machine35A CEUS$ 680 - 720MOQ: 1 Set -
Hot Sale New Condition Concrete Block CutterUS$ 520 - 779MOQ: 2 Sets
-
Concrete Cutter Sawing Concrete CuttingUS$ 810 - 847MOQ: 1 Set
-
2015 Hot Sale 13A Road Gasoline Engine Concrete Cutter Quality ChoiceUS$ 390 - 429MOQ: 2 Sets
-
Gasoline Honda 35A Concrete CutterUS$ 660 - 700MOQ: 1 Set

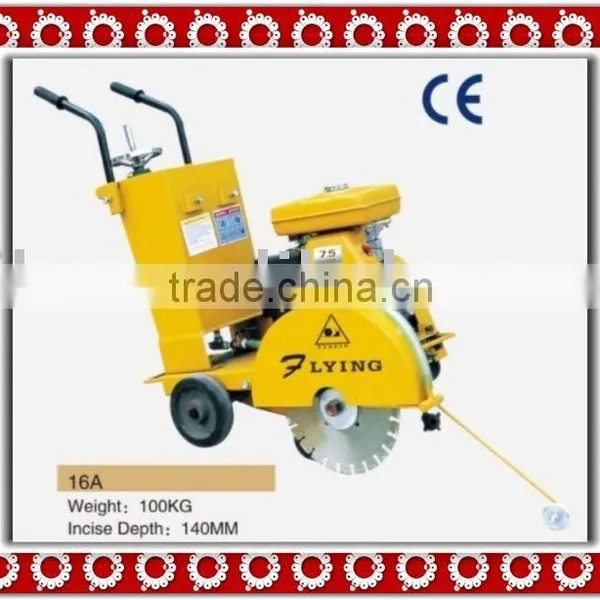

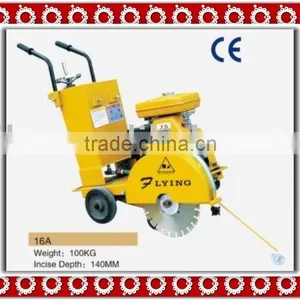

Specifications
1.Incise Depth:140MM2.Rating Rotal Speed:3600R.P.M
3.Sawing Blade Diameter:350-400mm
4.Power:7.5-9HP
5.Weight:100kg
CONCRETE CUTTER
Features and Benefits:
1.Super-rigid box frame ensures straight cuts while resisting warping and vibrations-prolongs saw life; extends blade life.
2..Ergonomically designed, height adjustable handles with comfortable grips.
3.Easy crank for raising/lowing cutting depth.
4.Hinged front, lift-up blade guard is designed to provide easy blade replacement.
5.Throttle control for easy holding working speed. (Throttle control is available as optional)
Concrete cutter series
Model |
20A |
20A-D |
30A |
35A |
60A |
70A |
Weight(KG) |
100 |
100 |
140 |
140 |
127 |
175 |
Incise Depth(MM) |
160 |
160 |
185 |
185 |
180 |
180 |
Linear Velocity of Sawing Blade(M/S) |
90 |
90 |
90 |
90 |
90 |
90 |
Power |
7.5--9HP |
Diesel Engine 186F |
7.5--9HP |
7.5--13HP |
13HP |
20HP |
Rating Rotating Speed(R.P.M) |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
Water Tank Capacity(L) |
25 |
25 |
25 |
20 |
32 |
39 |
Sawing Blade Diameter(MM) |
350-400 |
350-400 |
350-500 |
350-500 |
350-500 |
350-500 |
Dimension(CM) |
98*61*94 |
98*61*94 |
130*58*90 |
|
123*64.5*95 |
145*75*120 |
Certification |
CE |
CE |
|
|
CE |
CE |
Remarks |
|
|
|
|
|
|
Engine Option
Japanese Gasoline Engine |
high quality and long life time |
HONDA/ROBIN |
Chinese Gasoline engine |
economical and practical |
LIFAN |
Chinese Diesel engine |
economical and practical |
KAMA/OTHERS |

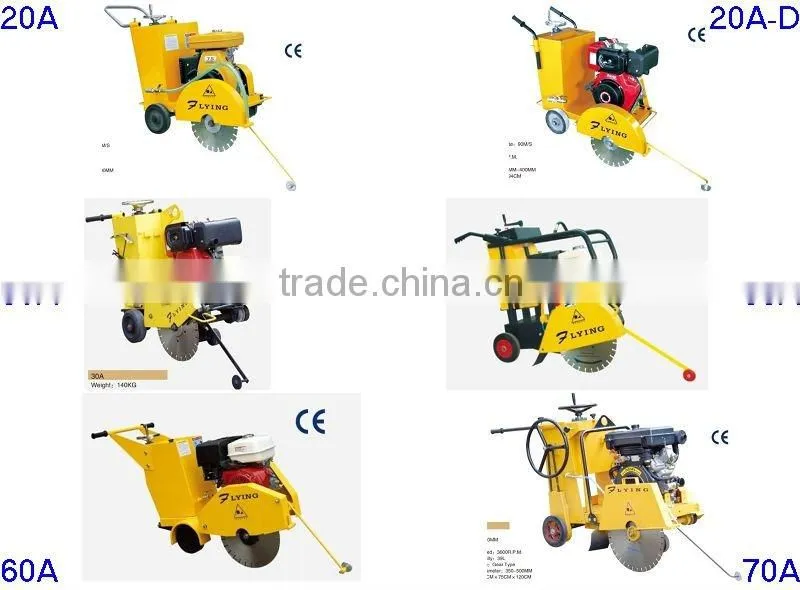

the sample of concrete cutter20A/20A-D/30A/35A/60A/70A

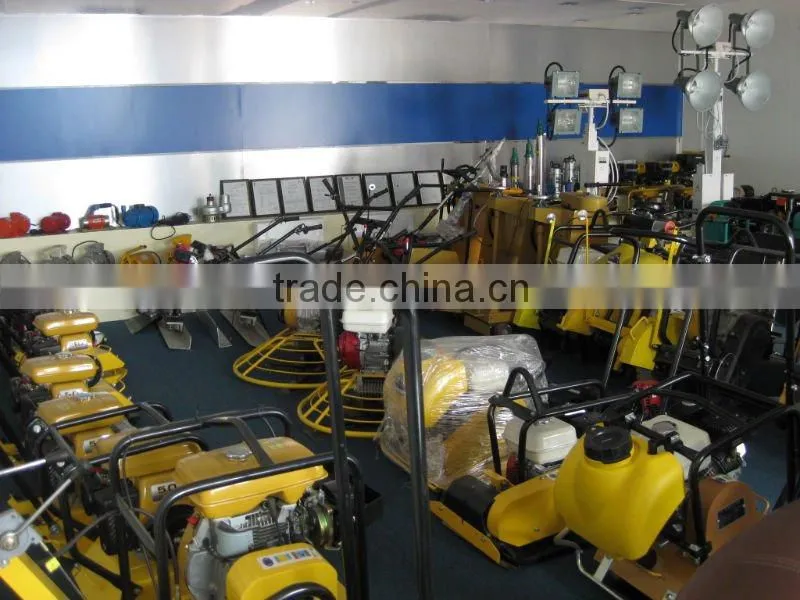

our sample room
After sale service:
1. Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge or deliver the spare parts in next order.
2. In the period guarantee, we change the defective parts (but the wearing parts) for free in the condition that the users comply the rules of transportation, storage and using, if the vibrator is broken or cannot be working well.
3. No responsibility for man-made destroy.
4. If the buyer has any questions from our technical department, we can supply on-line service.
