Specifications
modular design rental display1.slim display
2.light-weight,modular design
3.accurate color uniformity
modular design rental display
Main Features
Broadcasting standard
Meet industry top quality requirements, high refresh rate, super image quality and color uniformity, high contrast ratio.
Full-Depth Calibration
Optimize picture uniformity with dot-to-dot calibration. Enable mix usage of products made of different batch.
Super light cabinets
a lighter aluminum cabinet makes it ideal for setup and teardown as well as transportation.
Easy rigging system
Each cabinet contain a strong rigging system to enable easy rigging and adjustments. Unique latching device can keep all display panels on same horizontal line, it also keep the panel as a whole without any aperture.
Application

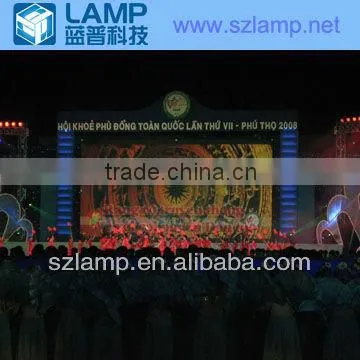

1. Stage venues
2. Entertainment venues
3. Sports arenas
4. Commercial advertising
Specification
Pixel pitch(mm) |
P8 |
P10 |
P12 |
Pixels Configuration |
1R,1PG,1PB |
1R,1PG,1PB |
1R,1PG,1PB |
Module Dimension |
256 × 128 |
160 × 160 |
192 × 192 |
Module Resolution |
32 × 16 |
16 × 16 |
16 × 16 |
Cabinet Dimension |
1024 × 768 |
640 × 480 |
768 × 576 |
Cabinet Resolution |
128 × 96 |
64 × 48 |
64 × 48 |
64 × 64 | |||
Density (pixels / M2) |
15,625 |
10,000 |
6,944 |
Brightness Density (cd/m2) |
1400 |
1200 |
1000 |
Drive mode |
1/4 |
1/4 |
1/4 |
Best Viewing distance (m) |
5 ~ 100 |
5 ~ 100 |
5 ~ 100 |
Power consumption (Average) |
460 |
320 |
240 |
Power consumption |
1145 |
800 |
600 |
Viewing angle |
Horizontal angle: 120 degree ; Vertical angle: 120 degree |
||
Gray scale |
4096 gray scale in each Red,Green,Blue color |
||
Kinds of Color |
68.7 billion kinds |
||
Ingress Protection |
Front IP40 , Rear IP30 |
||
Refresh Velocity |
60 frame/sec |
||
Refresh Rate |
300HZ |
||
Display Life |
100,000 hours |
||
Display MTBF |
10000 hours |
||
Blind Pixels Rate |
0.0003 |
||
Working Voltage |
AC220V±15% , 47~64HZ |
||
Effective Control Distance |
100m (kind 5 cable) / 1000m or more (Optical fiber) |
||
Operation temperature |
- 30°C ~ + 60°C |
||
Operation Humidity |
10% ~ 90% RH |
||
System Diagram
