Home > Products > Magnesium Plate > Industry-leading Embossed Metal Plate of Magnesium

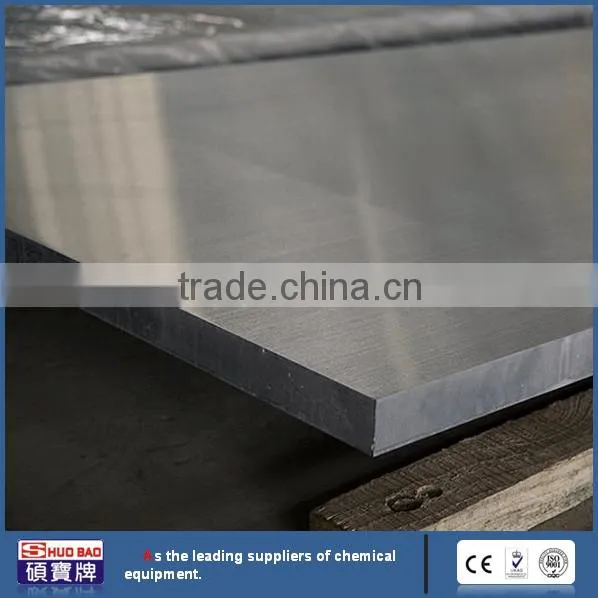

Industry-leading Embossed Metal Plate of Magnesium
- 1000000 Kilogram / Kilograms per Month
- huangpu
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | YH | Application: | printing, foil stamp, embossing, etching |
Shape: | Plate | Material: | AZ31, AZ61, AZ91 | Dimensions: | 1000*500 or 914*610 |
Chemical Composition: | Mg, Al, Zn, Mn |
Packaging Details
Poly wooden box, inside with paper.
Product Description
Embossed Metal Plate of Magnesium
A: Features of Standard Mg Plate
- Magnesium is light metal, it’s ion exists widely in soil and water, and harmless to human body or environment.
- The Magnesium plates was etched very fast, normally within 3 minutes in the new chemical.
- Magnesium photoengraving plate is lightest between Brass and Zinc plate. Therefor the magnesium engraving plate is better to be pasted and stamped.
- No deformation happen during hot stamping process. Fast temperature rising, the stmping rate is more than 120000 times.
- Magnesium engraving plate is easier to be etched with a highest speed between Brass and Zinc engraving plate. Normally magnesium engraving plate is to be etched in 1 mm deepth within 7 seconds.
- The surface hardness of the magnesium plates is very close to the cooper.

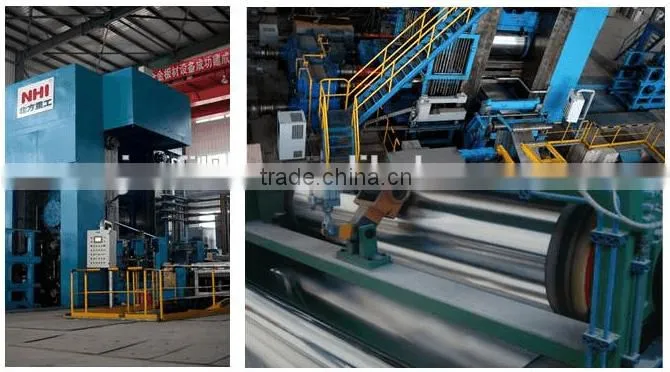

- The magnesium plate after rolling with 3000 tons cold rolling mill and also 2500tons hot rolling mill, then do the tempering treatment, our plates with uniform thickness, the tolerance of thickness is near zero, the plates is no anisotropy, eliminate the internal stress of the plates.
B:Data details
Designation | Chemical Composition < | ||||||||
Al | Zn | Mn | Ce | Fe | Si | Cu | Ni | Mg | |
AZ31B | 2.5-3.5 | 0.6-1.4 | 0.2-1.0 | - | 0.01 | 0.08 | 0.01 | 0.001 | Balance |
ME20M | 0.20 | 0.30 | 1.3-2.2 | 0.15-0.35 | 0.05 | 0.10 | 0.05 | 0.007 | Balance |
MG99.95 | 0.01 | - | 0.01 | - | - | 0.01 | 0.05 | 0.007 | Balance |
Designation | Strength Properties | |||
Thickness | Tensile Strength Rm (N/mm2) | Yield Strength σ0.2 (N/mm2) | Elongation A% 50mm | |
AZ31B | 0.5-3mm | 260 | 170 | 24 |
>3mm | 230 | 140 | 18 | |
ME20M | 0.8-3mm | 250 | 170 | 21 |
>3mm | 220 | 140 | 15 |

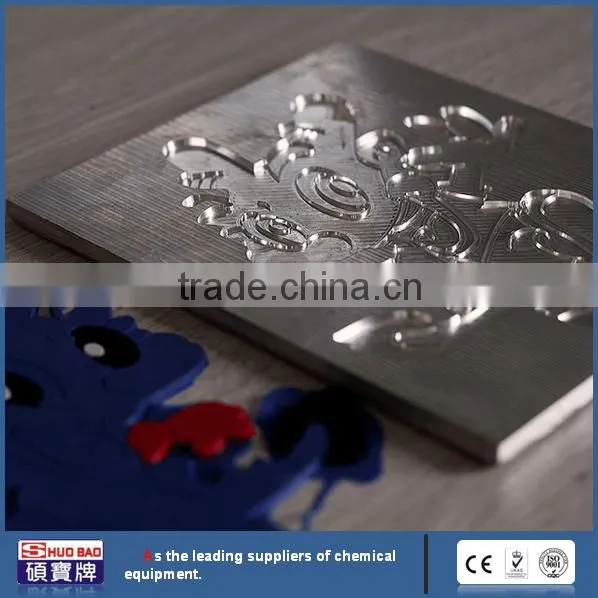

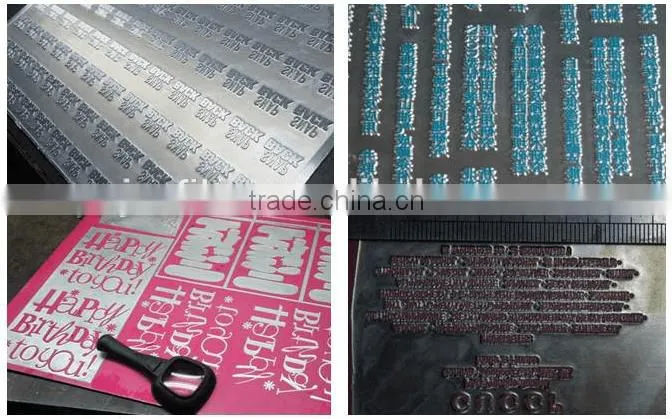

C: Features of Photoengraving plate
Magnesium photoengraving plate, come into the market in 1990’, was appreciated by its advantage. And then, the magnesium etching plate was adopt in some upscale and welcomed widely while the packing and painting industry developed soon. Recent years, also for magnesium photoengraving plate, due to the district requirement of environment and the heavy competitive, the down steam company have a higher requirement on the quality of the metal mould, so the magnesium photoengraving plate occupied the market a large part day by day, the quantity consumed by and the different application found out were growth rapidly. General trends, magnesium etching plate would replace the market of Brass and Zinc plate in the near future.
- The photoengraving plates is made from process of multi-rolled, tempering, sanding, The sensitive glue in advance and Anti-corrosion paint back, coating,ect.

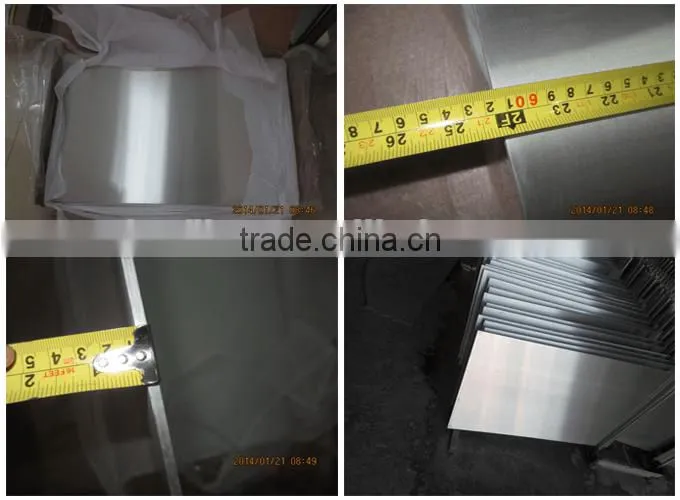

- Our standard size: 500*1000mm, 610*914mm. other special size can be made based on.
- Your requirement, normally thickness are 1.5mm 2.0mm 3.0mm 4.0mm 6.35mm 7mm.
- The technology of etching magnesium engraving plate is similar with that of Zinc engraving plate.
- We here provide a term of parameter as below, please adjust in your local facility according your machine, your conditional temperature and water to get a better parameter.
- 40 L machine: 7 L Nitric acid (68Be), 1.5 L magnesium etch additive, 31.5 L water, temperature 28-30°C, 475r/m.
- 80 L machine: 14 L Nitric acid (68Be), 3 L magnesium etch additive, 63 L water, temperature 28-30°C, 475r/m.
- Note: please adjust the parameter according the breadth and depth of magnesium engraving plate to be etched.
- Pre-sale service: answer what you inquiry!
- Order processing: tracking every details for you!
- Shipment suggestion: we will check the cheapest way to help saving cost!
- After-sales service: Any problem, we can solve It in this first second!
- 10-15days after you payment.
- Transport: DHL, FEDEX, UPS, Air shipping, Boat shipping.
- You may choose our shipping partner or your own partner.
Company Profile
Dongguan Shuobao Industrial Equipment Co., Ltd set up 2000, is the leading manufacturer of industrial equipment in China. Also we are the professional exporter and service provider of plating equipments and filtering equipments. Based on our company's philosophy of " Intelligent Technology, Environmental Protection and Energy Saving", we have been devoted ourselves for more than 10years to developing, designing and researching professional Metal/ABS Automatic Control System Plating line, Waste water filtering system, Water Circulation system., chemical filter, pump and related products. Shuobao devote ours effort to make our environment protected. We have much original creation technical which can save much more operator cost for clients, and improvement the item quality, reduce chemical wasting, Raise water reuse efficiency, cleaning workshop air, reduce the energy using.
Our Industrial equipments all are with high technology strict quality control. Our products passed ISO9001 International Quality Management System Certification .All PLC control Part we all import from Taiwan, Japan. We try best to make the line as automate as we can, so that the customer Can easy management. And make sure high efficiency production. All our equipments will meet the environmental protection government requirement.
Since start our business on 2000, we have established our own brand "Shuobao" with a good reputation in domestic and international markets. Our Shenzhen Work shop with 4000 square meter and with more than 100 workers. We are the expert of Metal/ABS Automatic Control System Plating line, Waste water filtering system, Water Circulation system. For over 10 years' efforts, we have set up our sales networks around the world. Our products are used in electroplating, PCB industry, pharmaceutical dyeing industry, medical, waste water treatment, waste gas treatment, etc. We always try our best to keep our best quality, competitive price and warm service to satisfy our customers. We would like to cooperate with worldwide friends for our brighter prosperity
Thank you very much for you to give us opportunity to participate in your company production line planning and design. We will use our professional and dedicated to give you the most satisfied with the action!
