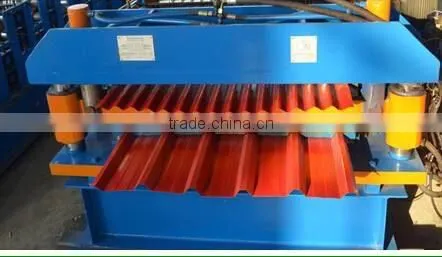

Double Deck 3 Types Roof and Wall Roll Forming Machine

Name: Double Deck 3 Types Roof and Wall Roll Forming Machine
Brand: Longshun
SKU: 107741747

US$ 8,900 - 25,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

Longshun

Model Number:

1000-1250

Yingkou Longshun Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name Longshun

Model Number 1000-1250

After-sales Service Provided Engineers available to service machinery overseas

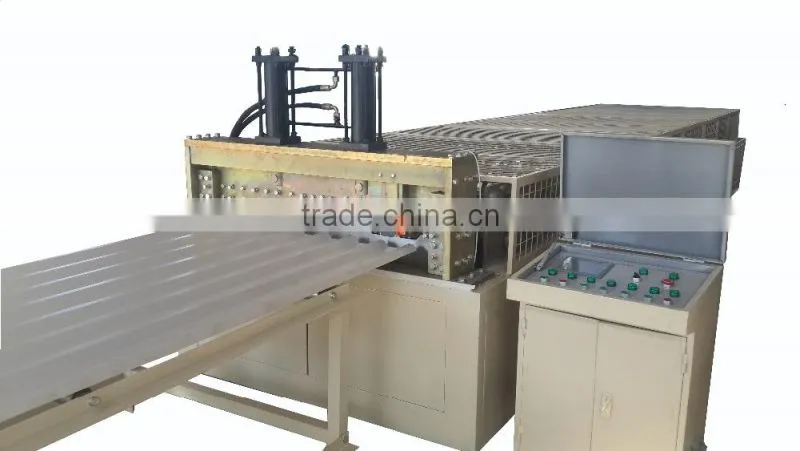

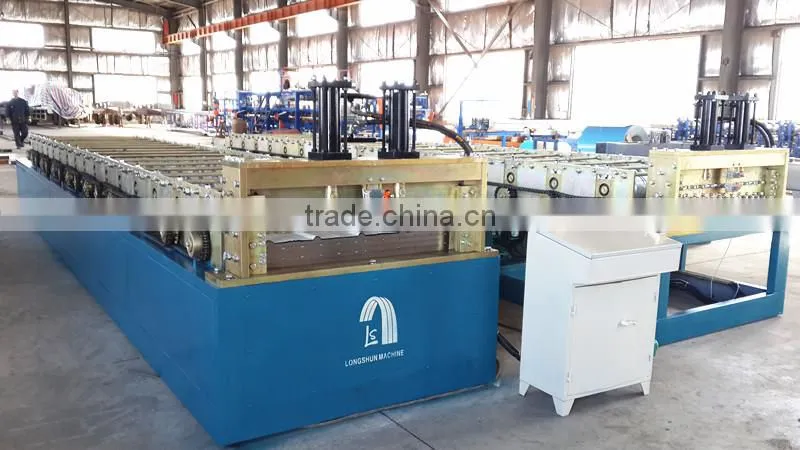

Double deck 3 types roof and wall roll forming machine

Technical specification

1. Technique parameters of the processing line

Technical parameters:
Technical parameters:
1	Name of commodity & specification	HY-1219/1000 double layer roll forming machine
2	Main motor power	7.5kw, 3 phase
3	Hydraulic motor power	4kw
4	Hydraulic Pressure	10-12MPa
5	Voltage	380V /3phase/ 50 HZ (or as your requirement)
6	Control System	PLC panasonic Inverter
7	Main Frame	350mm H-Beam
8	Backboard Thickness	22mm
9	Chain Size	25.4mm
10	Feeding Material	color steel coils
11	Feeding Thickness	0.27-1.00mm
12	Effective width	1000mm(up)/1219mm(down)
13	Productivity	8-10m/min
14	Roll Station	14(up)/16(down)
15	Roller Diameter	80mm
16	Roller material	45# steel, zinc-coated
17	Cutter material	Cr12 , quenched
18	Cr-Plating Size	0.05mm
19	Overall Size	8600×1500×1700mm
20	Total Weight	10T
21	Components	Manual Uncoiler-------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set
22	Work flow	Manual decoiling----feeding and guiding----roll forming----cut to length








23	package	Nude in the container
24	Minimum order quantity	1 set
25	Delivery time	30 working days later after receiving the deposit
