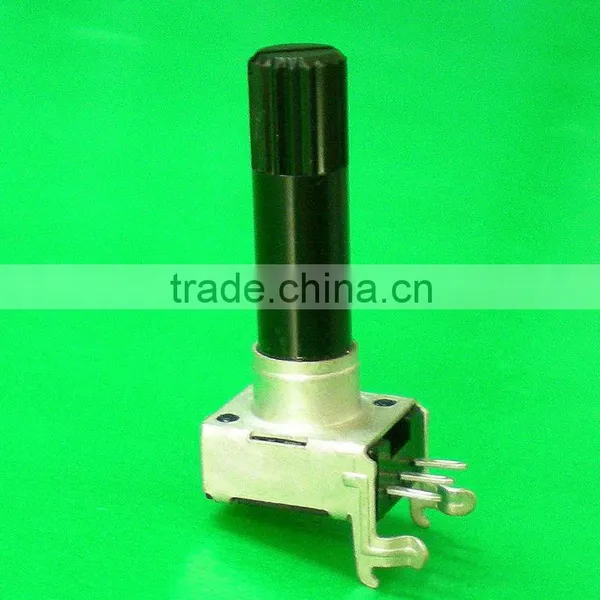

RK0935N 9mm Size Rotary Potentiometer

Name: RK0935N 9mm Size Rotary Potentiometer
Brand: APAI
SKU: 107740243
Availability: InStock

Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

APAI

Model Number:

RK0935N

Foshan Apai Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name APAI

Model Number RK0935N

Specifications

APAI vertical potentiomters:
09mm Size
Compact type potentiometer with 9.8mm width is ideal for designing high density sets

APAI vertical potentiomters:

9mm Size

Insulated Shaft Rotary Type

Compact type potentiometer with 9.8mm width is ideal for designing high density sets.

Various Option for you to chose!

1.Shape of Shaft: F/R/KQ shaft style

2.Length of Shaft:15/20/25/27.5/30/35/37.5mm

3.Taper and Resistance:

A Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

B Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

C Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

Ect.

(Some taper&resistance maybe out of stock, pls comfirm with us before placing order)

4.Kind of Grease: light/comond/heavy handling feeling

5.Unit:Single-unit

6.Click:with/without center click(center detent)

(mechanical characteristics)

Items	RK09 Series	RK11Series		RK14Series
Items	Single-unit	Single-unit	Dual-unit	Dual-unit
Total rotational angle	280o±5o	300o±5o
Rotation torque	10 ~80gf.cm	30~200gf.cm
Rotation stopper strength	3kgf.cm	5kgf.cm (Without bushing) 6kgf.cm (With bushing)		6kgf.cm
Push-pull strength	5kgf max.	8kgf max.
Shaft wobble	0.8×L/200mm p-p max.	0.7×L/20mm p-p max. (Without bushing) 0.7×L/30mm p-p max. (With bushing)

(Electrical characteristics)

Total resistance	5 ~ 250 KΩ
Total resistance tolerance	±20%
Resistance taper	A,B,C,D,E,K,W	A,B,C,D,E,K,W	A,B,D	A,B,C,D,E,K,W,M,N
Rating power (W)	0.05W	0.05W	Maximum operating current 1mA.AC	0.05W
Maximum operating voltage	50V AC 20V DC	50V AC 20V DC	30V AV For AC only	50V AV For AC only
Slider noise	less than 100mV
Gang error	-			3dB max. (-40~0dB)
Insulation resistance	100MΩ min at 250V DC	100MΩ min at 250V DC	100MΩ min at 250V DC
Voltage proof	1 minute at 250V AC		1 minute at 500V AC	1minute at 300V AC
Rotational life	5,000 cycles		15,000 cycles	10,000 cycles	15,000 cycles
