Specifications
Powder Coating Production Line1. 2014 New
2. Hot sale
Powder coating production line

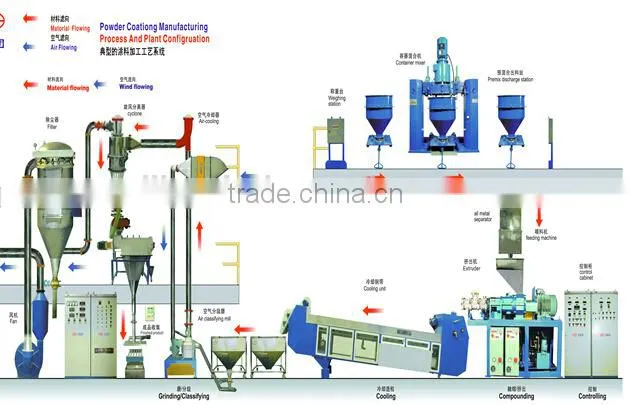

1. Powder Coating Manufacturing Process and Plant Configuration:
2. QUALITY, PACKING
QUALITY: Export standard
ACKING: Export standard packing (Wooden Containers)
3. DELIVERY
TIME OF DELIVERY: Within 90 working days from the date of receiving the advanced payment.
4. TERMS OF PAYMENT
30% deposit after signing the contract.
70% should be paid by T/T before delivery from factory against delivery notice
5. DOCUMENTS
Operation Manual, English version
Installation diagram
Quality Certificate
Electric components diagram
Commercial invoice
Packing list
Other necessary documents
6. WARRANTY
Quality guaranteed for one year for all machines, easy worn parts excluded and we will always offer after-sale service. Please feel free to contact us if any questions.
7. TECHNICAL SPECIFICATIONS
A. Mixer
MODEL |
DESCRIPTION |
Capacity (Kg/tank) |
MIXING TIME (min) |
MIXING POWER (kw) |
ZLH-150 |
Mixer |
150-200 |
5-10 |
5.5 |
B. Extruder
MODEL |
DESCRIPTION |
OUTPUT (Kg/h) |
SCREW SPEED (rpm) |
L/D |
MOTOR POWER (kw) |
HEATING POWER |
ZLJ50A |
Twin screw extruder |
150-200kgs/h |
0-500rpm |
13:1 |
15 |
3 |
C . Air Cooling Band
MODEL |
DESCRIPTION |
OUTPUT (Kg/h) |
BELT LENGTH (mm) |
BELT WIDTH (mm) |
ROLLER LENGTH (mm) |
MOTOR POWER (kw) |
FAN POWER (kw) |
ZLY-705B |
Cooling belt |
150-200 |
5000 |
700 |
700 |
0.75 |
170 |
D. Grinder
Model |
ACM-10 |
Capacity |
150~200 kg / h |
Feeding System |
|
Motor Power |
0.37KW |
Driving Type |
AC frequency |
Feeding type |
Mechanical screw feeding Transit by air |
Main MIill |
|
Crushing type |
Pins |
(KW) Motor |
7.5KW |
Driving type |
AC frequency |
Classifier |
|
(KW) Motor |
1.5KW |
Driving type |
AC frequency |
Cyclone |
Single Cyclone |
Discharging Rotary type |
Rotary blade air lock |
Power |
0.37kw |
Rotary Sieve driving power |
1.5 kw |
Filter Type |
Filter bags |
Fan |
|
Power |
11KW |
8. Other items
Machine capacity is vary based on different formulations
Main motors use ABB brand
Inverters use Schneider or Siemens brand
Electric elements use Schneider or Siemens brand
The Seller keeps the right to change technical data without prior notice
The pictures showed here are for reference only, which should not be taken as finished machine
The machine adopts nominated color and could be changed following customers requirements
The electrical wires should be prepared by the buyer
Main network supply data: Three phase 380V, 50HZ
9. Free Spare Parts
For Mixer:
01set of sealing
01 set of tools
For Extruder:
01 set of sealing 01 pc of driven shaft A and B for each one
04 pc of heater pipes for each one
01 set of tools for each one
For cooling band
01 pc of left rotary joint and 01 pc of right rotary joint.
For Grinder
01 set of pins for each
01 set of sieve net frame
01 set of tools
03 pcs of transmission belt
01 set of sealing
10. Follow-up Services
Free installation at the site. The buyer should bear all the service expenses for our technicians during the time of installation and commissioning which includes accommodation, meals, visa and round-trip tickets between two countries.
In order to make better communication, the buyer should have a Chinese interpreter for the installation
The offer price do not include service fee.
11. Force Majeur:
Neither party will hold the responsibility if either of the both parties can not perform to the contract due to the International accepted Force majeure such as acts of Gods, strike, governmental restriction, lockout, war, etc... In such case, The Seller or The Buyer shall both email & Fax immediately to opposite party within 30 days & send the certificate as evidence after the email& fax, otherwise, the force majeure can not become effective
12. Arbitration:
All disputes arising from the execution of or in connection with this contract shall be settled amicably through friendly negotiation. In case no settlement can be reach through negotiation, then the case shall be submitted to the Arbitration Commission of China for Arbitration in accordance with its provisional rules of procedure. The arbitral award is final and binding upon both parties Court fees and other related charges shall be borne by the losing party, unless otherwise agreed
13. General Term:
The two parties undertake to carry out this contract strictly. Any supplement or amendment to this contract shall be made in writing after being mutually agreed by both parties.
14. Contract Issue
This contract is made in 02 copies in English with equal value. The supplier keeps one (01) copy, as well as the buyer.
15. Validity of the offer within one month from the quotation date.
