Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > YS Three Roll Mill for Offset Ink. Solvent Based Material,3-roller Mill

YS Three Roll Mill for Offset Ink. Solvent Based Material,3-roller Mill

Name: YS Three Roll Mill for Offset Ink. Solvent Based Material,3-roller Mill
Brand: SAILING
SKU: 107710941

YS Three Roll Mill for Offset Ink. Solvent Based Material,3-roller Mill thumbnail-1

YS Three Roll Mill for Offset Ink. Solvent Based Material,3-roller Mill photo-1

US$ 1,000 - 20,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Grinder

Product Type:

Other, paint, solvent based ink, comestic, rubber.

Contact Supplier Request Quote Chat Now

Sailing International Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Grinder

Product Type Other, paint, solvent based ink, comestic, rubber.

Place of Origin Jiangsu, China

Brand Name SAILING

Model Number YS400/260/150

Certification CE

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

SAILING INTERNATIONAL INDUSTRIAL GROUP LIMITED

PRODUCT DETAILS

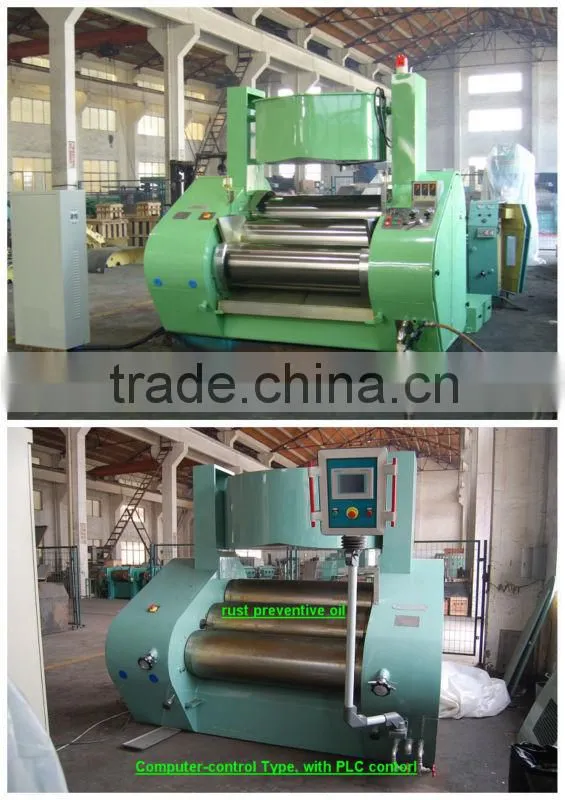

YS 3-roller mill

USAGE

This machine adapts three rollers grinder controlled by hydraulic pressure from double-impeller pump.The basic work of machine such as feeding, discharging and size of material is controlled by hydraulic pressure. It features high automatization content, convenient to operate and safe in use. Because the hydraulic system adapts plate type structure, its arrangement is reasonable.The roller is cast by special alloy, its strength is high and its surface has high hardness and wear resistance property.It is and ideal equipment to grind high quality paste material

Technical Parameter

Roll Diameter(mm)		400	260	150
Length of Roller Working Surface		1300	650	300
Distance from Discharge hole(mm)		690	650	620
Roll Rotating Speed	Low Speed Roll	32	58	26
	Medium Speed Roll	148	153	61
	High Speed Roll	400	408	141
Main Motor Power(kw)		55	22	3
Pressure of Hydraulic System(mpa)		6.3*2	6.3	6.3
Pressure Power(kw)		1.5*2	1.5	0.375
Machine Weight(kg)		5200	2000	520
Overall Dimension(mm)		265017502295	155812801200	9509501080
Packing Dimension(mm)		280019001900	180014001700	110011001400

three roll mill,hydraulic roll grinding machine,3 rolling machine...

Warrenty

one year guarantee with 24 hours service.

YS Three Roll Mill, Grinding Mill, Three Roll Mill Machine, for offset ink. solvent based material

Machine standard optional.

Can Made to order. OEM.

TESTING REPORT

YES. Always provide official test report before delivery.

OEM SERVICE

YES

CERTIFICATE

BV PRODUCT CERTIFICATE. CE

COLOR

WHITE, BLUE OR OPTIONAL

PRICE

PAYMENT

T/T, L/C,

PORT

SHANGHAI, SHENZHEN,GUANGZHOU

MOQ

800SETS/YEAR

DELIVERY TIME

15DAYS FOR STANDARD MACHINE

NOTE

We will offer you price referring to your detail request, so please kindly inform us of the material, viscosity, density, etc, and other requirements you prefer, and the special offer will be given.

The pictures are above just for your reference.
