YS400-1200 Ink Hydraulic Three Roll Mill

Name: YS400-1200 Ink Hydraulic Three Roll Mill
Brand: SAILING
SKU: 107710807

YS400-1200 Ink Hydraulic Three Roll Mill thumbnail-1

YS400-1200 Ink Hydraulic Three Roll Mill photo-1

US$ 45,000 - 55,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Grinder

Product Type:

Other, offset ink, solvent based paint, soap, chocolate, medicine etc

Contact Supplier Request Quote Chat Now

Sailing International Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo Qingdao Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Grinder

Product Type Other, offset ink, solvent based paint, soap, chocolate, medicine etc

Place of Origin Jiangsu, China

Brand Name SAILING

Model Number YS400-1200

Voltage OPTIONAL

Power(W) 55-75KW

Dimension(L*W*H) 2650X1750X2295MM

Weight 5200KG

Certification CE

Warranty 1-10YEARS OPTIONAL

After-sales Service Provided Overseas service center available

SAILING INTERNATIONAL INDUSTRIAL GROUP LIMITED

PRODUCT DETAILS

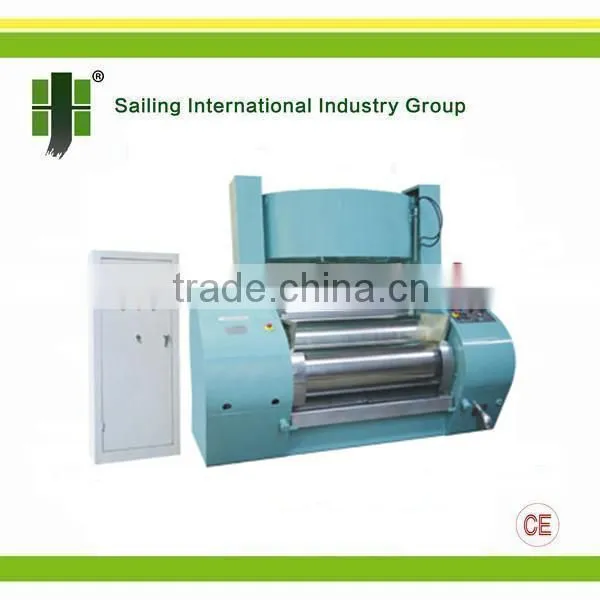

YS400-1200 Ink hydraulic three roll mill

USAGE

YS Series Full Hydraulic Three/triple Roll Mill Grinder with PLC Optional.

This three roll mill/grinder/mixer adopts a three rollers grinder controlled by hydraulic pressure from double-impeller pump. The basic work of machine has feeding and discharging and the size of material is controlled by hydraulic pressure. It features high automatization content. It is convenient to operate and use. Because the hydraulic system adopts a plate type structure, its arrangemen It is more reasonable. The roller is cast by special alloy, its strength is high and its surface has high hardness.

It has wearing resistance property.

It is ideal equipment to grind high quality paste material....

Roll Diameter(mm)		400	260	150
Length of Roller Working Surface		1200	650	300
Distance from Discharge hole(mm)		690	650	620
Roll Rotating Speed	Low Speed Roll	32	58	26
	Medium Speed Roll	148	153	61
	High Speed Roll	400	408	141
Main Motor Power(kw)		55	22	3
Pressure of Hydraulic System(mpa)		6.3*2	6.3	6.3
Pressure Power(kw)		1.5*2	1.5	0.375
Machine Weight(kg)		5200	2000	520
Overall Dimension(mm)		265017502295	155812801200	9509501080
Packing Dimension(mm)		280019001900	180014001700	110011001400

Warrenty

One year guarantee with 24 hours service.

Can extend to 5 years optional.

Please ask for more details from us freely;

Machine Standard optional.

Machine colors optional;

Can Made to order.

OEM

TESTING REPORT

YES. Always provide official test report before delivery.

OEM SERVICE

YES

CERTIFICATE

BV PRODUCT CERTIFICATE. CE

COLOR

WHITE, BLUE OR OPTIONAL

PRICE

PAYMENT

T/T, L/C,

PORT

SHANGHAI, SHENZHEN,GUANGZHOU

MOQ

800SETS/YEAR

DELIVERY TIME

15DAYS FOR STANDARD MACHINE

NOTE

We will offer you price referring to your detail request, so please kindly inform us of the material, viscosity, density, etc, and other requirements you prefer, and the special offer will be given.

The pictures are above just for your reference.
