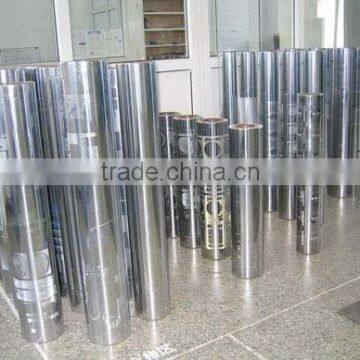

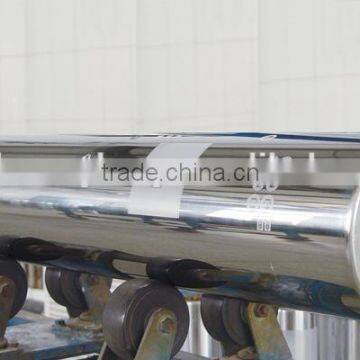

Gravure Cylinder

Name of item

Rotogravure Printing Roller & Cylinder; Printing roller

Use

Suitable for various kinds of rotogravure printing, such as plastic packaging products, cigarettes& liquor packaging, bottle labels, decorative painting, wood grain paper, heat transfer printing, and other fields using rotogravure printing

Material

Steel tube as roller base →plating a copper layer above the roller surface →plating chromium layer as a durable anticorrosive protective layer

Specification

²  Maximum size: 1300mm in circumference, 2000mm in length

²  Minimum size:  350mm in circumference, 380mm in length

²  Engraving depth:  90μm

²  Diameter deviation is ±0.01mm

²  Surface finish attains Ra0.1

²  Diameter deviation limited to ±0.01mm

²  concentricity error is limited to 0.03mm

²  Chrome coating hardness ranges between HV800~1000

Advantages

• High geometric accuracy
• Exquisite printing works, True colors manifestation & High colorful reappearance
• Long service life
• consistent printing effect
• High hardness, good wearing resistance

Production Processing

Customer→Digital Documents (or original printing sample) →Pre-press Facture (at the same time the roller Mechanical Processing→Coppering→Polishing Surface) →Electronic Engraving→Chrome Plating→ Proof Printing→Quality Checking→Production Complete and Delivery

Our Team

Quick Response

Professional technology and Skills

Experienced elites team with wonderful abilities

Efficient process & people management, first-class service, sincere attitude
