New bopp tape slitting machine/slitting machine/paper slitting machine
Skype: yangshiyan310
What's App: +86-13958831773
Complete line:
1.BOPP tape slitting machine
2.Paper core loading machine
3.Paper core cutting machine
4.Mini rewinding machine
Application:
1.Use 4-axis automatic batch-exchanging and consecutive winding. ..
2.Stepless speed regulation of frequency conversion and configured with the three parted counters,stable and accurate stopping.
3.Releaseing tension use pneumatic brake control,winding tension use double-control,and equiped with a clutch and independent
4.The dividing knife use industrical knife,suitable for film adhesive tape slitting...
5.Airshaft for unwiding
6.All button and swiftch use germany schineider
Slitting Machine:
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved. |
2. PLC control system with touch panel operation. |
3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force. |
4. The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding. |
5. Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling. |
6. (Optional) Auto labeling and slitting stationery tape functions. |
Main Technical Parameters:
Model | FR210-1300 | FR210-1600 |
Effective width | 1320 mm | 1620 mm |
Max. unwind diameter | 800mm | 800mm |
Min. slitting width | 10mm | 10mm |
Max. rewind diameter(shaft1") exchange 4 shafts | 75mm | 75mm |
Max. rewind diameter(shaft3") exchange 4 shafts | 150mm | 150mm |
Max. rewind diameter(shaft3") exchange 2 shafts | 300mm | 300mm |
Machine speed | 0-180m/min | 0-180m/min |
slitting blade | 0.2×22×60mm | 0.2×22×60mm |
Main power | 5KW | 6KW |
Paper Tube Loading Machine:
Main Technical Parameters:
The length of the paper core be loaded | 1300mm |
The diameter of the paper core | 76.2mm |
Machines dimension | 4700(L) x 700(W) x 1500(H)mm |

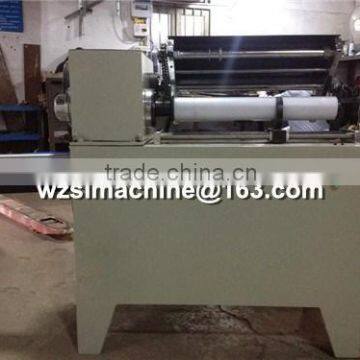

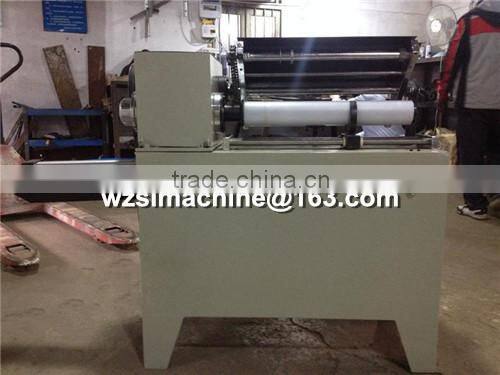

Paper Core Cutting Machine:
Main Technical Parameters:
Max. cutting width | 500mm |
Min. cutting width | 12mm |
Inside diameter of the paper core | 76.2mm |
Thickness of the paper core | 1—6mm |
Power supply | 380V 50HZ |
Machines dimension | 1600(L) x 900(W) x 1300(H)mm |

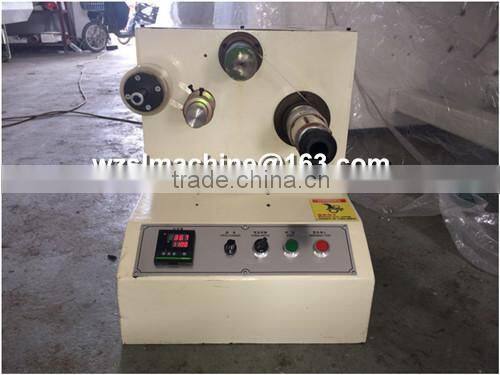

Rewinding Machine:
Main Technical Parameters:
Max. Rewinding diameter | 250mm |
Min. winding width | 100mm |
Inside diameter of the paper core | 76.2mm |
Rewinding speed | 0—100m/min |
Power supply | 220V 50HZ |
Machines dimension | 520(L) x 500(W) x 550(H)mm |
WELCOME TO CONTACT US FOR MORE DETAILS, MOST COMPETITIVE PRICE FOR YOU!
If the machine doesn't meet your requirements, please feel free to let me know. I will always be pleased to help you find the right one.
