1M 30LEDS 2 Years Warranty Led Rigid Strip 5050,aluminium Housing Smd 2835 Led Rigid Bar

1M 30LEDS 2 Years Warranty Led Rigid Strip 5050,aluminium Housing Smd 2835 Led Rigid Bar thumbnail-1
1M 30LEDS 2 Years Warranty Led Rigid Strip 5050,aluminium Housing Smd 2835 Led Rigid Bar thumbnail-2
1M 30LEDS 2 Years Warranty Led Rigid Strip 5050,aluminium Housing Smd 2835 Led Rigid Bar thumbnail-3
1M 30LEDS 2 Years Warranty Led Rigid Strip 5050,aluminium Housing Smd 2835 Led Rigid Bar photo-1
1M 30LEDS 2 Years Warranty Led Rigid Strip 5050,aluminium Housing Smd 2835 Led Rigid Bar photo-2
1M 30LEDS 2 Years Warranty Led Rigid Strip 5050,aluminium Housing Smd 2835 Led Rigid Bar photo-3
US$ 1 - 2 MOQ: 50 Rolls
Key Specifications
Get Latest Price
LED Light Source:
SMD5050
Type:
LED Bar Lights
Input Voltage(V):
DC12V/DC24V, DC12V/24V
Contact Supplier Request Quote Chat Now
Shenzhen Simonlighter Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5050
Type LED Bar Lights
Input Voltage(V) DC12V/DC24V, DC12V/24V
Lamp Power 14.4W/M, 14.4W/M
Lamp Luminous Flux(lm) 18-20lm/led
Color Temperature(CCT) 2700-7000K
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Emitting Color White
Place of Origin Guangdong, China
Brand Name simonlighter
Model Number SML-5050RG60D-1M



Welcome to Simonlighter



 Best Quality, Best price,Best lead time ,Best service!

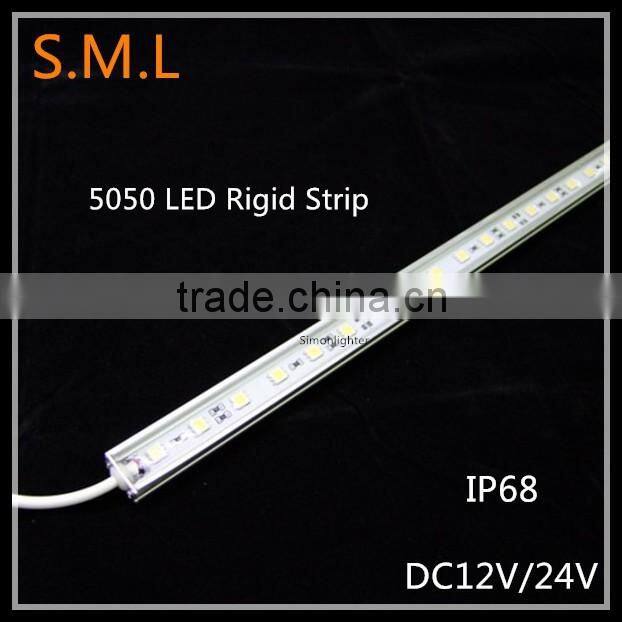

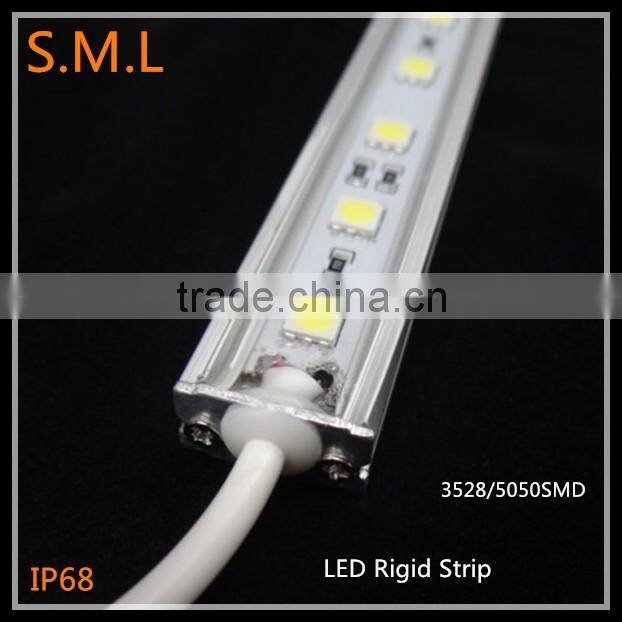

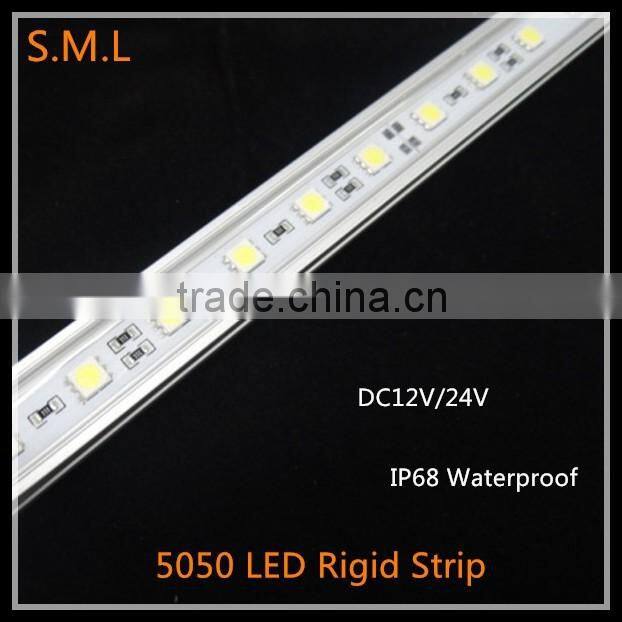

SMD 5050 Rigid led light bar 60LEDs/M 14.4watt per meter white PCB







1M 30LEDS 2 years warranty led rigid strip 5050,aluminium housing smd 2835 led rigid bar







Power: 14.4w/m

Outside Demension: L1000*W16*H10mm

Working Voltage : DC 12V/24V

Led Qty: 60leds/M

Luminous: 1000-120lm/M

IP Rate: waterproof IP65

Material: Aluminum Alloy Housng+Aluminum PCB with 5050 LED

Led Chip: San'an Led Chip/Epistar Led Chip

Cable: two ends comes out with DC connectors, cable length 15cm for each side





Specifications:



Item No. SML-5050RG60D
Led Source SMD5050
Led Q'ty 30, 60 leds/m
Input Voltage DC12V/24V
Led Power 7.2W, 14.4 W
Luminous Flux 10-20 lm per led
Colors  r,g,b,w,ww,rgb
Color Temperature 2500-6700K
Beam angle 120 degree
CRI >80
Main material Aluminum Alloy Housng+Aluminum PCB with 5050 LED
Working temperature -20-60°C
Lumen attenuation  less than 3‰ after 1000hours
Certifications  CE & ROHS
Size   L1000*W16*H10mm
Packing  50rolls/Ctn,2 inner bags







For our led rigid strip lighting bar we can do the waterproof 2835SMD and 5050SMD in 12VDC but the same power watt with 5050 led rigid strip will be more economic







5050 SERIES

Model Power Voltage Led Qty IP Rate Available Colour
SML-5050RG18D-0.3M 4.3w DC12V/24V 18pcs IP67

Warmwhite/Nautral White/

Purewhite/Red/Green/Blue/

Amber/Pink/RGB
SML-505RG30D-0.5M 7.2w DC12V/24V 30pcs IP67
SML-5050RG60D-1M 14.4w DC12V/24V 60pcs IP67
SML-5050RG72D-1.2M 17.2w DC12V/24V 72pcs IP67
SML-5050RG90D-1.5M 21.6w DC12V/24V 90pcs IP67





2835 SERIES

Model Power Voltage Led Qty IP Rate Available Colour

SML-2835RG18D-0.3M



 4.3w DC12V 18Leds IP67 White/Red/Green/Blue

SML-283RG30D-0.5M



 7.2w DC12V 30Leds IP67

SML-2835RG60D-1M



 14.4w DC12V 60Leds IP67
SML-2835RG60D-1.2M 17.3w DC12V 72Leds IP67







Applications

 Indoor and outdoor decoration lightings

 Large scale backlight

 Window display lighting

 Building contour decorative lighting

 Ad. Signs, light boxes

 Landscape outlines

 Car and motorcycle decorative lighting

 Bridge edge lighting

 Architectural decorative lighting

Emergency hallway lighting





Packaging & Shipping

 Packaging:

1. Regular package: 5 meter/roll with anti-static bag.

2. Each package with 2pcs Inner box; Better to protect the goods in the process of transportations.

3. 50 rolls per carton; carton size: 48*45*28cm
