Dongguan Qianghui Machinery Co., Ltd is specialized in research and development and manufacture foam machines. Take the advance technology of some profession and improvement. Absorb the new originality strictly control the product quality full service tracking insist on manufacturing the high quality products. Our main products QHF-2016 Flexible Foam Production Line can make the foam for furniture industrial shoes industrial and so on.
Specifications
The block cutter is step on conveyer line which linked with the foaming produce line , its cut off the continuous foam blocks to a certain length , and in order to transit , storage and future process . This machine is controlled by digital system , fitted with very thin and shape blade . It running in a high speed from left to right , cutting the level foam .
Specifications of the block cutter
Foam block cutting machine for the horizontal continuous foaming production line
QHQG-2400A Foam Cutting Machine (Knife belt type)
1. Cutting foam height: max 1300mm
2. Cutting foam width: max 2300mm
3. Blade frame moving speed: 21m/min
4. Conveyer belt speed: 0~8m/min
5. Power: 5.5kw
6. Roller:
dia76×2500mm
dia76×3600mm
dia60×400mm
7. Cylinder 2 sets
8. Small control box
9. Spare parts: 3pcs knife belt, electric fittings

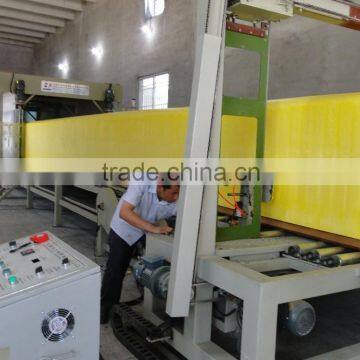

block cutter for the continuous production line
Block cutter
Side wall link
How is the packing of the machine?
The entire machine will be nude packing. Some of the parts will be pack in wooden case. Others will be simple pack with paper or foam sheet with plastic film.
How many container will be needed for the whole set of machine?
Total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.
We will try the best way to pack all the machine well and also save the freight cost.
We will help to design the layout of the machine that put in your factory.
We will send 2-4 experience engineers to install and testing the machines.
We will teach your engineer how to operate the machine and how to maintain the machines.
We will give you the machine operation manual and the best formulation for target products that you are going to make.
Q: How many days for the install and testing of the machine?
A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.
Q: For the cost of the engineer how much I need to pay?
A: You need to pay USD50 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.
Q:What kind of raw material tools we need to prepare for the testing?
A: We will send you a list for the tools that you need to prepare for testing and also can help to buy if you required.
Q: After the machine testing if we need some engineer to stay in our factory can you help to find?
A: Sure we can help to hire one experience engineer to work in your factory but you need to discuss the salary and all details with him.
Q:During the foaming if we have some problems abt the foam and the machine how can we do?
A: You can just call our after sale manager explain for the situation or send some picture we will help to handle within 24hours.
Welcom new and old customer come and visit us ! Feel free to contract us for more informations.
