China Good Price Automatic Sheet Feeder Paper Industrial Embossing embossor machine
Skype: yangshiyan310
What's App: +86-13958831773
USE:
It’s widely used in embossing many kinds of paper, such as wall calendars, desk canlendars, covers of books, lucky envelopes, invitation cards,congratulatory cards packing paper-box and etc. such a technology can make the products more beautiful and more exquisite.
Features:
1. Crease-resist roller pressing device
2. Left and right pressure adjust freely
3. Record the number automatically
4. Stepless speed adjusting
Main technical parameters
Model/Data |
YW650 |
YW-720 |
YW-920 |
YW-1000 |
YW-1150 |
YW-1300 |
Press Width |
620mm |
680mm |
890mm |
970mm |
1120mm |
1270mm |
Press Speed |
10-50m/min |
10-50m/min |
20-60m/min |
20-60m/min |
20-60m/min |
20-60m/min |
Paper Thickness |
≥80g/m² |
≥80g/m² |
≥80g/m² |
≥80g/m² |
≥80g/m² |
≥80g/m² |
Working Pressure |
3-8Mpa |
3-8Mpa |
3-10Mpa |
3-10Mpa |
3-12Mpa |
3-12Mpa |
Machine Power |
1.5kw |
1.5kw |
2.2kw |
4.0kw |
4.0kw |
5.5kw |
Heating Power |
3.0kw |
3.0kw |
3.0kw |
3.0kw |
3.0kw |
3.0kw |
Weight |
1250kg |
1350kg |
1800kg |
2500kg |
2700kg |
2900kg |
Overall Dimensions |
1500*1350*1300mm |
1600*1350*1300mm |
1800*1650*1450mm |
2500*1900*1700mm |
2500*2000*1700mm |
2500*2200*1700mm |

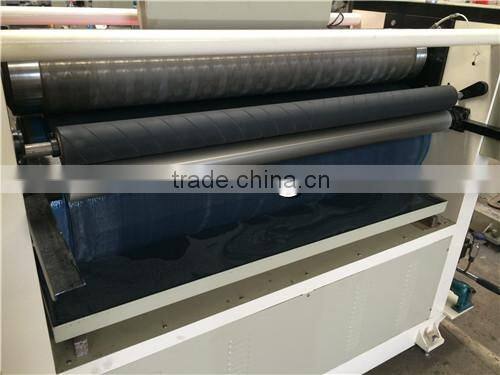

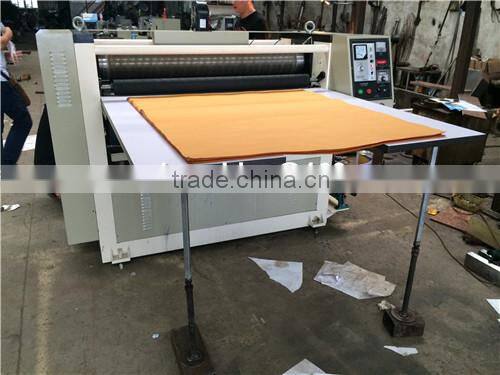

Machine Photo
WELCOME TO CONTACT US FOR MORE DETAILS, MOST COMPETITIVE PRICE FOR YOU!
If the machine doesn't meet your requirements, please feel free to let me know. I will always be pleased to help you find the right one.
