Home > Products > Bubble Wrap Machine > High Quality Bubble Wrap Making Machine/Economic Plastic Air Bubble Film Making Machine

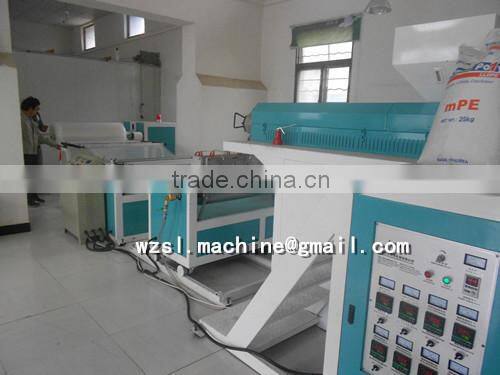

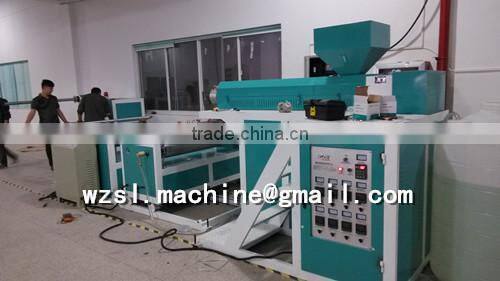

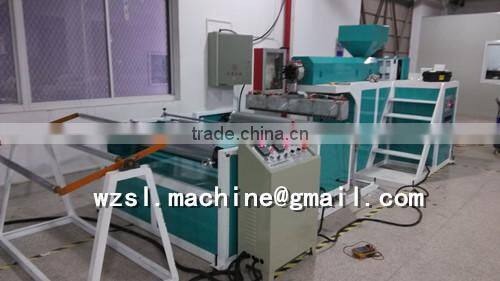

High Quality Bubble Wrap Making Machine/Economic Plastic Air Bubble Film Making Machine
- 2 Set / Sets per Month
- Ningbo Port
- T/T Credit Card
You May Like
-
Professional Plastic Air Bubble Film Bag Making Machine
-
Aluminum foil bubble wrap film making machine,bubble wrap machine,bubble wrap insulation
-
pe plastic foaming extruder bubble wrap making machine
-
Plastic product manufacturing bubble wrap making machine
-
China Ruian Automatic PE Air Bubble Wrap Film making Machine
-
Plastic bubble film making machine
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Automatic Grade | Semi-Automatic | Place of Origin | Zhejiang, China | |
| Brand Name | SL | Model Number | SLQP | |
| Voltage | 380V 50Hz | Power(W) | 70Kw | |
| Dimension(L*W*H) | 12x2x2m | Weight | 6T | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Quality Bubble Wrap Making Machine/Economic Plastic Air Bubble Film Making Machine
Features
1. Robust and reliable.
2. This model can also be used for films with Two layer film machine.
3. Suitable for a wide spectrum of materials, including LDPE, LLDPE, and recycled PE.
4. Can produce films with various bubble sizes from ø 6- ø 32, by changing the roller.
5. Index revolving winder is easy to operate.
6. Variable speed drive can greatly reduce energy consumption.
Application
The bubble film is made of LDPE material. It can be used for various packaging purposes such as moisture proving, dust
proving, shock proving, and static prevention. It can also make into laminated films with aluminized film, foamed PE sheet,
and paper are the applications of sun shading, heat insulation, and packaging.
Main Technical Variables
Model | QPPE-1000 | QPPE-1200 | QPPE-1500 |
Screw Diameter | Φ55mm | Φ60mm | Φ65mm |
L/D | 30:1 | 30:1 | 30:1 |
Main motor | 15KW | 15KW | 18.5KW |
Gear box | 146 hard tooth gear box | 146 hard tooth gear box | 173 hard tooth gear box |
Film width | 1000mm | 1200mm | 1500mm |
Roller width | 1030mm | 1230mm | 1530mm |
T-die size | 1030mm | 1230mm | 1530mm |
T-die material | Mould steel material | Mould steel material | Mould steel material |
Output | 50kg/h | 60kg/h | 70kg/h |
Total Power | 48kw | 58kw | 68kw |
Bubble cylinder size | 10×4mm or 6×3mm | 10×4mm or 6×3mm | 10×4mm or 6×3mm |
WELCOME TO CONTACT US FOR MORE DETAILS, MOST COMPETITIVE PRICE FOR YOU!
If the machine doesn't meet your requirements, please feel free to let me know. I will always be pleased to help you find the right one.
