Specifications
1.farm tractor pto backhoe2.Attached tractor by 3 point linkage.
3. Matched 16-150hp tractor.
4. Hydraulic transmission .

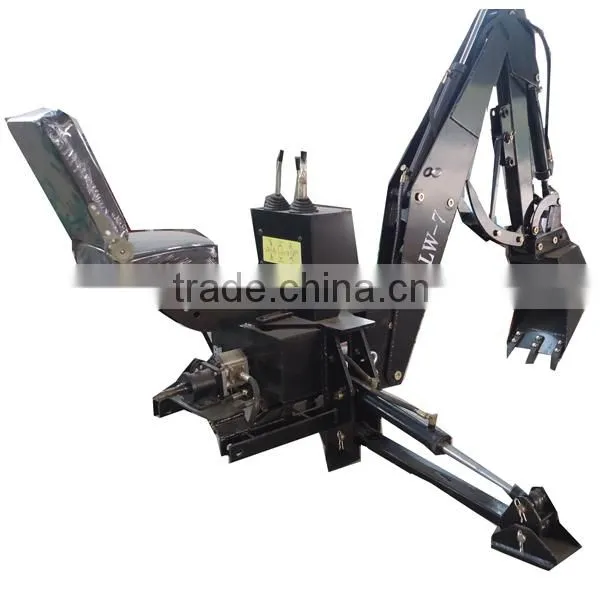

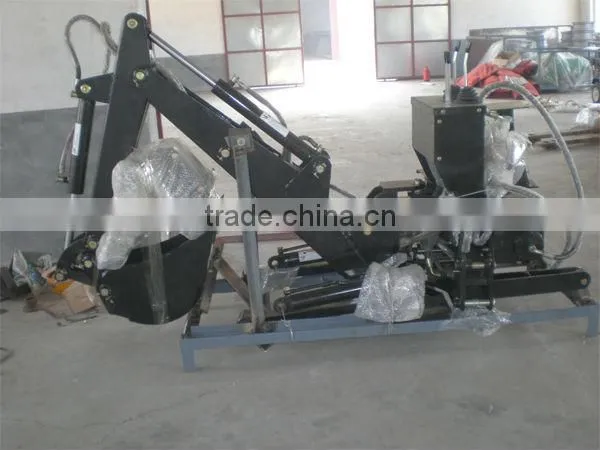

PTO Driven Backhoe in backhoe:
(RXLW-6/-12 TYPE)
Features:
1.PTO driven with pump and oil tank.
2.Attached tractor by 3 point linkage.
3. Matched 16-150hp tractor.
4.Use hydraulic transmission compact structure,
highly standardized hydraulic elements.
5.Flexibility, convenient operation, quick mounting and dismounting.
6.Manufacturer.
Specifications:
Backhoe Model |
LW-6 |
LW-7 |
LW-8 |
LW-9 |
LW-10 |
LW-12 |
Matching Tractor(hp) |
16~35 |
25~75 |
45~85 |
50~100 |
70~125 |
80~150 |
Digging Depth(m) |
1.85 |
2.15 |
2.64 |
2.9 |
3 |
3.5 |
Unloading Height(m) |
1.7 |
1.9 |
1.95 |
2.4 |
2.5 |
2.8 |
Digging Height(m) |
2.5 |
3.4 |
3.5 |
3.9 |
4 |
4.3 |
Digging Radius(m) |
2.8 |
3.4 |
3.9 |
4.0 |
3.9 |
4.3 |
Maximum Swing Angle(°) |
140° |
140° |
140° |
160° |
160 ° |
160° |
Bucket Rotation Angle(°) |
160° |
160° |
160° |
150° |
150° |
150° |
Bucket width(mm) |
250 |
300 |
400 |
450 |
500 |
550 |
Bucket capacity(m3) |
0.03 |
0.036 |
0.048 |
0.054 |
0.06 |
0.07 |
Weight(kg) |
620 |
650 |
680 |
720 |
760 |
780 |
MODEL one: By ONE PTO shaft attached the backhoe connected the tractor PTO.
MODEL two: By hydraulic additional device connected the tractor PTO.
