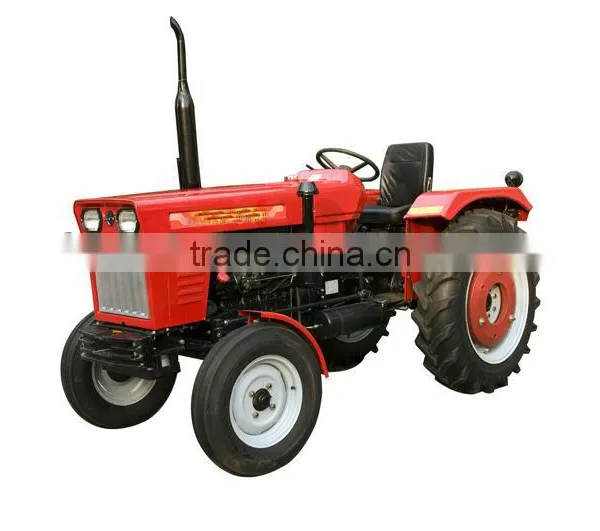

Mini Tractor

Mini Tractor thumbnail-1
Mini Tractor photo-1
US$ 2,000 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
Usage:
Farm Tractor
Contact Supplier Request Quote Chat Now
Weifang Runshine Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
Usage Farm Tractor
Drive Type Gear Drive
Certificate Other
Brand Name Runshine
Model Number RXTS-250
Place of Origin Shandong, China
After-sales Service Provided Overseas service center available

Specifications

Farm tractor 25-50hp
EEC approved,COC documents
RXTS-250,25hp,2WD,4WD,hydraulic steering,
can attach loader and backhoe eas

                                                               hot sale agricultural machinery farm  MINI tractor

farm tractor with round baler ,potato harvester,disc plough u others machines.Q









Model TS250 TS254
General Specifications Type 4X2 4X4
Overall dimensions LxWxH(mm) 3065X1430X2090 3085X1340X2100
Constructional weight(kg) 1210 1400
Rated traction force(kN) 8.82 11.03
Wheel base(mm) 1703 1755
Front wheel tread(mm) 1104-1504(Adjustable) 1175
Rear wheel tread(mm) 1104-1504(Adjustable) 1100-1500(Adjustable)
Min.land clearance(mm) 420 340
Min.quality in use(kg) 1340 1540
Front wheel tyre size 4.0-16 6.0-16
Rear wheel tyre size 9.5-24 9.5-24
Min.turning radius(mm)(Unilateral Nonbraking/Unilateral Braking) 3100±200/2800±200 3800±200/3000±200
Theoretical speed(km/h) Creeper Shuttle gear Creeper Shuttle gear
1 0.42 2.37 0.32 1.82
2 0.49 2.76 0.38 2.12
3 0.8 4.48 0.62 3.46
4 1.27 7.11 0.97 5.48
5 1.65 9.27 1.27 7.13
6 1.92 10.8 1.48 8.32
7 3.13 17.58 2.41 13.54
8 4.97 27.87 3.83 21.47
Reverse1 0.38   0.29 1.57
Reverse2 1.42   1.9 6.15
Engine Model FD295TA-3
Type Inline,Vertical,Water-cooling,Four-stroke
12 hours power(kw) 18.5(25HP)
Rated Speed(r/min) 2100
Fuel consumption(g/kw.h) ≤250
Max.torque(N.m) ≥96.9
Speed of Max.torque(r/min) ≤1575
BorexStroke(mm) φ95×115
Diesel Consumption(g/kW.h) ≤1.84
Starting mode Electric start
Break System Service Brake Mechanical,Closed,Shoe
Parking Brake Locking footplate type
Transmission Clutch Dry,One stage
Gear box Spur gear (4+1)X2 plain compound type
Steering Mechancial steering Hydraulic steering
Steering type Front wheel steering
Main Drive Spiral bevel gear
Differential Mechanism Two planet bevel gear,Closed
Final Drive Externalgearing straight tooth type
Operating System Lifter tilling depth control Position adjustable
Max.lifting capacity(kn) ≥4.16
Suspension type Postposition,Three-point,I category
Speed of P.T.O.(r/min) (540,1000),or (750,1000),or (540,750)
Type of P.T.O. Six splines
Traction Equipment Stationary type or swing type
Optional Disposition Air brake,Rear ballast, Draft and position adjustable lifter,New hood,Dual-stage clutch







mini tractor




 We can also provide Jinma tractors, various series!





JM-204(LL380EPA diesel engine, 4WD ,dual stage clutch ,hydraulic steering ,roll bar,canopy)

JM-254(Y385EPA diesel engine, 4WD, dual stage clutch ,hydraulic steering ,roll bar,canopy)

JM-304(LL480EPA diesel engine, 4WD,dual stage clutch ,hydraulic steering ,roll bar,canopy)

JM-354(4L22EPA diesel engine, 4WD,dual stage clutch ,hydraulic steering ,roll bar,canopy)

JM-454(C490AEPA diesel engine, 4WD,dual stage clutch ,hydraulic steering  ,hydraulic remote transmission ,roll bar,canopy)

JM-554(C490AEPA diesel engine, 4WD,dual stage clutch ,hydraulic steering  ,hydraulic remote transmission ,roll bar,canopy)

JM-604 (SL4105AEPA diesel engine, 4WD,dual stage clutch ,hydraulic steering,hydraulic remote transmission ,roll bar,canopy)

JM-804(R4105I diesel engine,80HP, 4WD, dual stage clutch, hydraulic steering,hydraulic remote transmission, roll bar and canopy)
