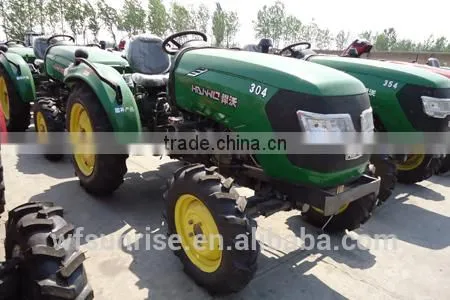

Help Center4WD, 4x4 30HP 304 Small Farm Tractor
Related Products
Specifications
-25hp 4WD farm tractor-8+8 gearshift
-hydraulic steering
-pneumatic braking
-dual clutch
Weifang Runsing Machinery Co., Ltd
Runsing Machinery are experts in and manufacturer of agricultural machinery in China for years. And Runsing Machinery dedicate to the international market research and development of agricultural equipment. After 17 years of research, development, after-sale and customer accumulation, Runsing Machinery ahs bee a great many changes in its business, its products, its services. Change always comes with opportunity, and Runsing has never outgrown, nor forgotten, its founder's original core values: integrity, quality, commitment and innovation, Those values determine the way we work, the quality we offer, and unsurpassed treatment you get as a customer, investor, employee.

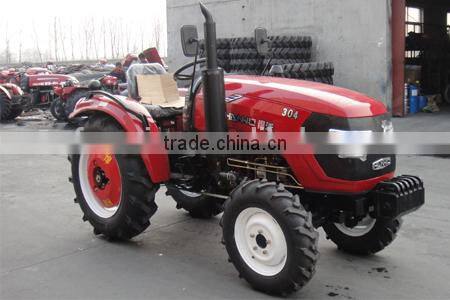

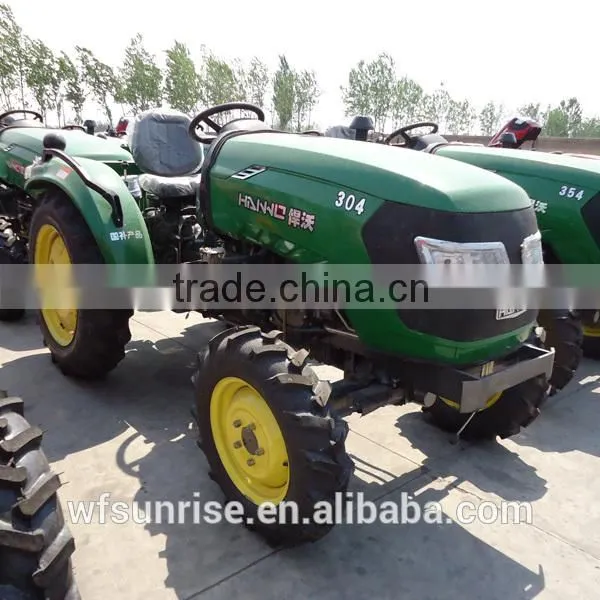

4WD 4x4 30hp 304 farm tractor specifications:
| Model | 304 farm tractor | ||
| Type | 4WD wheeled type | ||
| Dimension of tractor (mm) | Length (to frong ballast) | 2850 | |
| Width | 1560 | ||
| Height (to the exhaust vent) | 1896 | ||
| Tread | Front wheel | 1200 | |
| Rear wheel | 1200 | ||
| Wheel base | 1660 | ||
| Min. ground clearance | 300 | ||
| Dry mass | 1250 | ||
| Ballast weight (kg) | Front ballast | 60 | |
| Rear ballast | 70 | ||
| Rated traction force (KN) | 7.4 | ||
| Engine | Model | LD390 | |
| Type | Vertical water cooled and 4-stroke | ||
| Rated power (kw) | 22.1 | ||
| Rated speed (r/min) | 2400 | ||
| Fuel | Diesel oil | ||
| Tire | Front wheel | 6.00-16 | |
| Rear wheel | 9.50-24 | ||
| Clutch | Dry-friction, single stage or dry-friction, two stage | ||
| Steering | Mechanical type or hydraulic type | ||
| Transmission box | (4+1)x2 or (4+1)x2x2 (with creeping shift) | ||
| Suspension type | 3-point suspension Class 1 | ||
| PTO shaft | Tire and Rev | Non-independent type 720 or Non-independent type 540/720 | |
| Spline size | I35 rectangle spline with 6 teeth (6x28.91x34.79x8.69) | ||

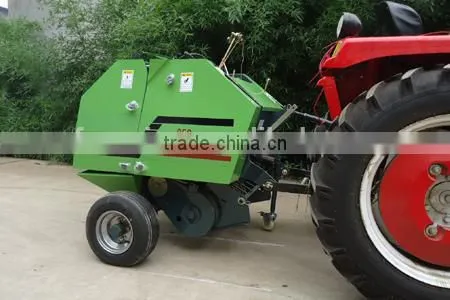

Tractor round baler:
-Model: RXYK-0850, RXYK-0870
-Bale size: 50x70, 61x70 cm
-Overall: 115x130x120, 130x130x135 cm
-Weight: 390, 420kg
-Pickup width: 80cm
-Efficiency: 2-5km/hour
-Capacity: 80-120 bales/hour, 80-100 bales/hour
-Matched power: 25-50hp tractor
PTO speed: 540 rpm

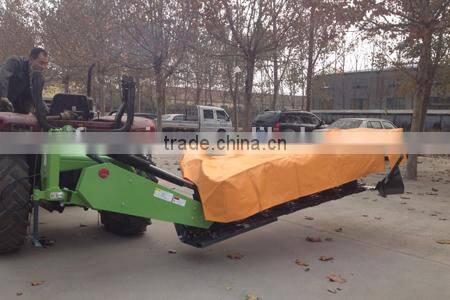

Tractor disc mower:
| Model | DRM-130 | DRM-170 | DRM-215 | DRM-255 |
| Matched power (hp) | 18-50 | 35-80 | 40-80 | 45-90 |
| 3 point linkage | Cat, I or II | Cat, I or II | Cat, I or II | Cat, I or II |
| Length (mm) | 2080 | 2533 | 2950 | 3270 |
| Width (mm) | 1180 | 1180 | 1280 | 1280 |
| Height (mm) | 780 | 780 | 780 | 780 |
| Weight (kg) | 280 | 370 | 400 | 450 |
| Woking width (mm) | 1300 | 1700 | 2150 | 2550 |
| Number of disk | 2 | 4 | 5 | 6 |
| Wooking speed (km/h) | 4-10 | 4-10 | 4-10 | 4-10 |

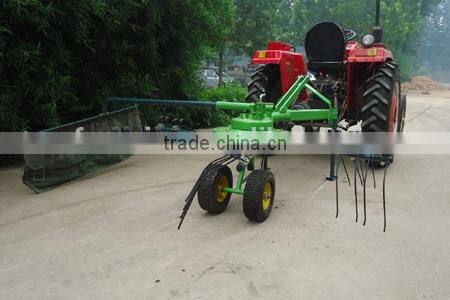

Tractor hay rake tedder:
-Model: RXHR-2500
-Raking width: 2500mm
-Tedding width: 1600mm
-Dimension: 2100x2500x950mm
-Weight: 160kg
-Tine number: 12
-Working speed: 4-8km/hour
-Matched power: 18-50hp tractor
-PTO speed: 50 rpm/minute
Video:
Round baler: http://youtu.be/SIMQDTwWtgg
Hay rake: http://youtu.be/pjrmDkeq3Jk
Contact:
Ms. Sharon Geng
86 15064613979
Skype: runshine machine
