30HP 2WD Mini Agricultural Farm Tractor 300

30HP 2WD Mini Agricultural Farm Tractor 300 thumbnail-1
30HP 2WD Mini Agricultural Farm Tractor 300 photo-1
US$ 3,620 - 3,850 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Weifang Runshine Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 22.06 kw
Certificate CE
Brand Name 300 tractor
Model Number 300 farm tractor
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

-2WD 4x2 30HP 300 mini farm tractor
-JD2102 or LD390 diesel engine
-8x2 gearshift
-electric starting
-single or dual clutch

30HP 2WD mini agricultural farm tractor 300

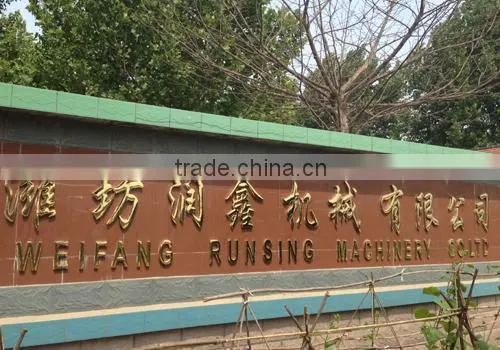

Weifang Runsing Machinery Co., Ltd

Runsing Machinery are experts in and manufacturer of agricultural machinery in China for years. And Runsing Machinery dedicate to the international market research and development of agricultural equipment. After 17 years of research, development, after-sale and customer accumulation, Runsing Machinery ahs bee a great many changes in its business, its products, its services. Change always comes with opportunity, and Runsing has never outgrown, nor forgotten, its founder's original core values: integrity, quality, commitment and innovation, Those values determine the way we work, the quality we offer, and unsurpassed treatment you get as a customer, investor, employee.

30HP 2WD mini agricultural farm tractor 300

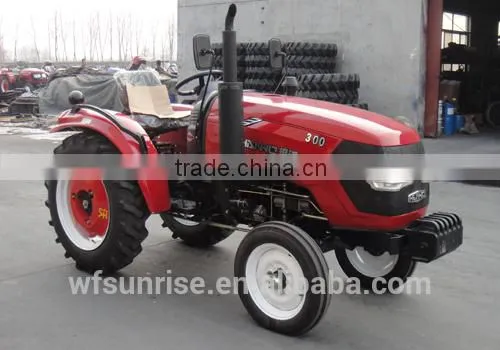

2WD 4x2 30hp 300 farm tractor specifications:

Model   300 farm tractor
Type   2WD wheeled type
Dimension of tractor (mm)       Length (to frong ballast)   2780
Width   1560
Height (to the exhaust vent)   1896
Tread  Front wheel  1200
Rear wheel  1200
Wheel base   1660
Min. ground clearance   320
Dry mass (kg)  1200
Ballast weight (kg)  Front ballast   60
Rear ballast   70
Rated traction force (KN)    5.2
Engine     Model   LD390, JD2102
Type   Vertical, Water cooled, 4- stroke
Rated power (kw)   22.1
Rated speed (r/min)   2400
Fuel   Diesel oil
Tire  Front wheel    5.50-16
Rear wheel   9.50-24
Clutch   Dry-friction, single stage or dry-friction, two stage
Steering   Mechanical type or hydraulic type
Transmission box   (4+1)x2 or (4+1)x2x2 (with creeping shift)
Suspension type   3-point suspension Class 1
PTO shaft  Tire and Rev  Non-independent type 720 or Non-independent type 540/720
Spline size  I35 rectangle spline with 6 teeth (6x28.91x34.79x8.69)

30HP 2WD mini agricultural farm tractor 30030HP 2WD mini agricultural farm tractor 30030HP 2WD mini agricultural farm tractor 30030HP 2WD mini agricultural farm tractor 300





Tractor implements:

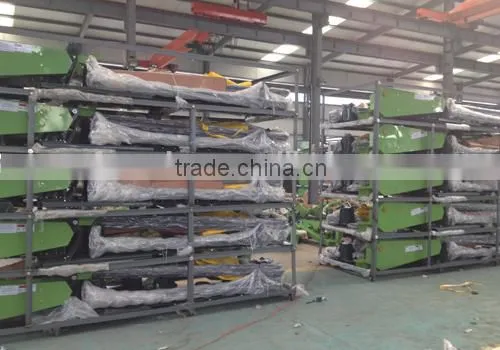

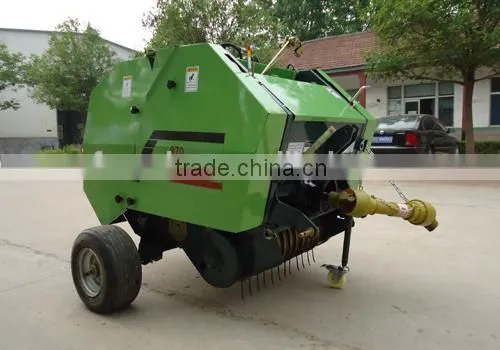

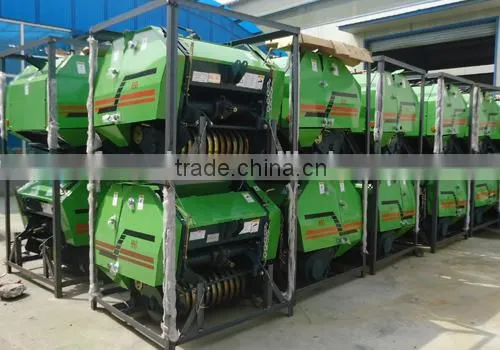

Mini round baler:

-Model: RXYK-0850, RXYK-0870

-Bale size: 50x70, 61x70 cm

-Overall: 115x130x120, 130x130x135 cm

-Weight: 390, 420kg

-Pickup width: 80cm

-Efficiency: 2-5km/hour

-Capacity: 80-120 bales/hour, 80-100 bales/hour

-Matched power: 25-50hp tractor

-PTO speed: 540 rpm

30HP 2WD mini agricultural farm tractor 30030HP 2WD mini agricultural farm tractor 300

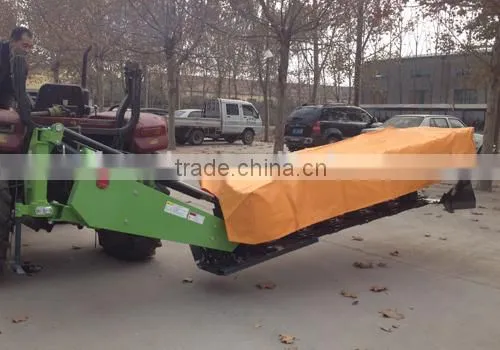

Disc mower:

Model DRM-130 DRM-170 DRM-215 DRM-255
Matched power 18-50 35-80 40-80 45-90
3 point linkage Cat, I or II Cat, I or II Cat, I or II Cat, I or II
Length (mm) 2080 2533 2950 3270
Width (mm) 1180 1180 1280 1280
Height (mm) 780 780 780 780
Weight (mm) 280 370 400 450
Working width (mm) 1300 1700 2150 2550
Number of disc 2 4 5 6
Working speed (km/h) 4-10 4-10 4-10 4-10

30HP 2WD mini agricultural farm tractor 30030HP 2WD mini agricultural farm tractor 300

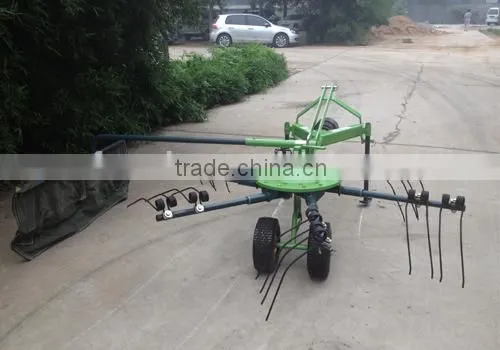

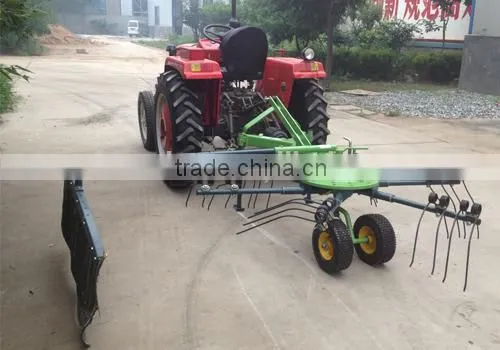

Hay rake:

-Model: RXHR-2500

-Raking width: 2500mm

-Tedding width: 1600mm

-Dimension: 2100x2500x950mm

-Weight: 160kg

-Tine number: 12

-Working speed: 4-8km/hour

-Matched power: 18-50hp tractor

-PTO speed: 540 rpm/minute

30HP 2WD mini agricultural farm tractor 30030HP 2WD mini agricultural farm tractor 300

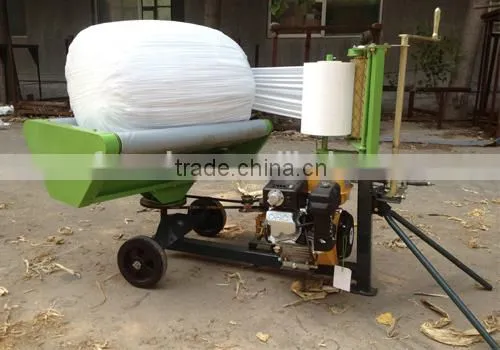

Hay bale wrapper:

-Dia. x Width for bale: 500x700mm

-Overall size: 150x87x103cm

-Weight: 85kg

-Engine: 6.5hp Subaru gasoline engine

30HP 2WD mini agricultural farm tractor 300





Video:

Round baler: http://youtu.be/SIMQDTwWtgg

Hay rake: http://youtu.be/pjrmDkeq3Jk

Hay bale wrapper: http://youtu.be/_3X7PTyDDps
