Specifications
1.Sliding partition wall2.Sound proof max 53DB
3.No floor track,top hung by ceiling track
4.,suitable to3-12meter high
Product Specification of sliwal chinese antique room folding partition screen acoustic folding partition (used office room dividers, wood partition, movable wall, restaurant partitions, soundproof folding partition, moveable partition, wall partition, living room partition wall, sandwich panel price, accordion wall, economic partition walls, folding wall, foldable partition wall, folding partition wall, movable sound proof partition, removable wall partition, folding partition, removable partition, partition, partition wall, room divider, room dividing partition, office partition, folding partition wall panel, folding wall panel, folding wall systems)
Products Details:
The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with SLIWAL Standards.
Operation:
Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.

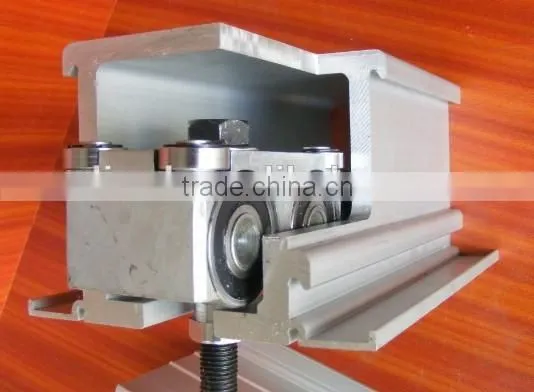

Track : The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Trolley :SLIWALCentre/ Side /Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method.
Aluminium trim : The panel trims will be standard series with exposed Aluminium trims of 10mm thickness finished in 6063 - T5 Anodized Aluminium shall be used.
Panels:
The Panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
- Basic Panels shall be equal in module.
- Approx. Weight kg/ square metre : 50kg
- Maximum height : 12000mm.
Panel Surface Finish : The panel surface will be as per the clients requirement finished either in Sliwal factory – China or by others . The normal finish such as:laminate,veneer,melamine,fabric etc.
Rectractable mechanism: The top and bottom rail of each panel shall incorporate an extruded aluminium box section mechanical seal manually operated by a handle inserted in the panel stile, turning the handle through 180 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode. Single crank type mechanisms shall activate floor and head seals.
Seals : vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.

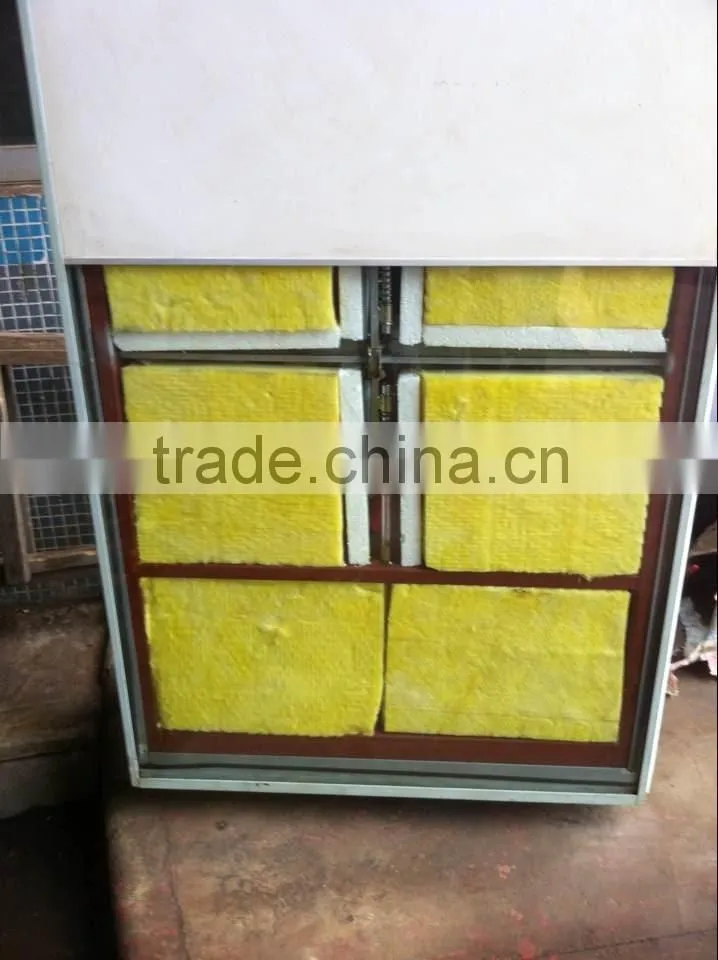

Acoustic insulation Material: Rockwool sound absorption glass fibre shall be used.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminium profiles to enhance acoustic performance of the wall.
Stacking : The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.

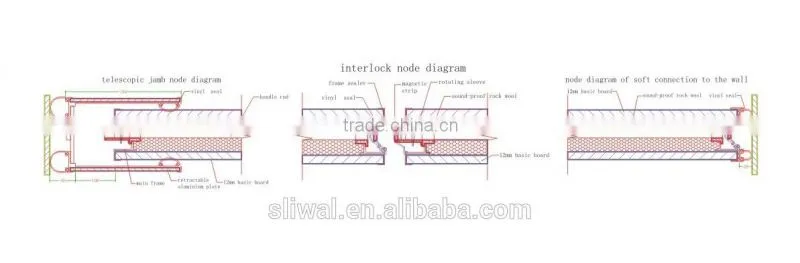

Closures:
Final acoustic closure of the operable wall shall be effected by either:
- A panel equipped with a telescopic closure.(Expanding panel)
- A full height door panel with a bulb seal.
Jambs:
The end panel of the opening opposite to the closure shall be fitted with Bulb Seal an hollow extruded vinyl Seal, the Seal shall protrude 10mm beyond the end of the panel and shall be capable of compensating for minor variations in wall surface which it abuts.

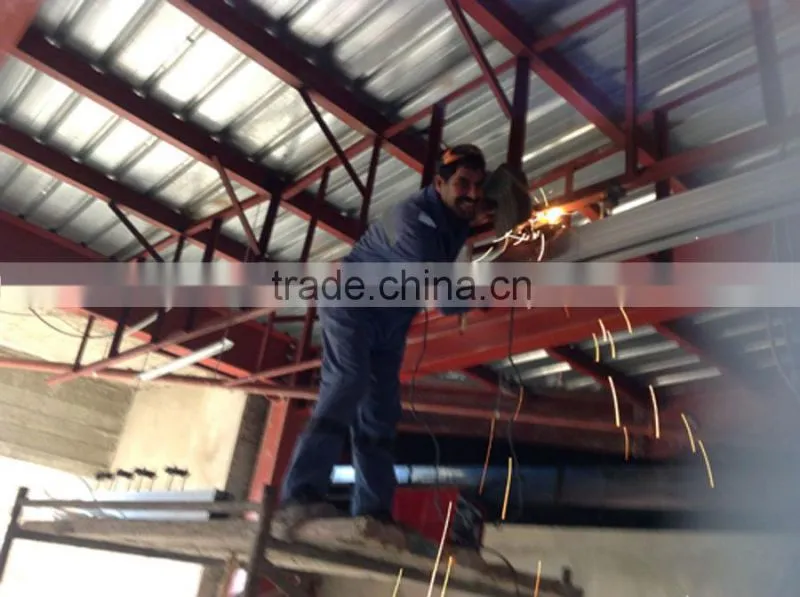

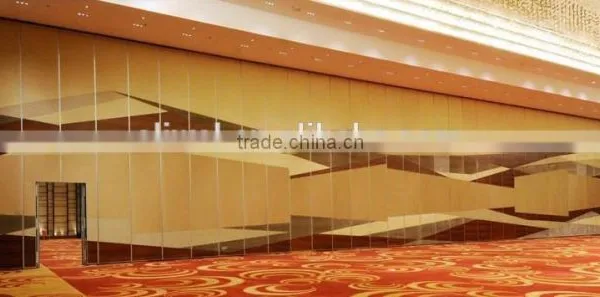

Installations:

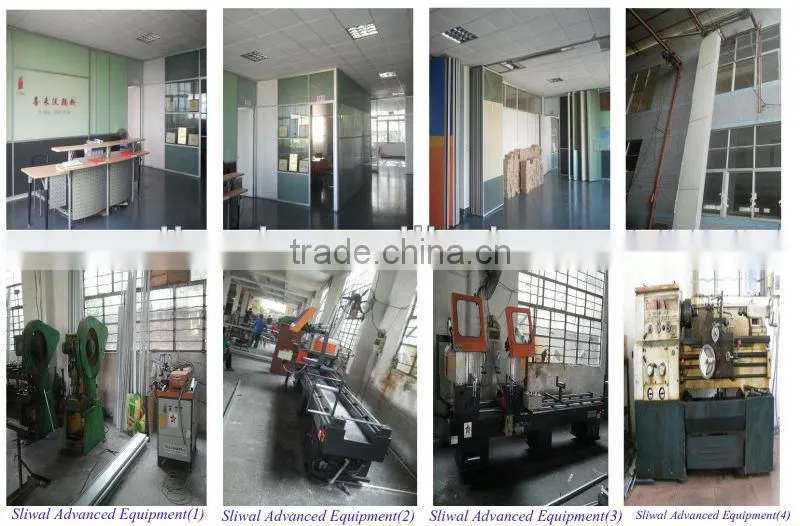

Corner of sliwal factory:
Partial Certificates:
Our clients from different countries:
Lots of containers had been exported to more than 40countries:

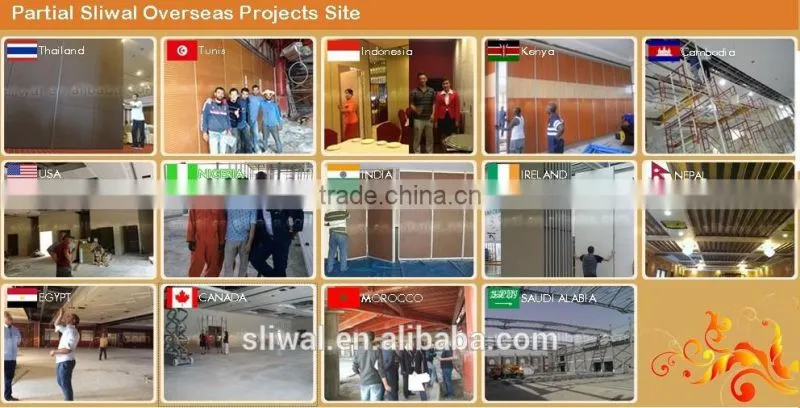

Our partial overseas project sites:
