china prefabricated homes
- 20 Twenty-Foot Container per Month
- Wuhan Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Integrated housing for outdoor residents
- Folding container house/integrated room/ 3000*2460*2510/mm
- Container house
- Container house
- Modular, steel structure plate, container assembly house, two-wing folding house, expansion house, movable board house.
- Apple Luxury House Cabin Outdoor Modern Popular Prefab House Mobile Working House Office Casa Capsula
Product Details
Place of Origin: | Hubei, China | Brand Name: | JY | Model Number: | JY-627 |
Material: | Sandwich Panel | Use: | Carport, Hotel, House, Other, Office, Shop, Toilet, Villa, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant |
Product Description
Specifications
china prefabricated homes1.High instensity
2.Quake proof
3.water proof
und insulation
china prefabricated homes

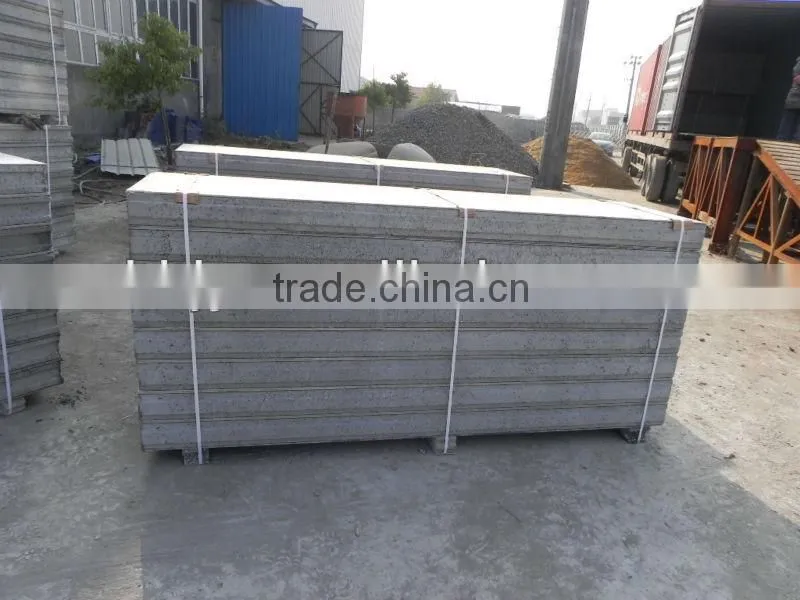

1.Composition: Fibre reinforced calcium silicon board or cement calcium silicon board as panel, with cement, EPS, Fly ash as fillers and forming by one time compound.
2.Specification(L*W*T): 1500-3000x610x60,75,90,100,120,150,180mm
3.Usage: It can replace construction materials as red brick, clay solid brick,color-coated steel sandwich board, gypsum block, wire spatial grid structure perlite board, perlite porous board etc. Interior and exterior partition on steel or concrete structure building ,for new construction, additions or renovations, such as bank, office, hospital, school, workshop and so on.
4.Product features
- Heat insulation and preservation :The feature of energy saving of Jinyi boards is mainly reflected in it’s heat preservation and insulation ,the major material is polystyrene grains and other anit-freezing and heat preserving environmental protection materials ,which could adjust the indoor temperature at a constant range thus achieving the effects of ecological adjustment .
- Water-proof& fire-proof: the face panel of Jinyi energy-saving boards on both side are 4.5mm calcium silicate fire proof boards and the main material is a mixture of cement ,sand ,fly ash and so on.tests have shown that Jinyi energy saving boards have a fire proof limit of 4 hours against a high temperature of 1000°C and the incombustibility has reached National A level,besides ,these materials doesn’t give out toxic gas and perfectly meet the international environmental standard ,the tests also prove the water containers can be made by Jinyi panel with no need for plastering and the containers have no leakage at all .
- Sound insulation and absorption: the inside constructional material ( EPS polystyrene grain ) function well in sound insulation and sound-absorbing .
- Easy construction and time saving: For the same construction work that takes 12 people and 60 minutes to complete with traditional blocks ,only 3 people and 60 minutes will do Jinyi boards ,thus can save a lot of labor and time cost the construction part .
- High Intensity and quake proof: The Jinyi energy saving boards are all with high intensity and the earthquake resistance can reach 8.5 magnitudes ,the shock resistance index is several times higher than other wall material , the boards can be nailed directly and with expansion bolt to lift and hang heavy things ,the also can be covered by ceramic tile ,wall paper and wood panel ,coating.
- Space and cost saving: The thickness of Jinyi energy boards are between 60mm to 180mm ,compared with traditional blocks ,the building area is largely increased ,in the mean time ,the weight of Jinyi boards is only 1/12 that traditional wall body ,which saves the cost on construction structure a lot .
5..Product index :
Thermal conductivit( BS 874; Part 2: 1986) | 0.221 W/0K |
Flexural Strength ( Longitudinal ) | 4.27 MPa |
Flexural Strength ( Transverse ) | 4118 N |
Moisture Movement | 0.06% |
Moisture Content | 9% |
Resistance to continuous heating | 80°c |
Surface alkalinity | PH 7-10 |
Non-combustibility ( Face Boards) | BS EN ISO 1182: 2002 BS476: Part 4 GB8624-1994, Grade A |
Head of combustion ( Face Boards) | BS EN ISO 1716: 2002 |
Fire rated partition | Euro Class A1 2 hour FRP BS EN 1364-1 BS 476: Part 22 GB/ T9978 |
Water tightness to ASTM C1185 | No droplets observed behind the panel, Test 24 hours at 250mm water head |
Partition stiffness – heavy duty grade (BS5234: Part2: 1992, Annex A) | Pass |
Resistance to structural damage by multiple impacts from a large soft body - heavy duty grade (BS5234: Part2: 1992, Annex E) | No collapse of dislocation |
Surface damage by hard body impact – heavy duty grade (BS5234: Part2: 1992, Annex B) | Pass |
Effects of door slamming – heavy duty grade (BS5234: Part2: 1992, Annex B) | Pass |
Resistance to crowd pressure – heavy duty grade (BS5234: Part2: 1992, Annex G) | No collapse or damage |
Heavy weight anchorage (high level wall cupboard) eccentric downward (BS5234: Part2: 1992, Annex K) | No damage or detachment of anchor |
Anchorage Load | 45kg |
Acoustic Performance - 60mm thick - 75mm thick - 100mm thick - 120mm thick - 150mm thick
| 38db 40db 42db 44db 46db |
