Specifications
isolating bearing bushings,precision,wear resistance,anti-corrosion,compressive strength,reducing bearing abrasive,long life

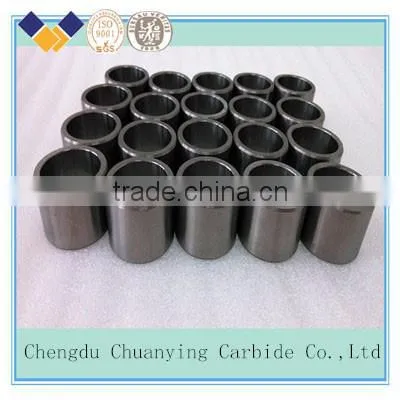

Tungsten carbide shaft sleeves is the bushing which is widely used in the important mechanical fields where long working life is essential. The TC isolating bearing bushing is of wonderful wearability, shock absorber, high hardness,abrasive resistance,anti-corrosion,rustless,low maintenance and friction,reduce bearing abrasive,high fracture strength,various available size ,long service life .
Dimension:
OD:6~450mm ID:0.8~400mm H:5~225mm
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91.0 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
2.We can develop new grade for customer's special application.
Company Introduction:

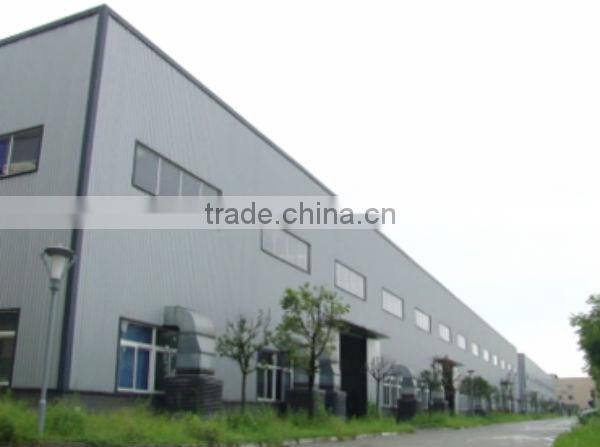

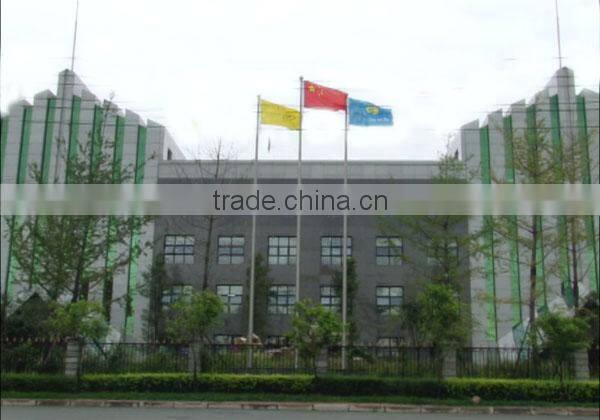

Chengdu Chuanying Carbide Co.,Ltd is a comprehensive hi-tech enterprise specializing in the research, manufacture and trade of tungsten carbide products and diamond bit. The company, with a field of 80 acres and advanced technology, has a strong capability in independent development, manufacture and trade. The engineers and technicians account for more than 30% of total staffs. Bringing in foreign advanced equipment, our workshops have equipped more than 100 advanced tungsten carbide manufacturing equipment such as milling, grinding machine, press sintering equipment, CNC lathes and so on.
The TC bushings is one of our main products,the output of which has reached average 10000 pieces per month and 50000 pieces each month to the maximum.As the manufacturer of tungsten carbide products, we also can make the shaft sleeve, nozzle, mental insert, blade and so on. Besides, we can produce special tungsten carbide mechanical sealing ring according the drawing.
WARMLY WELCOME TO VISIT OUR COMPANY.DO NOT HESITATE TO TELL ME IF YOU HAVE ANY NEEDS!
