Help CenterTungsten Carbide Thin Wall Sleeves
Related Products
-
Tungsten Carbide Splined Shaft and BushingsUS$ 50 - 75MOQ: 1 Piece -
Tungsten Carbide Oil Pump Bearing BushingsUS$ 50 - 75MOQ: 1 Piece
-
Yg8 Tungsten Carbide Submersible Pumps BushUS$ 50 - 75MOQ: 1 Piece
-
Tungsten Carbide Oil Spray NozzleUS$ 55 - 80MOQ: 1 Kilogram
-
Tungsten Carbide Car BushingUS$ 50 - 75MOQ: 1 Piece
Specifications
sintered sleeves,wear-resistance,anti-corrosion,compressive property;bushes with slot,linear;customized service,long life

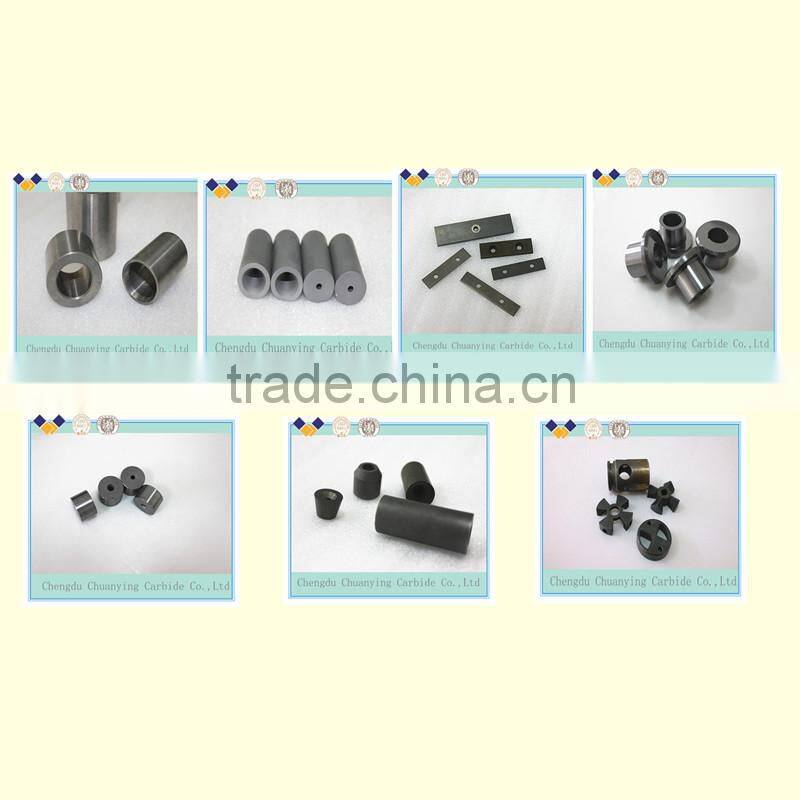

Product Information:
1, the characteristics of abrasive resistance, corrosion resistance and stable property performance,protective bushings, separate harmful from bearing
2, high precision, variously available size and shape
3, tungsten alloy material,stable performance, new model can be made according to drawings, the maximum height can reach 270mm

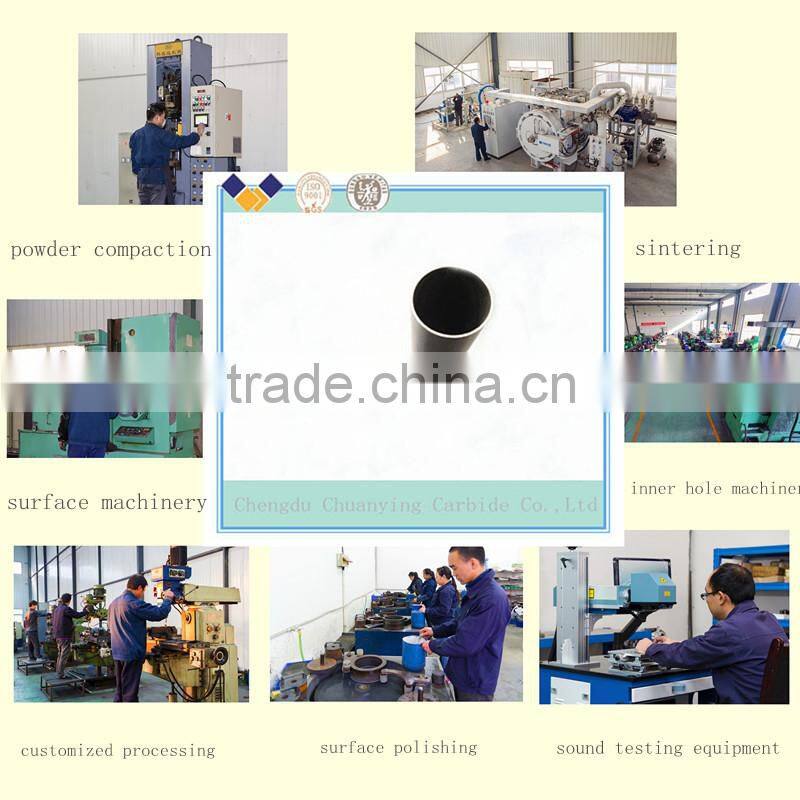

4,TC bushings,sintered bushing,various dimension,irregular shape, other series , over 100 advance machinery equipment and testing equipment to assure quality
Performance Table of Material for tungsten carbide bushings
|
GRADE
|
MAIN CHEMICAL COMPONENT (%) |
BENDING STRENGTH (>N/mm2) |
HARDNESS (>HRA) |
DENSITY (g/cm3) |
LINER BULGE MODULUS (10-6/k) |
SUITABLE MEDIUM |
||
WC |
Co |
Ni |
||||||
YWN6 |
94 |
6 |
1500 |
89 |
14.5-14.9 |
5.2 |
OIL,SWERAGE, ACIDE,FAT, FLUIDIFY, HYDEOCARBON, STRONG ALKALI WITH GRAIN |
|
YWN8 |
92 |
8 |
1650 |
88 |
14.4-14.8 |
5.3 |
||
YWN10 |
90 |
|
10 |
2100 |
87 |
14.5-14.9 |
5.3 |
|
YG6 |
94 |
6 |
1550 |
89.5 |
14.7-15.1 |
5.0 |
||
YG8 |
92 |
8 |
1700 |
89 |
14.6-14.9 |
5.1 |
||
YG15 |
85 |
15 |
2500 |
87 |
13.9-14.2 |
6.3 |
||
KINDS OF TUNGSTEN CARBIDE STRUCTURE ACCOEDS WITH CHINESE STANDARD YS/T400 | ||||||||
Processing Details
Other Related Products
Packaging
1,soft foam to prevent the surface being scratched in one small carboard boxes, several small boxes in one larger hard carboard with fills to avoid a slope, besides hard carboard is easy to load and transport
2, we can also arrange packaging according to your special requirements or discuss
3,product code on cardboards instead of any company information such as logo to keep deal information secret and beneficial to customs clearance
Shipping
There are three ways to be choose, as follows:
1,International Express: UPS,TNT,DHC
2,Port transportation: all ports
3,We delivery products according to customer’s requirements and paid by buyer after the destination confirmation
4,take insurance for the goods according to contract
Our Service
1. ISO,BV certificate and sound testing equipment to assure quality
2. Professional advice for the application problems, we accept return of goods with quality problems or discuss
3. Survey Email of products usage will be sent timely to listen your feedback ,our aim is trying to make everyone of our customers satified!
Company Introduction:

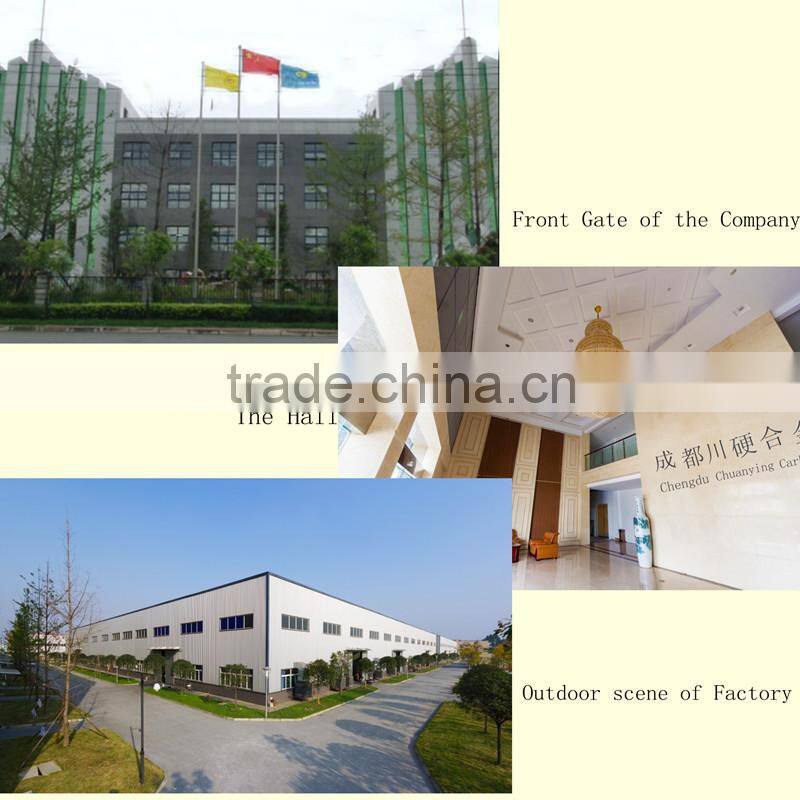

Chengdu Chuanying Carbide Co.,Ltd is a comprehensive hi-tech enterprise specializing in the research, manufacture and trade of tungsten carbide products and diamond bit. The company, with a field of 80 acres and advanced technology, has a strong capability in independent development, manufacture and trade. The engineers and technicians account for more than 30% of total staffs. Bringing in foreign advanced equipment, our workshops have equipped more than 100 advanced tungsten carbide manufacturing equipment such as milling, grinding machine, press sintering equipment, CNC lathes and so on
carbide bushings is one of our main products the output of which has reached 10000 pieces per month,50000 to the maximum .As the manufacturer of tungsten carbide products, we also can make seal ring, nozzle, mental insert, blade ,wortle,material bars and so on. Besides, we can produce special tungsten carbide mechanical sealing ring according the drawing.
WARMLY WELCOME TO VISIT OUR COMPANY.DO NOT HESITATE TO TELL ME IF YOU HAVE ANY NEEDS!
