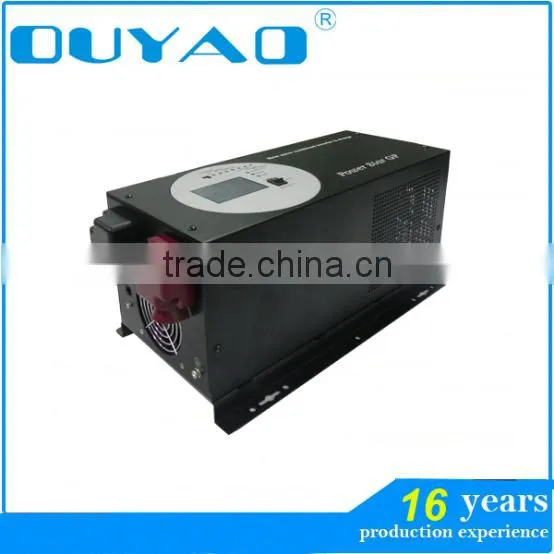

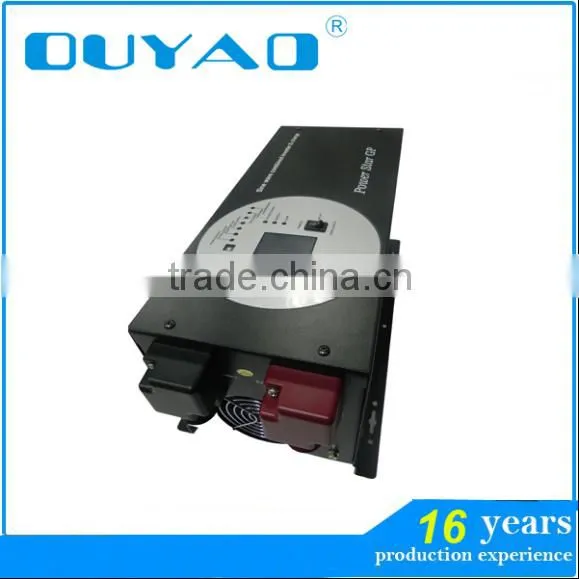

2KW GP Series Pure Sine Wave Inverter
Products Description:
This GP series low frequency inverter, it is equipped with LED+LCD screen,, so all information is displayed in details. Advantages include high transfer efficiency, low power consumption, strong ability, big charge current etc. It is built with 3 step intelligent charger, which will prolong battery’s life.
Features:
1. Suitable for all electric equipment.
2. LED+LCD display detailed content.
3. Controlled by CPU, fast transfer time.
4. Power saver mode is available when less than 25W.
5. Built with battery charger, provide big charge current.
6. Could be compatible to grid power and diesel generator.
7. Intelligent battery management system, prolong battery’s lifespan.
8. Perfect protection: low voltage, high voltage, over heat, short circuit, and over load protection.

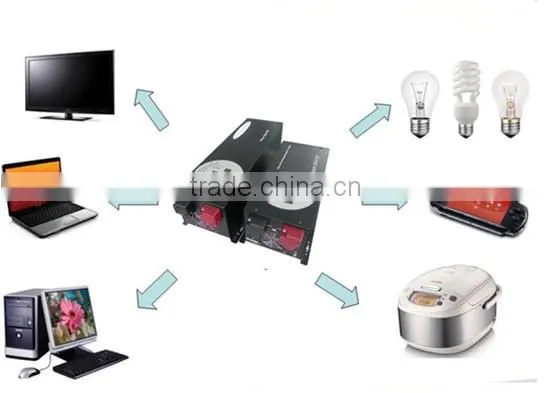

Application:
Specification:
Model |
GP2022 |
GP2032 |
|
DC Voltage |
24V |
48V |
|
Rated Power (W/VA) |
2000 |
||
Surge Power(W/VA) |
6000 |
||
Inverter Output |
Wave Form |
Pure Sine Wave |
|
Output Voltage |
120VAC/230VAC |
||
Output Frequency |
50HZ/60HZ |
||
Inverter Efficiency |
Bigger than 88% |
||
AC Mode Efficiency |
Bigger than 95% |
||
Power Factor |
1 |
||
Typical Transfer Time |
10ms |
||
AC Input |
Input Voltage |
120VAC/230VAC |
|
Input Voltage Range |
90VAC-150VAC, 184-270VAC |
||
Normal Frequency |
50HZ/60HZ (auto detect) |
||
Frequency Range |
47-55HZ for 50HZ, 57-65HZ for 60HZ |
||
Battery |
Charge Current |
35A |
25A |
Low Battery Alarm |
10.5VDC for 12VDV mode (*2 for 24VDC, *4 for 48VDC) |
||
Low Battery Cut Off |
10VDC for 12VDV mode (*2 for 24VDC, *4 for 48VDC) |
||
High Voltage Alarm |
16VDC for 12VDV mode (*2 for 24VDC, *4 for 48VDC) |
||
Protection |
Over-load Ability |
(110%<load<125%) ±10%: Fault (shutdown output) after 15 minutes; 125%<load<150%) ±10%: Fault (shutdown output) after 60s; Load>150% ±10%: Fault (shutdown output) after 20s |
|
Bypass |
Backup Resource |
Grid Power or Diesel Generator |
|
Breaker Rating |
30A |
||
Max Bypass Current |
30A |
||
no battery connected |
Yes |
||
Mechanical Specification |
Mounting |
Wall |
|
Display |
LED+LCD |
||
Dimension(mm) |
442*218*180 |
||
Net Weight (KG) |
21 |
20 |
|
Other |
Operation temperature |
0℃-40℃ |
|
Noise Level |
Less than 40dB |
||
Warranty |
1Year |
||

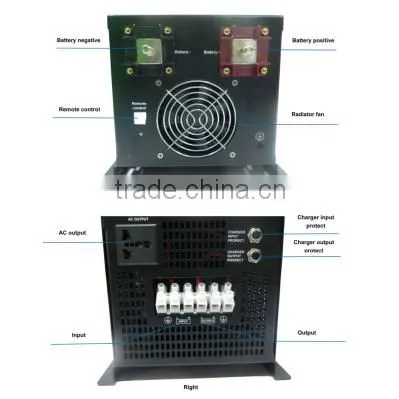

Product Details:

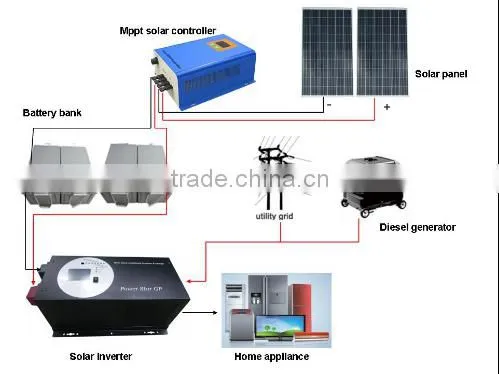

For Off grid Solar System:

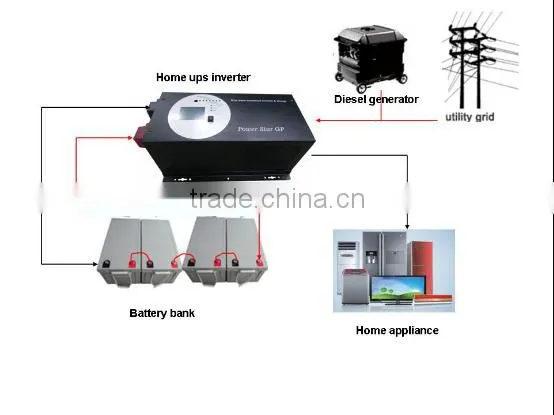

For UPS System:
Pakage:

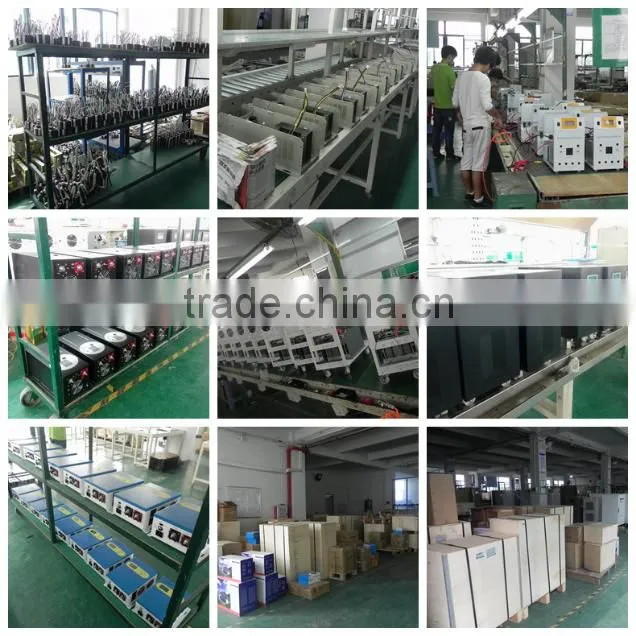

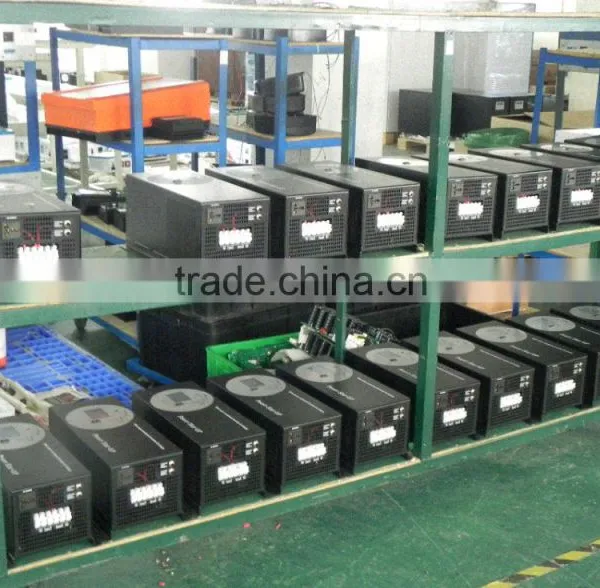

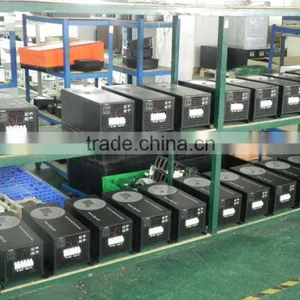

Production line:
Sales Record:
Company View:
Exhibition:
Our Partner:
