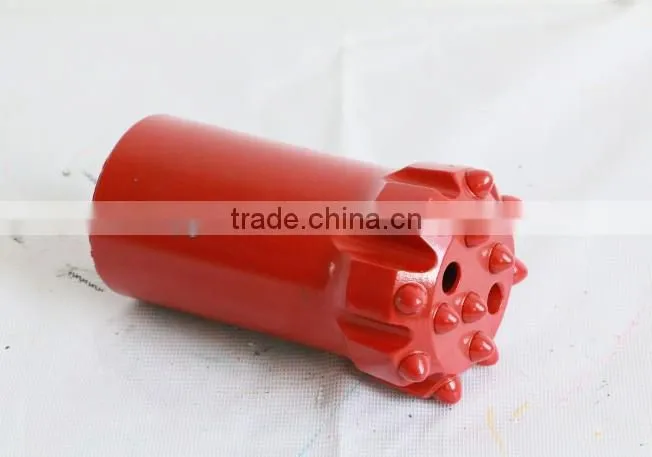

plug hole integral steels, taper drilling tools,taper drilling rod

Specifications

1.15 years manufacturer
2. Certificate: ISO9001
3. Material: carbide steel
4. Thread R25, R28, R32, R35, R38, T38,T45,T51

plug hole integral steels, taper drilling tools,taper drilling rod :



1. Drop Center Bit

For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.

2. Concave Face

The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.

3. Convex Face

For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.

4. Double Gauge Face

This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.

5. Flat Face Bit

This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.



Carbide button shape selection:

1. Domed/Round Button

2. Parabolic/Semi-Ballistic Buttons

3. Ballistic Button

4. Sharp Button

5. Flat Button

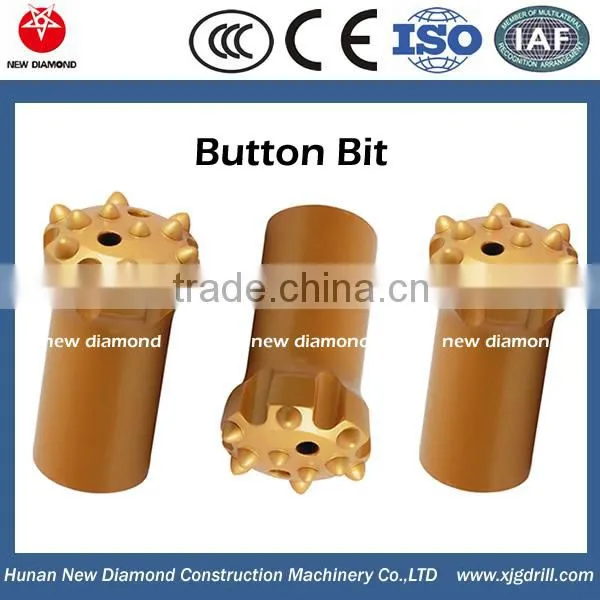

Product Name:	thread button rock drill bits
Description:	drill bits thread Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment like Atlas.
Material:	Alloy steel bar and tungsten carbide bit
MOQ:	No MOQ required for testing and trial order
Body Type	Normal type and retract type
Thread type	R22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60
Diameter	32mm-152mm
Button bit shape	Spherical and Ballistic
Face shape	Flat shape and Drop-center shape
