Eccenetric Overburden Rock Air Drilling Tools(NOD90)

 Eccentric Overburden Drilling Equipment:

1. 10 years manufacturing experience;

2. Certificate: ISO9001:2008

3. Material: Carbide

Eccentric Reamer System Step-by-step

1. When drilling starts, the reamer swings out and reams the pilot-hole wide enough for the casing tube to slide down behind the drill bit assembly.

2. When the required depth is reached, rotation is reversed carefully, whereupon the reamer swings in , allowing the drill bit assembly to be pulled up through the casing.

3. Casing tubes that are to be left in the drill hole should be sealed at the bottom of the hole by means of cement grout or some other sealing agent.

4. Drilling continues to the desired depth in the bedrock using a conventional drillstring.

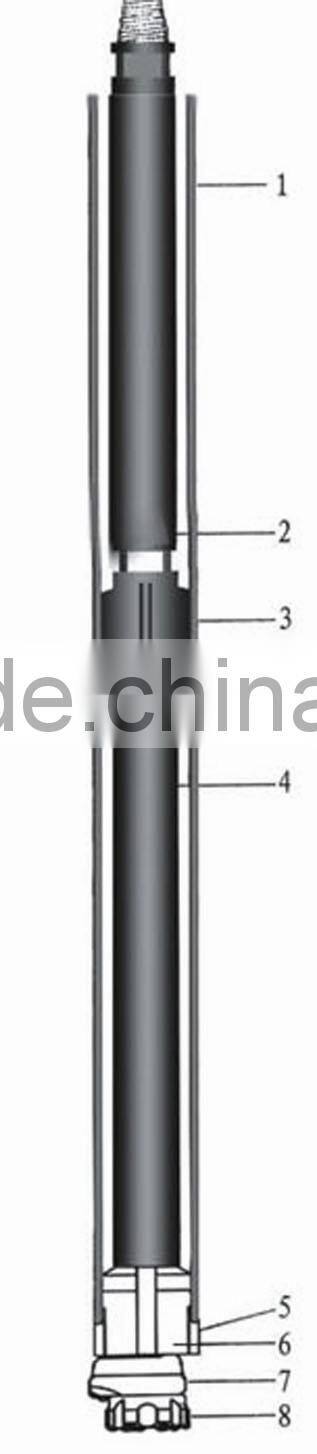

NOD90 Eccentric Overburden Drilling Equipment

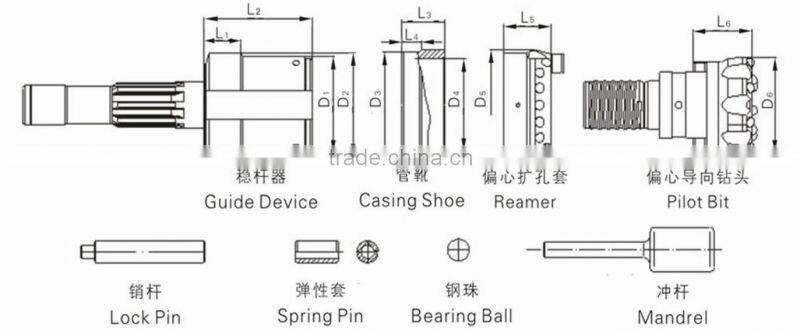

Technical Data
