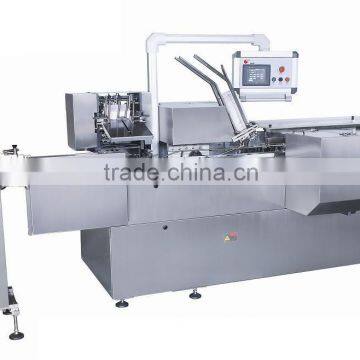

powder makeup Bottle Cartoning Machine

Cream Bottle Cartoning Machine

Cream Bottle Packing Machine

Brief introduction:

Cartoning machine used for packing ice cream into carton box .

The machine change the traditional packing by hand, greatly improve the working efficiency, reduce the cost, save labor(on the basic of the original handmade cartooning machine, each line could be save 6-7 people). The machine is controlled by PLC, speed is adjustable, capability is stable, running is safe, and it is with GMP standard.

PLC Control system GMP compliant design

Chang product quickly conveniently auto-carton safe control

The contacting part with food adopt harmless material stainless steel

Main Technical Data:

Output: steady running speed 50-100 carton/ min( machine running speed is 110)

Min size: Length: 65mm Width: 35mm, Height: 12mm

Max Size: Length 200mm, Width 170mm,Height: 90mm

Electrical power Connection :380±10 V,50HZ 4KW (can be according with customer requirements)

Compressed Air pressure:0.6 Mpa

Air Consumption:150 NL/min

Air compressor:≥0.22m3/min(self-prepared)

Overall Dimensions: 2950×1400×1530mm

Weight: 1200KG

used in food packaging (cookies, frozen food, pastry,bread,ice cream), daily necessities
