Outdoor 12 core fiber optic distribution box IP66

Fiber optic distribution box is used for the distribution connection of cabla and fiber optic communication

devices. It leads out optic signal from drop cable to pigtails by splicing in the box. It can be used for protective

connection of cable and layout pigtails, and fiber optic termination of fiber access network. It is suitable for

outdoor, corridor, weak current silo or connection points of vilas, for the splicing, storage and distribution of

local cable or drop cable, with capacity of 24 cores or 48 cores.

Features

1. The box is made of imported flame retardant material, with aging resistant and ultra violet resistant characters

2. Sealing with pressed strip, waterproof and dustproof with IP65

3. Special screw and key for its door lock; can be installed on wall or mounted on pole

4. Spare pigtails and drop cable can be save in storage part, convenience for maintenance

5. Special lock device for outlet of drop cable

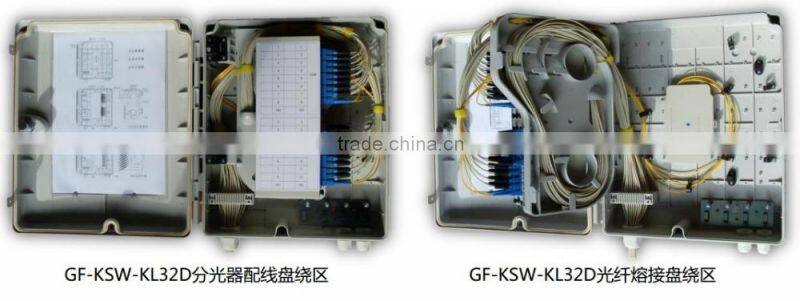

6. Bilayer structure, bottom for splicing and upper layer for splitting and distribution

7. There are 24-48 positions for adapters of FC, SC or ST

8. Maximum 2 pieces of splice tray for satisfying of connection

Technical Parameter

Working temperature: -20°C~+60°C

Relative humidity: ≤90%(+30℃)

Atmosphere pressure:62-106Kpa

Insertion Loss:lL ≤0.3dB(PC), 1L ≤0.3dB(APC)

Return Loss: PL≥40dB(PC), RL≥50dB(UPC), RL≥60dB(APC)

Accessories

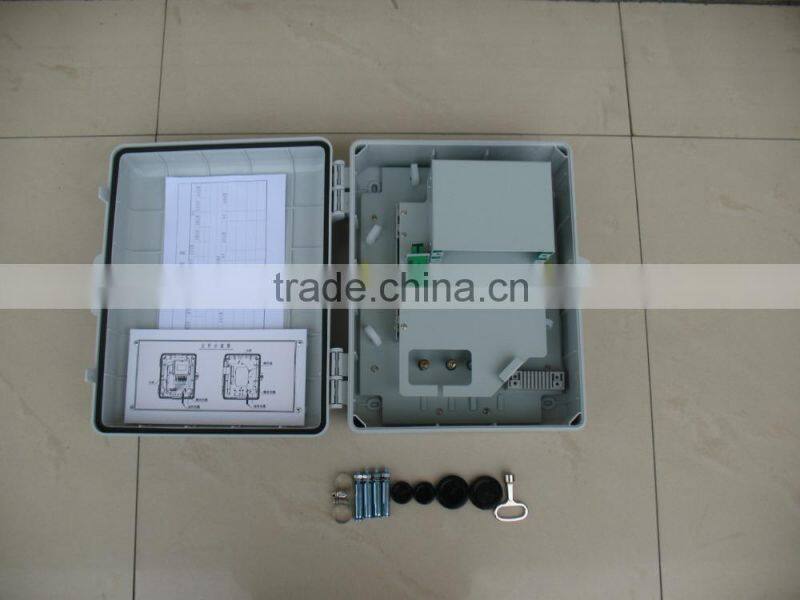

Splice cassette and cable management tools, installation nuts and bolts, heat shrinking tube, rubber seal, hose clamp

Sichuan Yuantong communication Co.,Ltd is a company specializing in the development of optical communication products, production, sales and with independent right of high-tech enterprises.

Address: Chengdu Southwest Airport Economic Development Zone, from the Shuangliu Airport, highway takes only a few minutes.

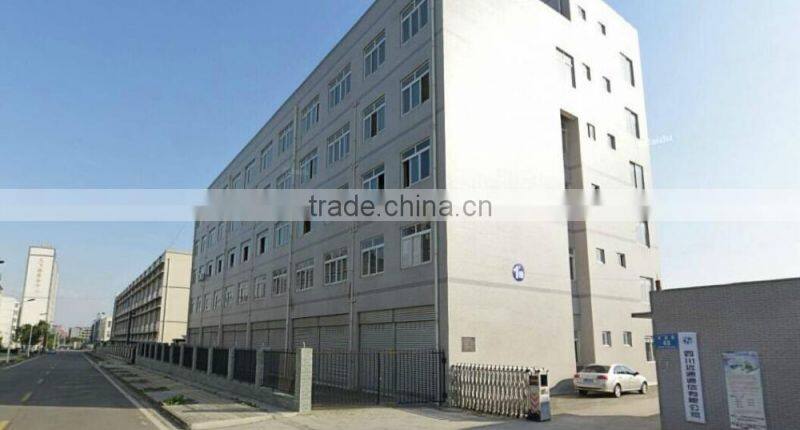

Scale of company: More than 4000 square meters (office building area 1200 square meters, plant construction area of 2500 square meters, containing optical fiber cable workshop, workshop, extrusion workshop, preparatio workshop)

Staff: More than 150 workers

Main product: the covered optical cable,indoor cable and FTTH professional solution for the whole series of products

Our market: United states, Europe, the middle East and Southeast Asia and many other countries

1. Order Information:
    Trade term: EXW/FOB/CIF
    Delivery Time: 3-5 working days time. 15-25 working days mass order.

2. Trade Terms:
    Payment term: T/T 30% Deposit after order confirmed, later delivery pay the 70% (remaining balance) after goods ready before shipping.
    Sample: Be ready in 3~10 days once payment received.

3. Our services:
    For all your inqires about our product, we will reply to you within in 24 hours.
    We offer OEM and ODM services. Can print your logo in our products.
