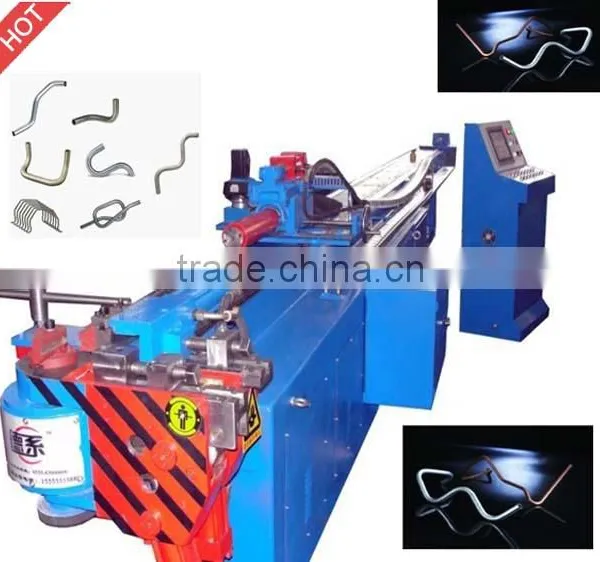

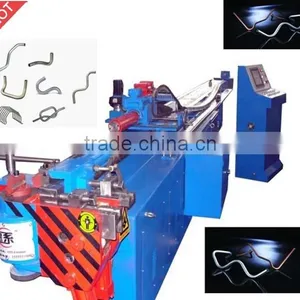

Help CenterDexi W28K-38 Electric CNC H Steel Bar Bender
Related Products
-
Dexi W28K-38 Electric CNC H Steel Bar Pipe Tube BenderUS$ 1,000 - 10,000MOQ: 1 Piece -
4 Inch CNC Tube BenderUS$ 1,000 - 10,000MOQ: 1 Piece
-
4 Inch CNC Pipe BenderUS$ 1,000 - 10,000MOQ: 1 Piece
-
W24YPC-30 PLC Aluminum Profile RollerUS$ 1,000 - 1,100MOQ: 1 Piece
-
W24YPC-30 PLC Aluminum Section RollerUS$ 1,000 - 1,100MOQ: 1 Piece
Specifications
Electric CNC H steel bar Bender,Deliver 30 days;14 months warranty;24hrs+7days service;20 container plywoodcase;TT,LC
The Electric CNC H steel bar Bender is servo motor driven; high bend accuracy; The tube bender bend pipes no wrinkles or cracks; low noise,
easy operation; German technology, favorable price.It can also bend square tubes or pipes,flat bar,U or channel steel,H steel, round bar,angle bar steel, etc.
1 , the machine raw material is reinforced to be firm and strong. Annealed to eliminate internal stress , prevent from anti-permanent deformation.
2 , Servo motor can realize push bending large radius.High bend accuracy, no wrinkles,no cracks.
3 , The drive shaft is installed from the upper, precise installation and easy maintenance . Bend shaft and drive chains are casted integratedly. Drive spindle driven by double cylinder, 5 rpm bend speed, high bend accuracy. Return bend speed 8 rpm; rapid reset; throttle buffer design makes high reset accuracy.
4, The feeding system can feed the pipe several times according to the pipe bend numbers.( AC servo motor closed-loop control is adapted) .
5, Three dimensional bend pipes, feeding system,bend system,rotary system are all servo motor controlled.( AC servo motor closed-loop control ) .
6, Touch-screen display; input bend data on PC and automatically bend pipes. touch screen + PLC + servo motor control, reliable.
7, The programmable controller can preset 16 kinds of 3-D bend. Bending repeat accuracy : ± 0.1 °.
8, Foot switch power on and off, easy operate and safe. It can fulfil the whole bend process: feeding, clamping, bending,rotating,downloading.
9, Simulation software inserted to check the bend situation or possible bend errors.
10, Automatic lubrication system.
11,Water or wind cooling device can keep the hydro oil in suitable temperature. High speed and stable hydro oil output.
12, Oil pump,stable working function, low vibration, low noise.
13, automatic and efficien multi-radii pipe bending; Bend pipes for aerospace, vehicles, motorcycles , refrigeration, shipbuilding etc.
14,DexiTM efficient and reliable cnc pipe bender, fast deliver in time, considerate after-sale service. One year warranty time .
15, Special accessories of the machine can be provided according to customer’s requirements, eg.,anti-wrinkle device,etc.
No. |
Name |
Parameter |
Unit |
|
1 |
Max. Rotary distance |
5000 |
N.m |
|
2 |
Max. Bend OD |
Φ38*4 |
mm |
|
3 |
Min. Bend OD |
Φ5 |
mm |
|
4 |
Max. Bend radius |
R200 |
mm |
|
5 |
Min. Bend radius |
R20 |
mm |
|
6 |
Max. Bend angle |
195 |
° |
|
7 |
Feeding trolley follower stroke |
3000 |
mm |
|
8 |
Pipe end min. length |
300 |
mm |
|
9 |
Mold center height |
40 |
mm |
|
10 |
Machine working height |
1100 |
mm |
|
11 |
Bend speed C shaft |
0-5 |
r/min. |
|
12 |
Clamping set speed B shaft |
0-10 |
r/min. |
|
13 |
Feeding trolley walking speed Y shaft |
0-30 |
m/min. |
|
14 |
Speed series |
variable speed |
|
|
15 |
|
C shaft |
+/-0.1 |
° |
Y shaft |
+/-0.1 |
mm |
||
B shaft |
+/-0.1 |
° |
||
16 |
Angle pre-set |
99 |
type |
|
17 |
Stop(plug) torque |
5000 |
N*m |
|
18 |
Motor total power |
5.5 |
kw |
|
19 |
Hydraulic system working pressure |
<=8 |
MPA |
|
20 |
Fuel tank capacity |
1000 |
L |
|
