6Y-220 sesame oil extraction machinethe most convenient operable mini oil press with the highest oil rate and least wear spare

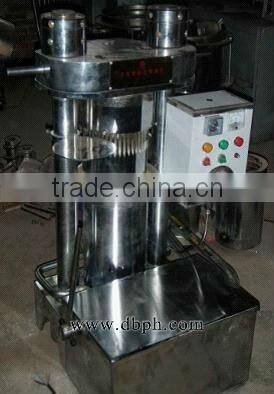

6Y-220 sesame oil extraction machine
--Introduction
- Automatic hydraulic oil presser for olive is the most advanced equipment and it is a best choice to instead of hand-operated worker currently.
- Auto hydraulic oil presser for olive is the easiest to operate, having the highest oil yield, the least to replace wearing parts among all the range of machines.
- As it can press less amount per time(2-8 kg / time), and processing shorter time(8-l2 minutes / time), particularly suitable for people from large cities to spend less money to buy real goods, rural towns can ensure fast processing of incoming (get their own fuel oil), known as assured oil.
- The main processing oil crops are: sesame, walnut, olive, pine nuts (peeled is best), almond and other high oil crops.
--Technical parameter as below:
1 | Type | 6YZ-220 |
2 | Size(L×W×H) | 870×780×1350mm |
3 | Weight | 850KG |
4 | KN Pressure | 1900KN |
5 | Max Work Pressure | 55Mpa |
6 | Heating Ring Power | 2KW |
7 | Heating Ring Control Temperature | 70°C-100°C |
8 | Sesame Feeding / Time | 7-8KG |
9 | Motor Power | Y901-4 1.5KW |
--Main technical specification:
Oil plant | Working hour per time | Weight/time | Capacity/10hrs | Output oil rate |
Sesame | 8-12 minutes | 7kg | 350-500kg | 42%-52% |
Peanut kernel | 8-12 minutes | 7kg | 350-450kg | 36%-42% |
Walnut kernel | 8-12 minutes | 5-6kg | 250-300kg | 50%-60% |
Pine nut kernel | 8-12 minutes | 5-7kg | 300-600kg | 45%-60% |
6Y-300D Hydraulic oil press
Technical Data:
Capacity: 250-300kg/h
Power: 380V-3kw*2
Size: 2380x1200x2100mm.
Weight: 4000kg.
Working most pressure: 55Mpa
6Y-320 Hydraulic oil press
Capacity: 100kg/h.
Power: 2.2kw
Electrical heating ring: 3kw
Size: 1300x1050x2200mm.
Weight: 2000kg.
Working most pressure: 55Mpa
6Y-220 Hydraulic oil press
Capacity: 50kg/h
Power: 1.5kw
Electrical heating ring: 2kw
Size: 750x650x1350mm.
Weight: 950kg.
Working most pressure: 55Mpa
