Specifications
1.Auto filling system2.Auto weighting balance
3.Auto belt conveyor
4.Auto sewing machine or Auto heat sealing machine
Description
The system is applied to quantitative automatic weighing, filling, kneading, accumulating weigh and times, stitching and conveying with manual assistant for powder, pellet material in the factory or other industry.
Suitable Materials
It is suitable for all kinds of Pellet material packaging:wood pellet, peanut shell pellet; animal feed pellet; fertilizer pellets ect

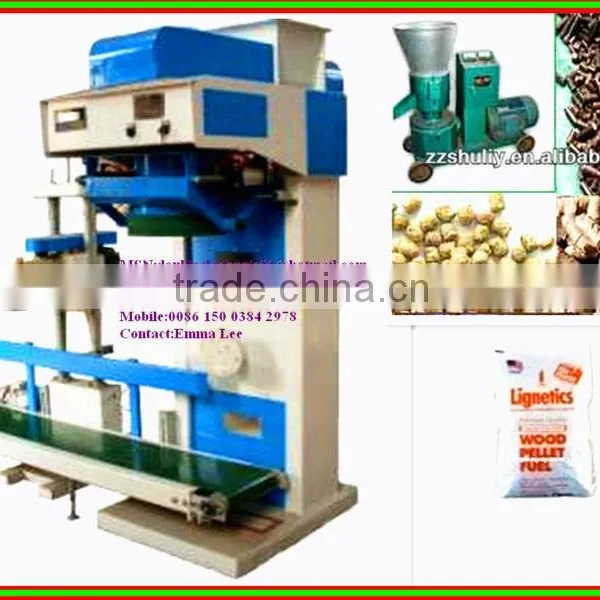

Main Structures
1.Auto filling system
2.Auto weighting balance
3.Auto belt conveyor
4.Electric control cabinet
5.Auto sewing machine or Auto heat sealing machine(Could be choose based on different bag materials)
Flowing Proces
Manual bag placing-->Auto filling-->Auto dosing&weighing-->Auto bag discharge-->Auto bag conveyor-->Auto bag stitching-->Next round
Features
1) Take three speeds feeding to guarantee the precision at min weight and the speed at max weight.
2) The head of bag stitching machine, conveyor, and hot sealing machine can rise and fall. And at the same time, the system is applied to sealing and convey with max and min bags.
3) There is shock absorbing device in weighing system; it could avoid the shock of other devices through floor and
tube to affect the weighing system.
4) There is good seal in system, and it has dust catcher and aspirator.
5) The is guide groves in conveyor roller and guide bars in conveyor belts to avoid cracks.
Function
1 .There is detecting device in system.
2 .Processes function of automatic modifying drop height.
3. Processes function of self-test, error pilot and fault code indication.
4.With the serial interfere to communicate the computer.
5.With five-figure password to control the accumulator in system.
6.Pre-set filling number in system.
Main Data
Model |
Description |
Dimensions (mm) |
Weight (kg) |
Speed |
ZCS-10 |
2-10kg/pc |
1500*800*2000 |
300 |
180-240pc/h at slow speed 260-330pc/h at middle speed 500-600pc/h at fast speed |
ZCS-25 |
15-25kg/pc |
2200*880*2300 |
500 |
|
ZCS-50 |
25-50kg/pc |
2300*900*2300 |
600 |
