Help CenterW27YPC-168 Hydraulic Heavy Duty Mandrel Pipe Bending Machine
Related Products
-
W27YPC-168 CE ISO Advanced Semi-auto Shipyard Pipe Bending MachineUS$ 1,000 - 10,000MOQ: 1 Piece -
Dexi W27YPC-114 Sell Well Rotary Draw Tube Bender MachineUS$ 1,000 - 10,000MOQ: 1 Piece
-
Dexi W27YPC-114 Sell Well Special Pipe Bending Machine for YachtUS$ 1,000 - 10,000MOQ: 1 Piece
-
W28K-89 Italy Tech CNC Metal Pipe Tube BenderUS$ 1,000 - 10,000MOQ: 1 Piece
-
W28K-89 Italy Tech CNC Metal I Beam Bending MachineUS$ 1,000 - 10,000MOQ: 1 Piece

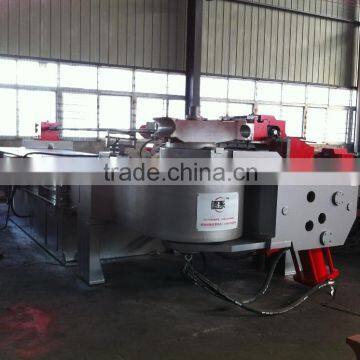

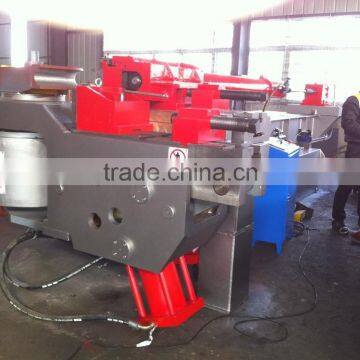

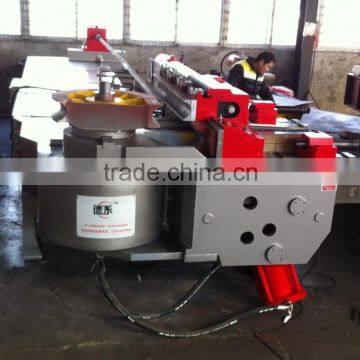

The Hydraulic Heavy duty Mandrel pipe Bending machine is hydraulic driven; high bend accuracy; The pipe and tube bending machine bend pipes and tubes no wrinkles, no cracks; low noise, easy operation; German technology, favorable price. It can also bend square tubes or pipes,flat bar,U or channel steel,H steel, round bar,angle bar steel, etc.
1. Fabricated from finest quality raw material, this range is very durable and features highly compact functions and robust designs.This machine is widely used for bending steel tubes & pipes& any profile. Machine frame can be extended according to customer's requirements.
2. PLC operation system, 10.4" touch screen. Bend data shown clearly; two kinds of operate modes:semi-auto & auto; easy and convenient operation.

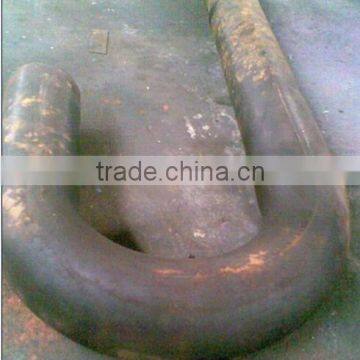

3. High bend accuracy, no wrinkles,no cracks,low ovality,low thinning rate. All bend accuracy is higher than national accuracy standard.
4.Heavy duty working function, esp. for thick wall pipes; capable of bending pipes with small bend radius(less than 3D) by using special structure(awarded national patent).
5.Capable of bending pipes,tubes and all kinds of profiles,eg. Angle bar,I beam,H beam, U beam, C beam, flat bar, square pipe, round bar, etc. by changing the bend die.
6.High bend accuracy, no wrinkles,no cracks,low ovality,low thinning rate. All bend accuracy is higher than national accuracy standard.
NO. |
Parameter Name |
Parameter |
Unit |
Remarks |
|
1 |
Max torque |
250000 |
N.M |
|
|
2 |
Max bend pipe od*wt |
Φ168×12 |
mm |
QS=250MPA(equal to 20 steel quenching state) |
|
3 |
Min bend pipe od |
Φ38 |
mm |
Special dies can bend smaller od pipe |
|
4 |
Min bend radius |
R100 |
mm |
|
|
5 |
Max bend radius |
R900 |
mm |
|
|
6 |
Max bend angle |
195 |
° |
||
7 |
Bend speed |
0.8 |
r/min |
Double-cylinder drive, reset fast, domestic initiative |
|
8 |
Gyration speed |
3.5 |
r/min |
|
|
9 |
Numbers of bend angles |
16 |
--- |
PLC provided by DELTA(Taiwan) |
|
10 |
Electric motor |
Model |
Y200L-4 |
--- |
|
Power |
22 |
KW |
|||
Rotating speed |
1450 |
r/min |
|||
11 |
Oil pressure |
Size |
YB-G60 |
|
|
Oil pressure |
21 |
MPa |
|
||
Flowing speed |
70 |
L /min |
|||
Working pressure |
16 |
MPa |
|||
12 |
Size |
7800*2800*1600 |
|
Weight(T) |
12 |

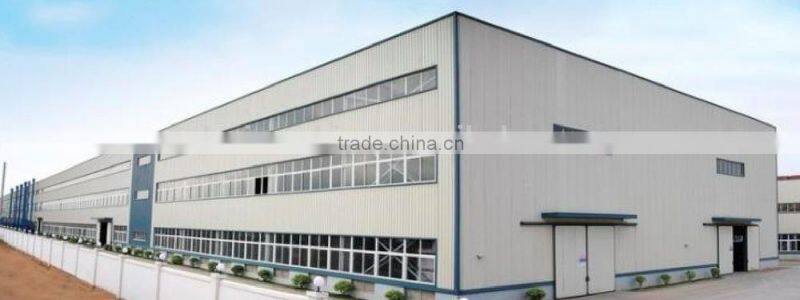

Company profile
Machine configuration
ISO CE SGS Certificates

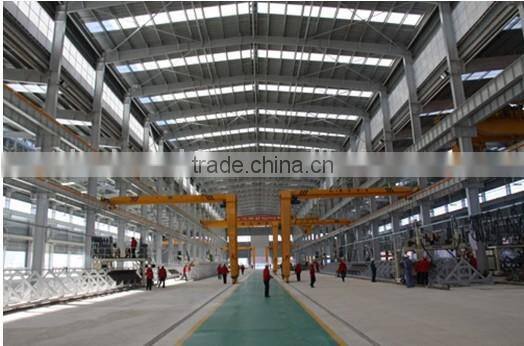

Workshop
Manufacturing process
Bend dies
