Specifications

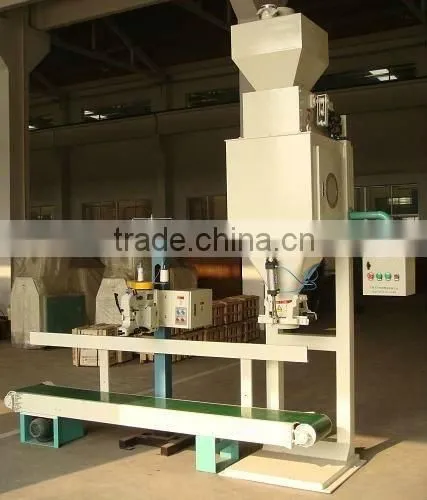

The sack machine is applied to automatically weighing,filling in powder and pellet material.Product Description
APPLICATION RANGE
The sack machine is applied to quantitative automatic weighing, filling, kneading, accumulating weigh and times, stitching and conveying with manual assistant for powder, pellet material in the factory or other industry.
II. FEATUPES
2.1) Take three speeds feeding to guarantee the precision at min weight and the speed at max weight.
2.2) The head of bag stitching machine, conveyor, and hot sealing machine can rise and fall. And at the same time, the system is applied to sealing and convey with max and min bags.
2.3 There is shock-absorbing device in weighing system; It could avoid the shock of other devices through floor and tube to affect the weighing system.
2.4) There is good seal in system, and it has dust catcher and aspirator.
2.5) There is guide groove in conveyor roller and guide bars in conveyor belts to avoid cracks.
III. FUNCTION
3.1 There is detecting device in system.
3.2 Processes function of automatic modifying drop height.
3.3 Processes function of self-test, error pilot and fault code indication.
3.4 With the serial interfere to communicate the computer.
3.5 With five-figure password to control the accumulator in system.
3.6 Pre-set filling number in system.
V. MAIN DATA:
Model: LCS-B25
Power: 0.75kw+0.37kw+0.37kw
Capacity: 25kgs/bag 180 bags/H
Net dimension: 1.2*0.72*2.5m
Gross dimension: 1.2*1.2*2.5m
Weight: 350kg (powder material) 450kg(granule material)
Capacity: 250bag/h 25kg/bag
Power: 0.75kw+0.37kw+0.37kw
Net dimension: 1.2*0.72*2.5m
Gross dimension: 1.2*1.2*2.5m
Weight:350kg (powder material) 450kg(granule material)
Model: LCS-B50
Capacity: 180bag/h 50kg/bag
Power: 0.75kw+0.37kw+0.37kw
Net dimension: 1.2*0.72*2.5m
Gross dimension: 1.2X1.2X2.5m
Weight: 350kg (powder material) 450kg(granule material)
Capacity: 250bag/h 50kg/bag
Power: 1.1kw+0.37kw+0.37kw
Net dimension: 1.2*0.72*2.5m
Gross dimension: 1.2*1.2*2.5m
Weight: 305kg (powder material) 450kg(granule material)
